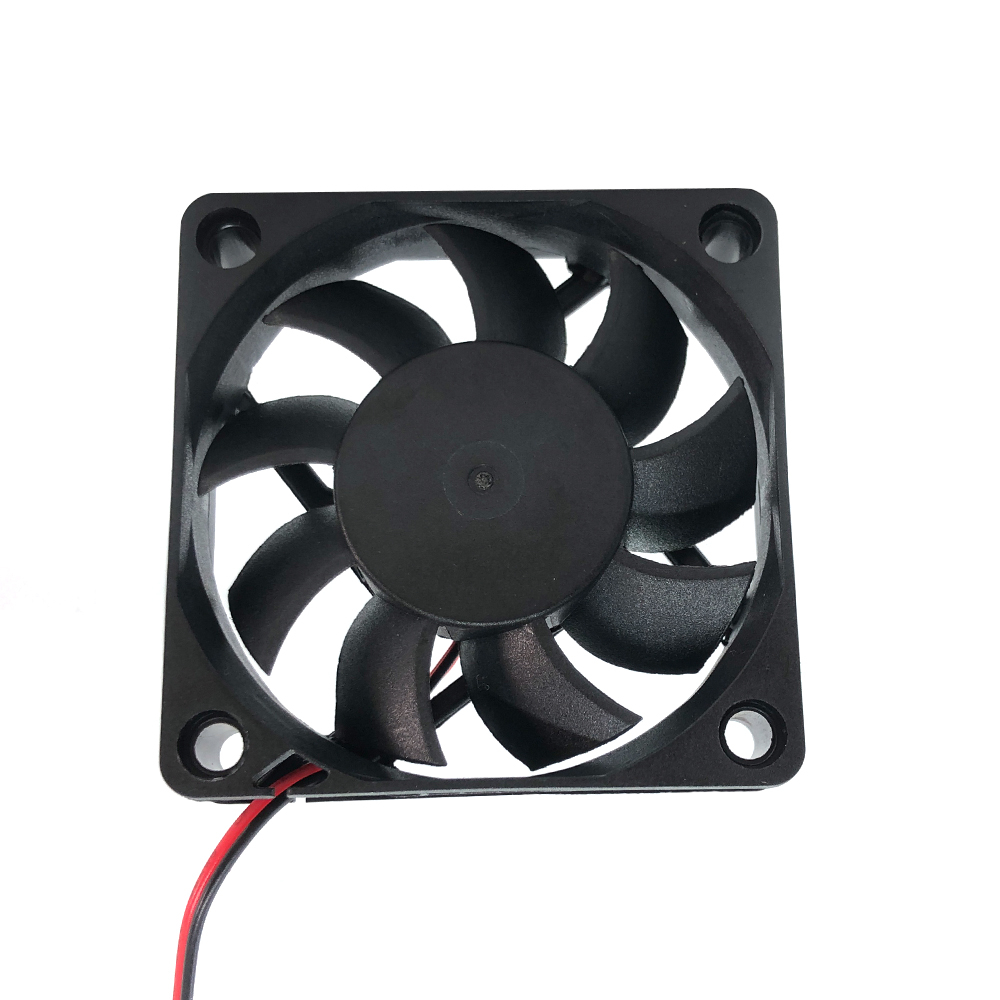

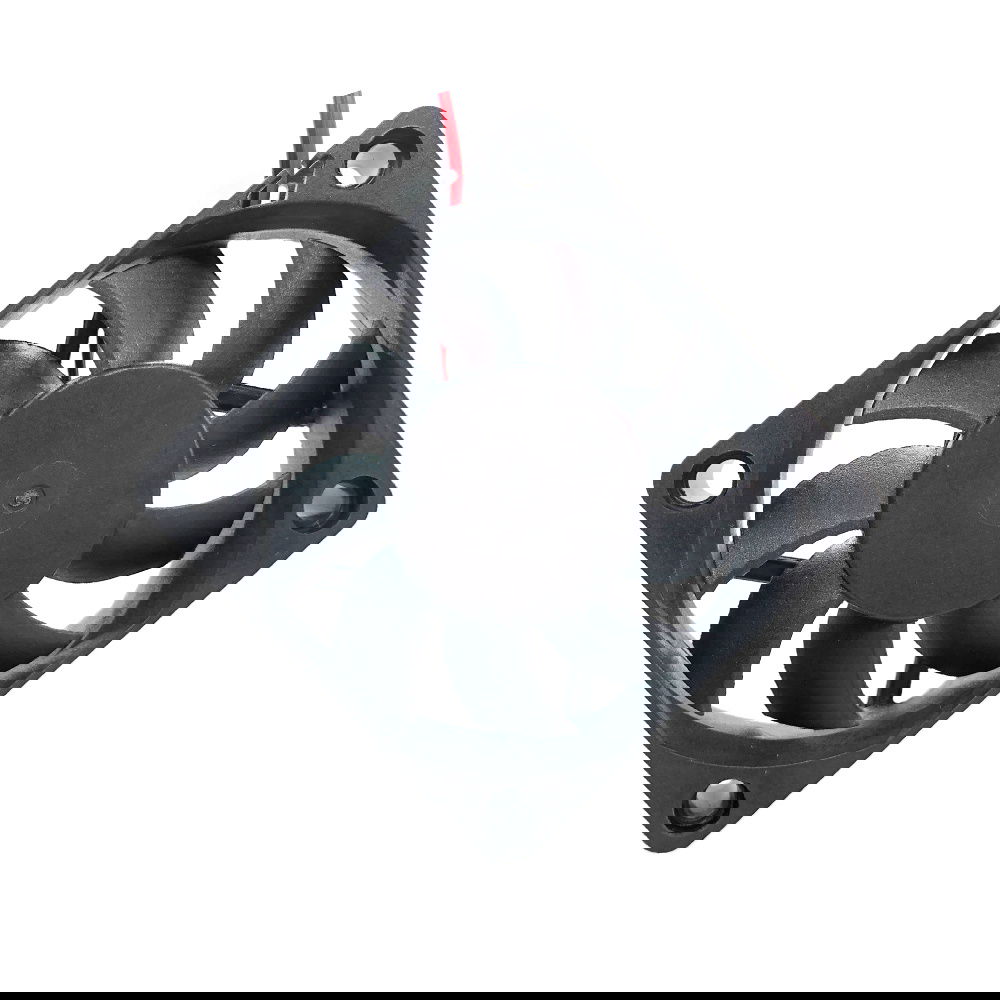

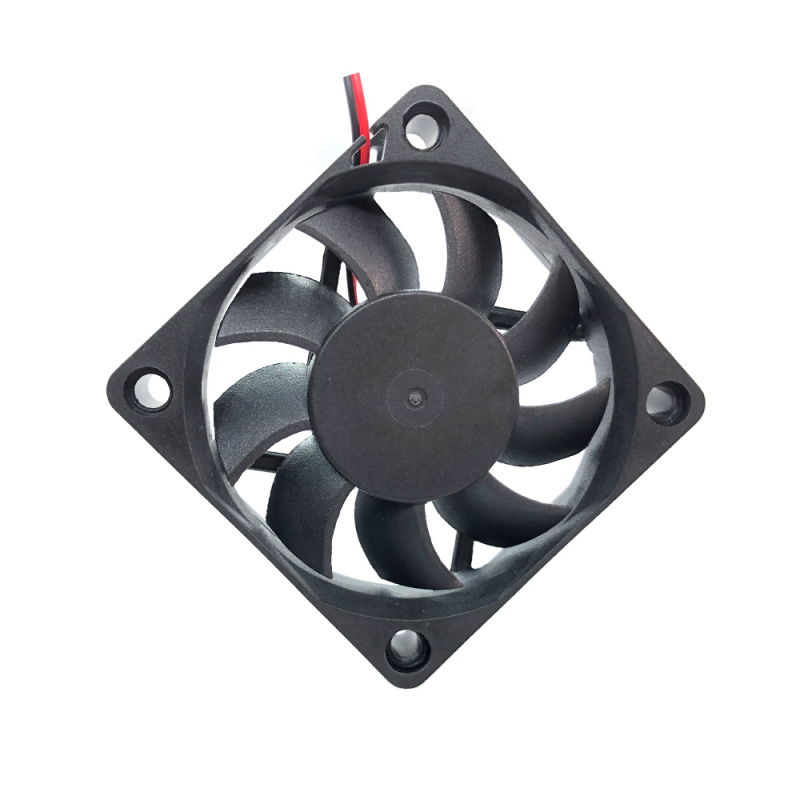

Product description: 12V fan 60 x 60 x 15 mm - Aimsoar AM007-Q
The AM007-Q is a powerful 60 x 60 x 15 mm axial fan designed to effectively cool electronics and components operating in 12V DC systems. Its robust design and stable operating parameters make it suitable for both professional and hobby applications. The fan operates at 3800 RPM ±5% , generating an airflow of 17 CFM , effectively removing heat from enclosed enclosures, power supplies, controllers, and 3D printer electronics.
Fan 12V 60 x 60 x 15 mm - Aimsoar AM007-Q.
The AM007-Q is a powerful axial fan with dimensions of 60 x 60 x 15 mm, designed for effective cooling of electronics and components.Practical applications
This fan is ideal for cooling 3D printers, control electronics, power supplies, converters, control cabinets, and DIY projects. Thanks to its double ball bearing, it's particularly recommended for continuous operation and applications requiring long life and stable airflow.
Technical specifications of the fan
- Type: axial fan
- Model: AM007-Q
- Power supply voltage: DC 12 V
- Rated current: 0.14 A
- Power: 1.68 W
- Rotation speed: 3800 RPM ±5%
- Air flow: 17 CFM
- Noise level: 27 dBA
- Bearing type: plain bearing
- Connector: 2-pin
- Operating temperature: -10°C to 60°C
- Storage conditions: up to 95% RH
- Estimated lifespan: over 30,000 hours
- Cable length: 30 cm

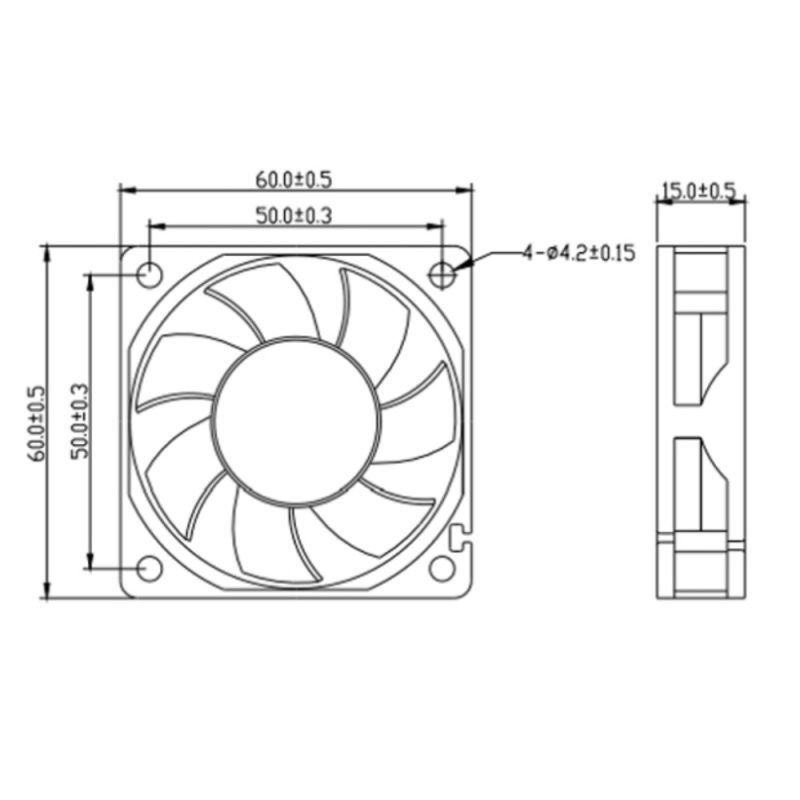

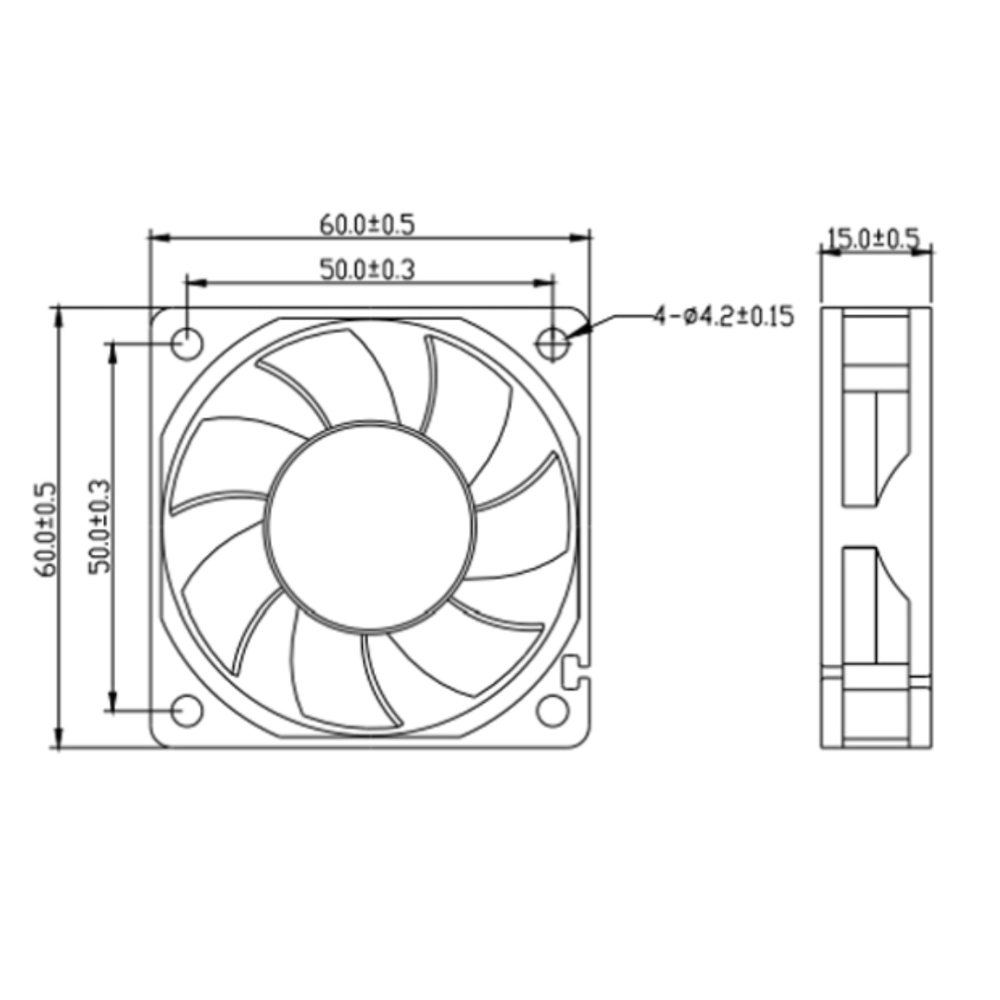

- Dimensions: 60 x 60 x 15 mm
