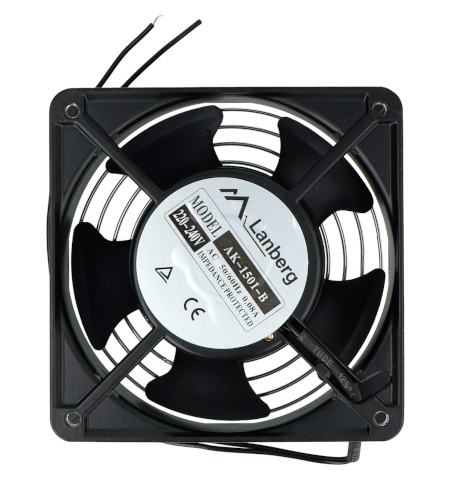

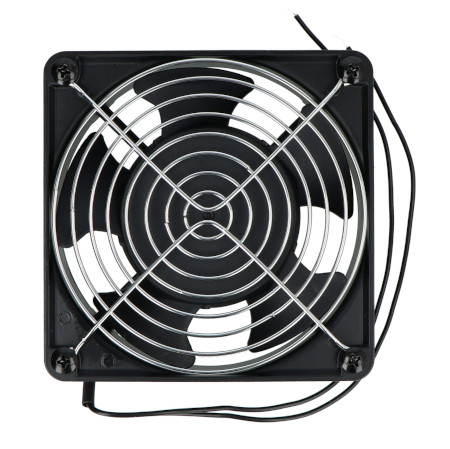

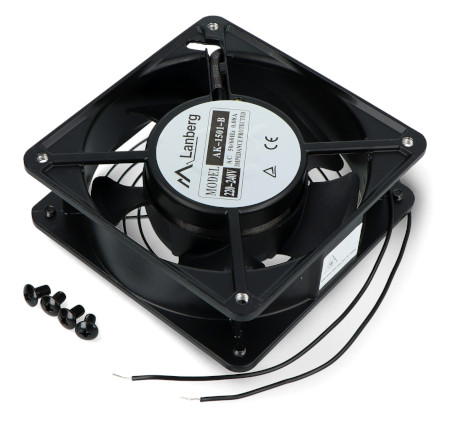

Product description: Fan 230 V 120 x 120 x 38 mm - for 10'' / 19'' rack server cabinets - Lanberg AK-1501-B6
The Lanberg AK-1501-B fan is a reliable component dedicated to 10'' and 19'' hanging cabinets , designed to ensure effective cooling of network equipment . With dimensions of 120 x 120 x 38 mm and a voltage of 230 V, the fan offers high efficiency with a power consumption of 19 W. The maximum rotation speed of 2500 RPM and air flow of 46 CFM guarantee optimal cooling, which is crucial for maintaining the appropriate operating temperature of devices in the cabinets. rack. The fan is equipped with a metal safety grill that protects against accidental contact with the rotating blades, and the ball bearing ensures long-term and failure-free operation. The noise level of 40 dB makes the device quiet, which minimizes acoustic disturbances in the workplace. An important aspect is the fact that the fan operates directly from the power supply , and the power cable does not have a plug. For this reason, installation should only be carried out by a qualified electrician with appropriate authorizations.
Fan 230 V 120 x 120 x 38 mm - for 10'' / 19'' rack server cabinets - Lanberg AK-1501-B6.
Fan dimensions 120 x 120 x 38 mm.
Special features of the fan
- High Cooling Efficiency: 46 CFM airflow ensures effective air circulation.
- Quiet operation: maximum speed of 2500 RPM with a noise level of 40 dB.
- Solid construction: the metal grill protects the fan against damage.
- Ball bearing: increases the reliability and service life of the device.
- Simple installation: designed for easy and intuitive installation in 10" and 19" rack cabinets.
- Safety: the device operates directly from the power supply, therefore the installation requires electrical qualifications.
- Compact dimensions: 120 x 120 x 38 mm.
Technical specifications of the fan for rack cabinets
- Type : fan
- Size : 10'' / 19''
- Voltage : 230V
- Power consumption : 19 W
- Maximum speed : 2500 RPM ± 5%
- Noise level : 40 dB
- Airflow : 46 CFM
- Protection : metal grill
- Direction of rotation : counterclockwise
- Bearing : ball
- Installation recommendations: Installation by an experienced electrician with appropriate qualifications
- Color : black (RAL9004)
- Weight: 0.48 kg
- Dimensions : 120 x 120 x 38 mm
Elements included in the set.
