Light intensity sensor LTR-303 - STEMMA QT / Qwiic - Adafruit 5610

Index: ADA-22201
Sensor with the LTR-303 system from Adafruit. It enables the measurement of light intensity in the range from 0.01 lux to 64000 lux with a measurement resolution of 16 bits .
Light intensity sensor LTR-303 - STEMMA QT / Qwiic - Adafruit 5610
€6.00
€4.88 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Product description: Light intensity sensor LTR-303 - STEMMA QT / Qwiic - Adafruit 5610

Sensor with the LTR-303 system from Adafruit . It allows the measurement of light intensity for both the infrared spectrum and visible light . The measurement ranges from 0.01 lux to 64,000 lux , and the measurement resolution is 16 bits . It uses the I2C bus to communicate with the connected module, thanks to which it can be integrated into any project. The module should be powered with the voltage from 3 V to 5 DC .

Product compatible with Arduino and Raspberry Pi!
The manufacturer has prepared a detailed user guide - check it out!

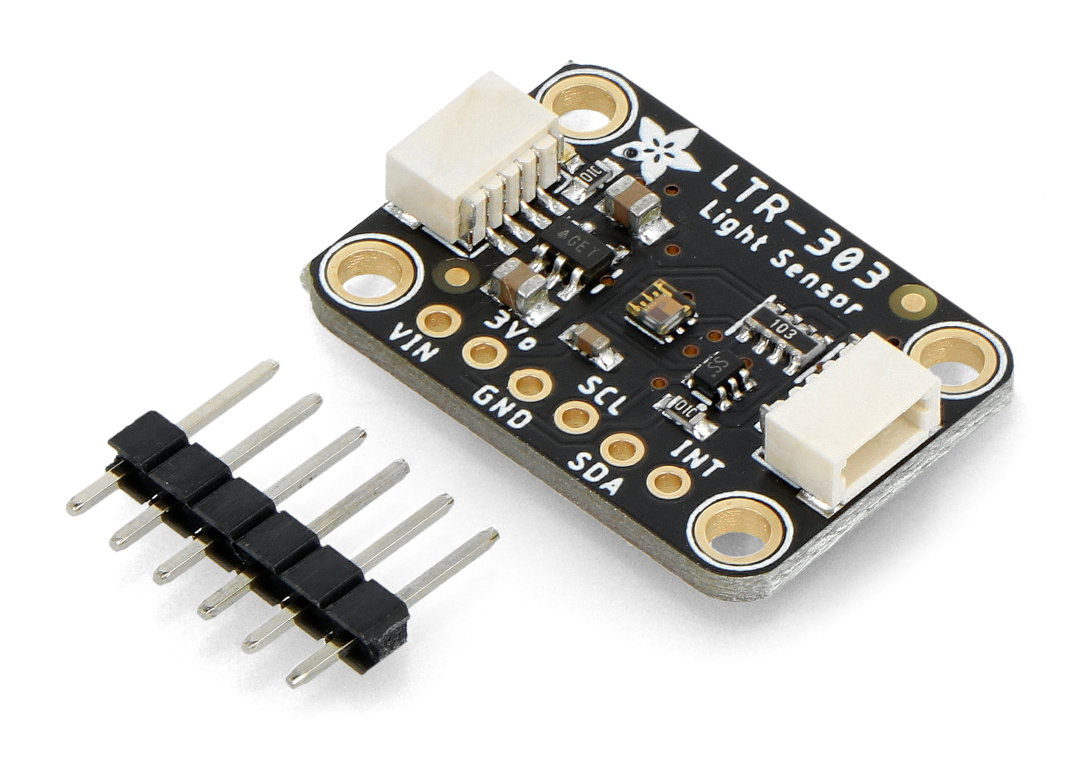

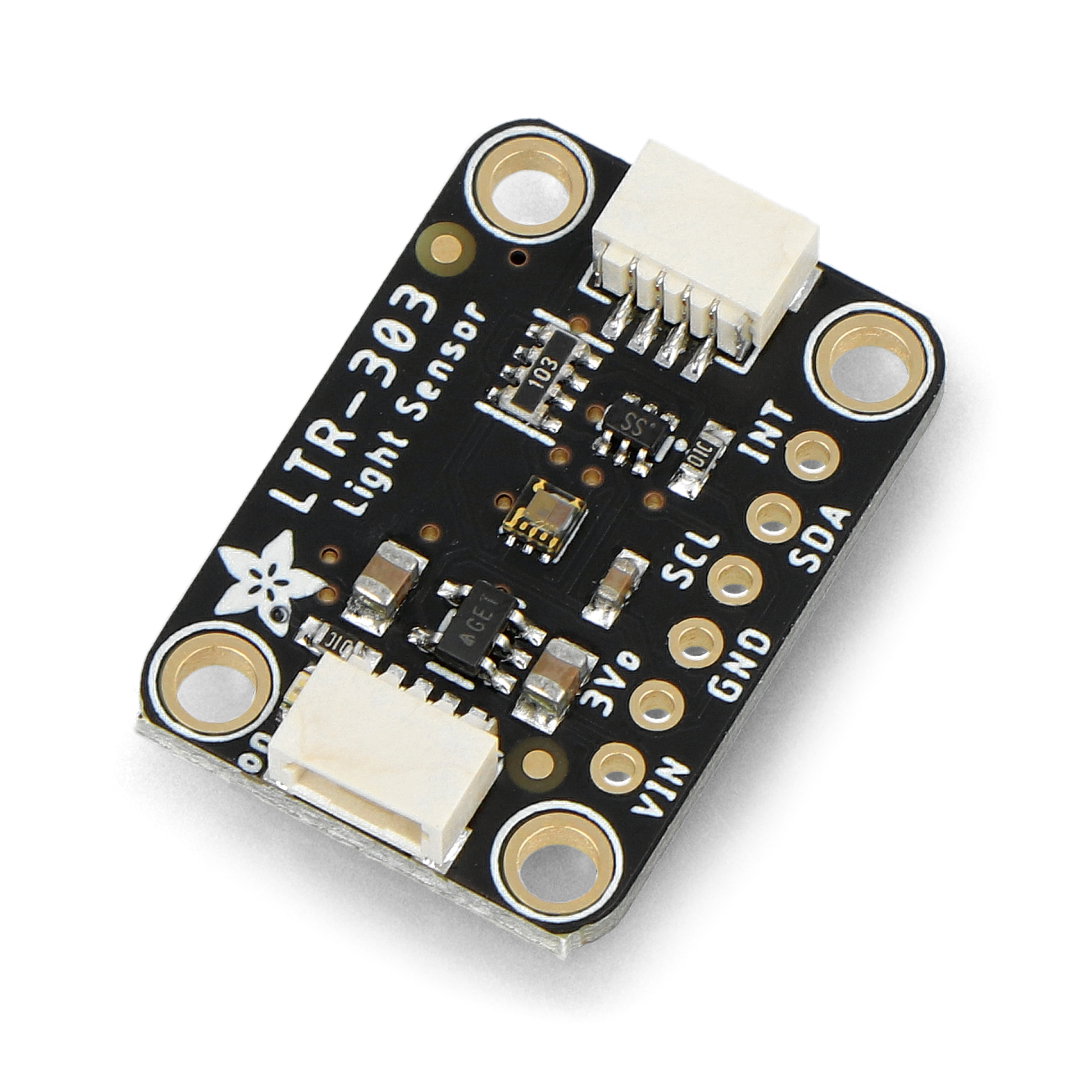

Light sensor LTR-303 - STEMMA QT / Qwiic - Adafruit 5610.

Light intensity sensor LTR-303 - STEMMA QT / Qwiic - Adafruit 5610.

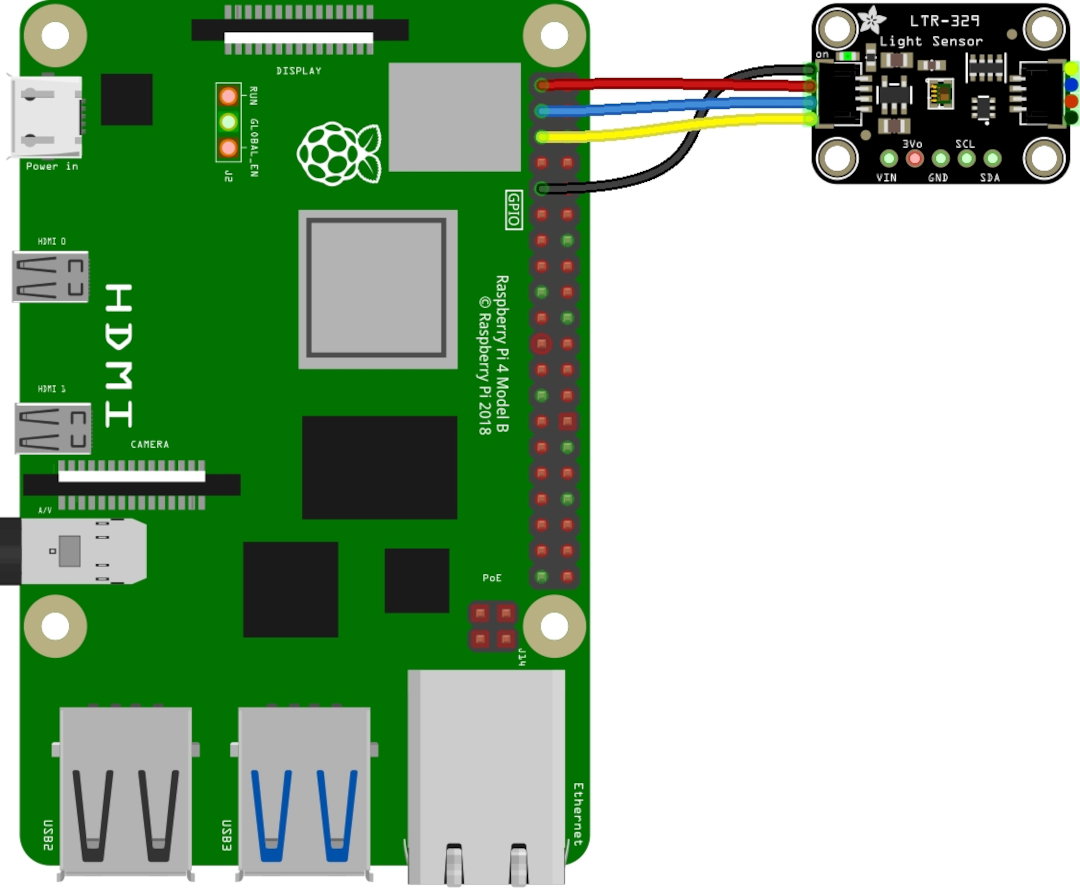

Connection diagram of the light sensor with Raspberry Pi (not included).
Light sensor connection diagram with Raspberry Pi (not included).

Description of the sensor pins from Adafruit

The light sensor can be connected in two ways. The first of them uses solder pads to which the goldpin bar with a raster of 2.54 mm (included in the set) should be soldered. Alternatively, the sensor also has a STEMMA QT / Qwiic connector , which allows for quick and convenient connection of the module, without the need to solder the elements.

  • VIN - power supply pin in the range from 3 V to 5 V DC
  • 3Vo - 3.3 V power supply pin
  • GND - system ground
  • SCL - pin of the clock line of the I2C communication interface
  • SDA - pin of the data line of the I2C communication interface
  • INT - main interrupt pin, can be configured according to individual needs

Sensor technical specification

  • Module type: light intensity sensor
  • Chip: LTR-303ALS-01
  • Signal type: digital
  • Measuring range: 0.01 lux to 64000 lux
  • Measurement resolution: 16 bits
  • Supply voltage: 3 V to 5 V DC
  • Communication interface: I2C bus
  • Interface address: 0x29
  • Built-in temperature compensation circuit
  • Low standby power consumption
  • Operating temperature range: -30°C to 70°C
  • It is resistant to the IR/UV light source
  • Board dimensions: 25.3 x 17.7 x 4.8 mm

Kit contents

  • Light intensity sensor LTR-303 - STEMMA QT / Qwiic - 1 piece
  • Goldpin strip 1x6 - raster 2.54 mm - 1 pcs

Components included in the set.

Components included in the set.

Package width 8 cm
Package height 9 cm
Package depth 1 cm
Package weight 0.004 kg
