Product description: UNI-T UT203+ clamp meter
Clamp meterfor DC and AC voltage up to 600 VandDC and AC current up to 400 A. In addition, the device allows the measurement ofresistance, capacity and frequencyvalues. UNI-T UT203+ has a built-in diode tester. It also provides a circuit continuity verification function. The meter is powered by twoAAA batteries,which are included in the set.The product also comes with measuring probes and a convenient case for safe storage.

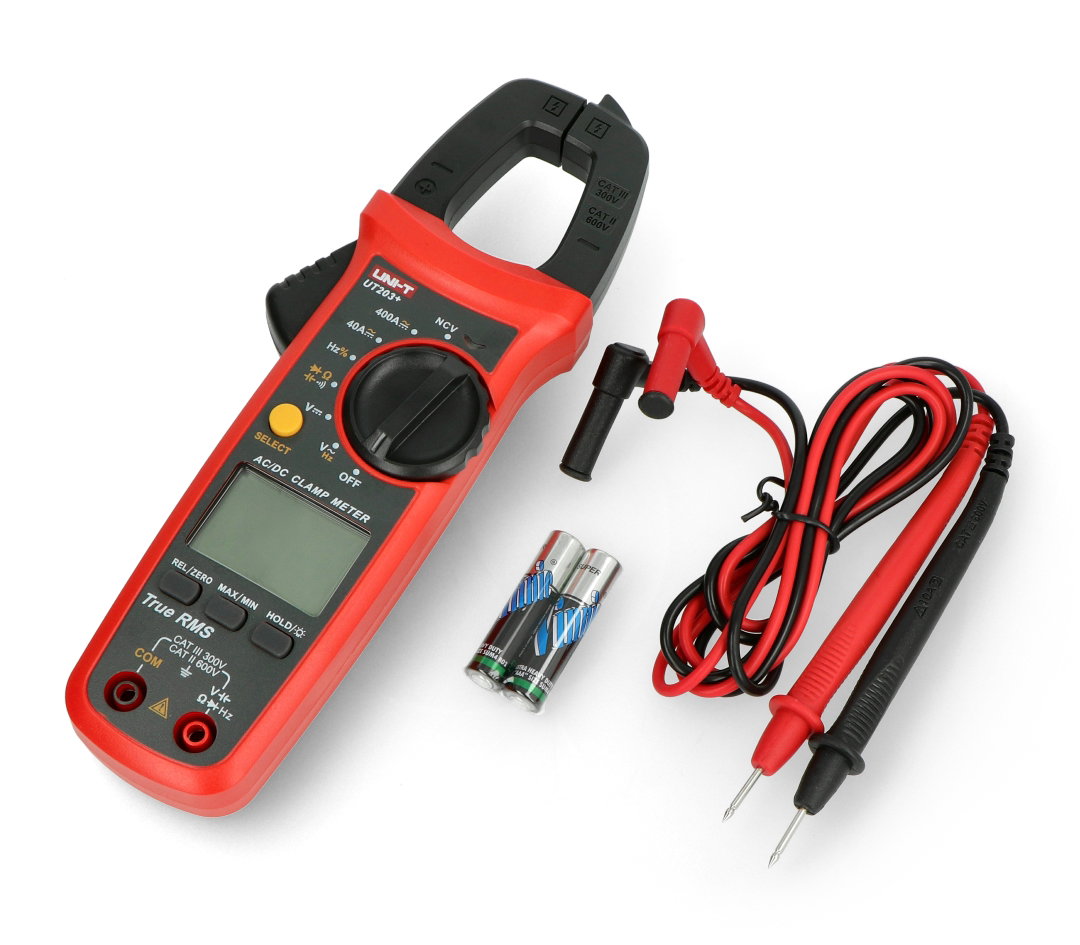

UNI-T UT203+ Clamp Meter.
Specification of the UNI-T UT203+ clamp meter
| Parameter | Scope |
|---|---|
| DC DC voltage | 400 mV / 4 V / 40 V / 400 V / 600 V |
| AC alternating voltage | 4 V / 40 V / 400 V / 600 V |
| DC DC | 40 A / 400 A |
| AC alternating current | 40A / 400 A |
| Resistance | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Capacity | 40 nF / 400 nF / 4 µF / 40 µF / 400µF / 4 mF /40 mF |
| Frequency | from 10 kHz to 10 MHz |
| Automatic range selection | Yes |
| Standby | No |
| Transistor tester | not |
| Diode tester | Yes |
| Battery tester | No |
| Display | LCD 37 x 25 mm |
| Power supply | 2 x AAA 1.5 V battery-included |
| Max. jaw opening | 28 mm |
| Dimensions | 215 x 63 x 36 mm |
| Mass | 235 g |
Additional functions of the UT203+ meter
- Automatic shutdown
- Relative measurement
- Support for True RMS
- NCV (Non Contact Voltage)
- Freeze last indication
- Maximum and minimum value indication function
- Instrument zeroing option
Set contents
- UNI-T UT203+ clamp meter
- Measuring probes
- Two AAA batteries
- Case
