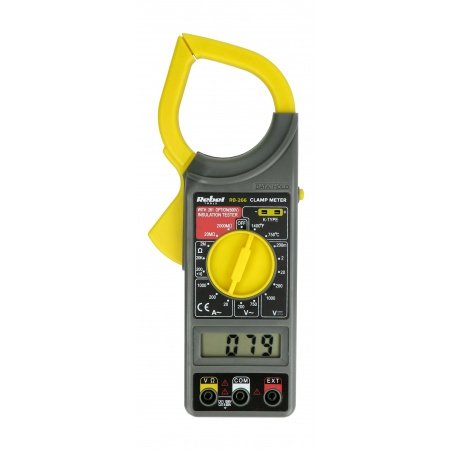

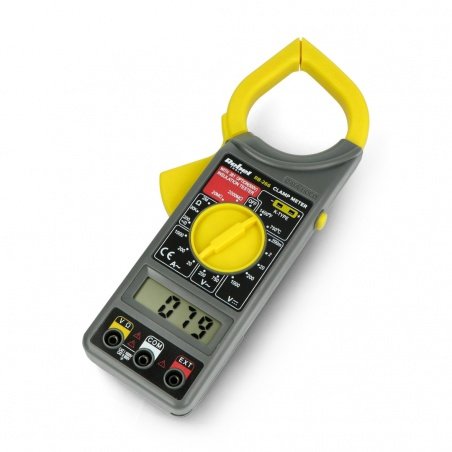

Product description: Rebel RB-266 Clamp meter
Improved version of the popularDT-266meter. It has additional measurement subrangesextendingits capabilities. Clamp meter is a tool with which we can measure current in the cable without having to cut it and connect to the circuit of ammeter. The product allows to measure AC current up to1000 A. With its help, it is also possible to carry out measurements such as: resistance measurement, DC voltage, AC voltage, temperature and circuit continuity testing. The meter has an additional function that allows to measure theinsulation of a wireup to2 GΩ. Another feature is theData Holdfunction that allows to freeze the indication displayed on the screen. All measurements, as well as indication of low battery power and reversed polarity are displayed on the45 x 12 mmscreen.

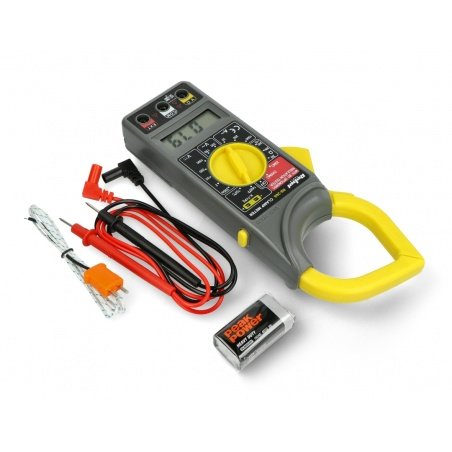

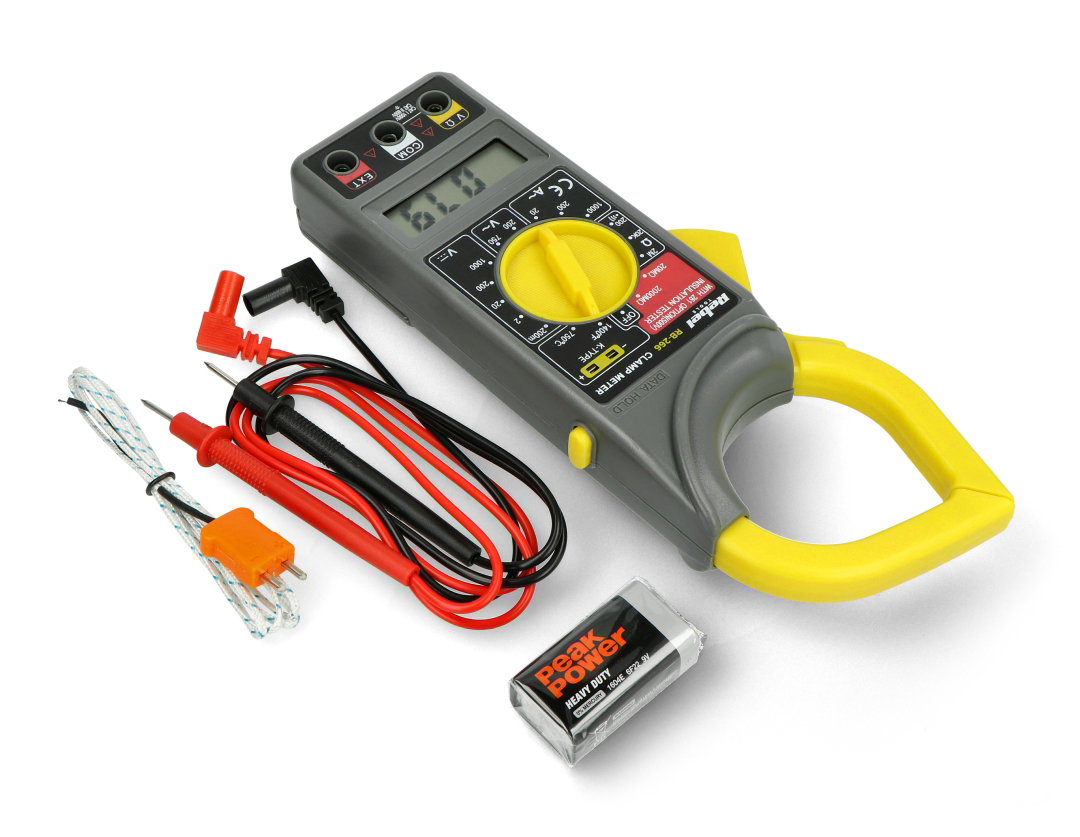

The set includes the necessary probes to work with the device.

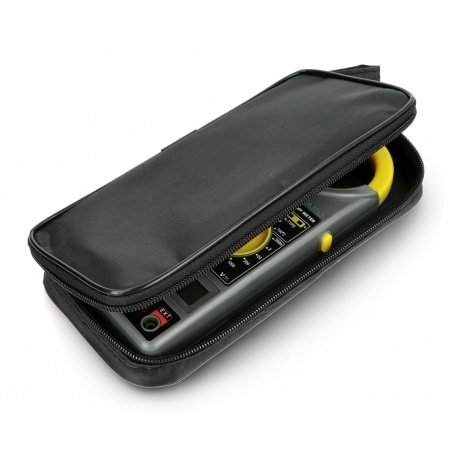

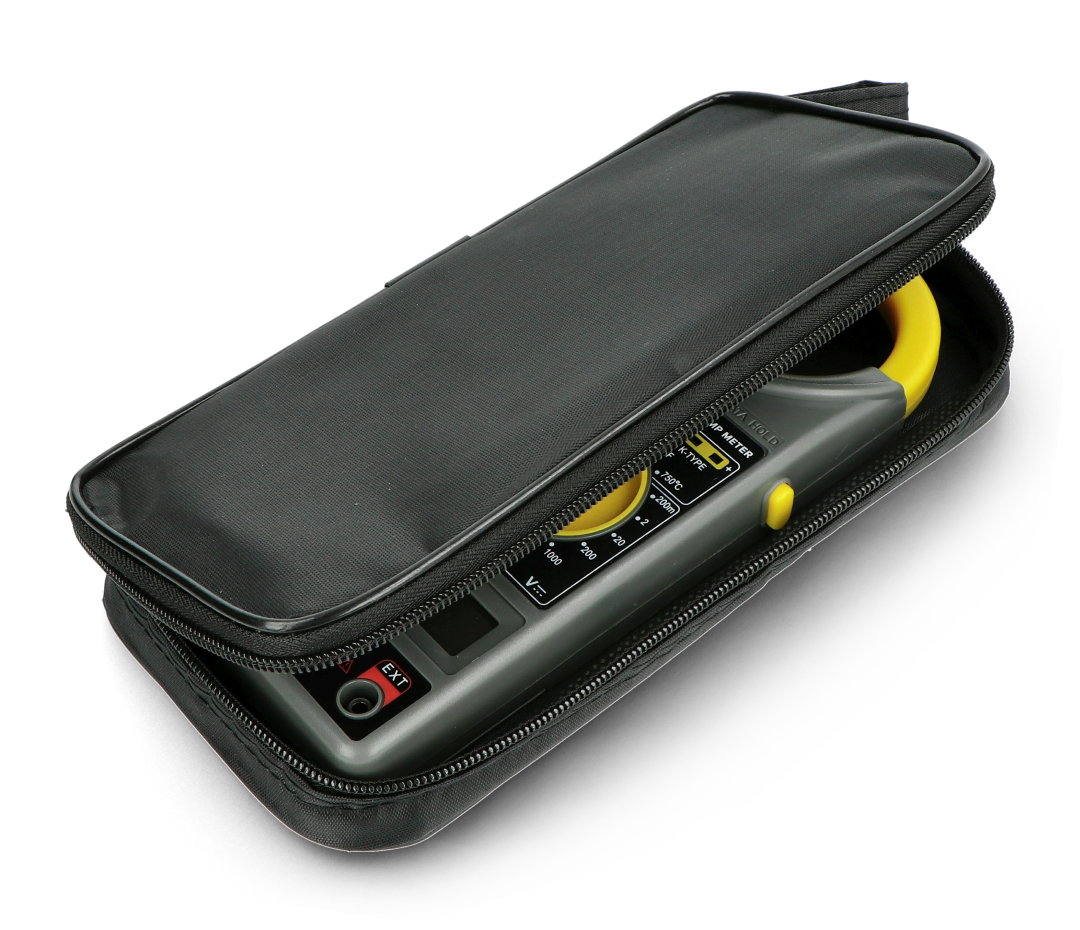

The product comes with a convenient pouch for the meter, which makes it easy to store and transport the whole set.
Main features of the meter
- AC current measurement up to 1000 A
- Overload protection up to 1200 A
- Manual change of the measuring range
- Data Hold function
- Automatic polarity detection
- Sampling frequency 2 times per second
- Connector to connect a K-type thermocouple
- Maximum displayable reading: 1999
- Power supply by means of 9 V battery (included)
Technical specifications
| Parameter | Range |
|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V |
| AC voltage | 200 V / 750 V |
| DC DC current | no |
| AC alternating current | 20 A / 200 A / 1000 A |
| Resistance | 200 Ω / 20 kΩ / 2 MΩ |
| Capacitance | no |
| Frequency | no |
| Automatic range selection | no |
| Standby state | no |
| Transistor tester | no |
| Circuit continuity tester | yes |
| Temperature measurement | yes |
| Diode tester | no |
| Battery tester | no |
| Insulation tester | yes,20 MΩ / 2000 MΩ |
| Display | LCD 45 x 12 mm |
| Power supply | battery 9 V - included in delivery |
| Max. jaw opening | 53 mm |
| Dimensions | 215 x 63 x 36 mm |
| Weight | 235 g |
