Product description: FNIRSI DMC-100 clamp meter
The FNIRSI DMC-100 is a multifunction clamp multimeter designed for precise electrical measurements in home, industrial, and automotive installations. It measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature . True RMS technology ensures high measurement accuracy, even for non-sinusoidal waveforms. The 25 mm wide, extendable jaws allow for convenient connection of wires without breaking the circuit. The DMC-100 is equipped with a 2" color TFT screen with a resolution of 240 x 320 px, adjustable brightness , and waveform display. The meter supports three operating modes : standard measurement, waveform analysis, and power measurement with simultaneous voltage and current display. NCV and LIVE functions enable non-contact voltage detection and phase conductor identification. A built-in 1500 mAh battery charged via USB Type-C ensures long operating time in the field and in the workshop.

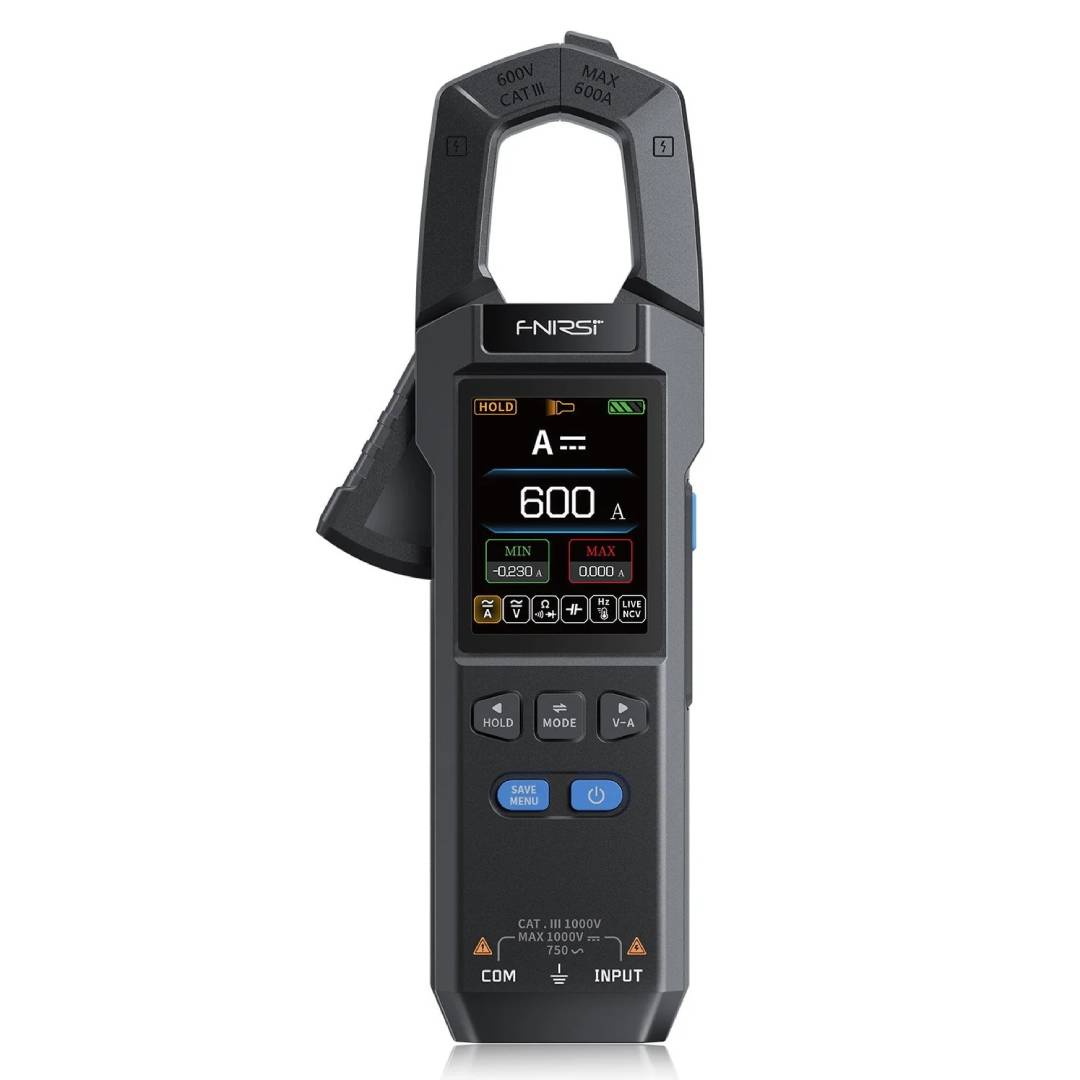

FNIRSI DMC-100 clamp meter.
FNIRSI DMC-100 enables simultaneous measurement of voltage and current, thus automatically calculating the power of the tested circuit.
Main features of the FNIRSI DMC-100 clamp meter
- True RMS 10000 counts measurement - high accuracy of AC/DC voltage and current measurements
- Wide measurement range - supports voltage up to 750 V and current up to 600 A
- 2'' color TFT display - clear presentation of results and waveforms
- Three operating modes - standard measurement, waveform analysis and power measurement
- AC/DC measurement - supports direct and alternating voltage and current
- NCV and LIVE function - non-contact voltage detection and phase wire identification
- Temperature measurement - range from -55°C to 1300°C
- Data logging - recording of up to 30 measurement sets
- 1500 mAh battery - long operating time and charging via USB Type-C
- Built-in LED flashlight - convenient work in dimly lit places
- Auto power off - saves energy when idle
- Firmware update - the ability to expand the functionality of the device

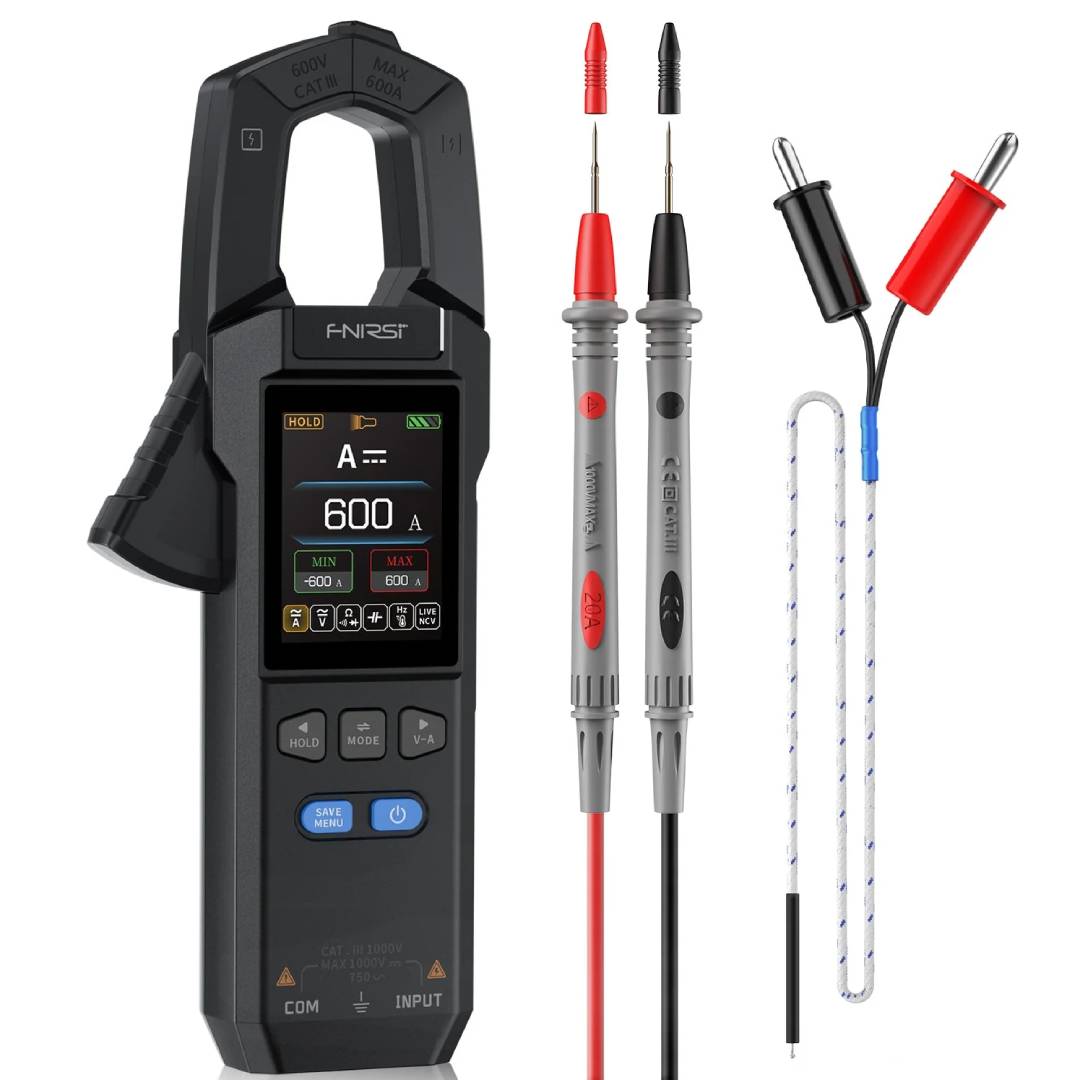

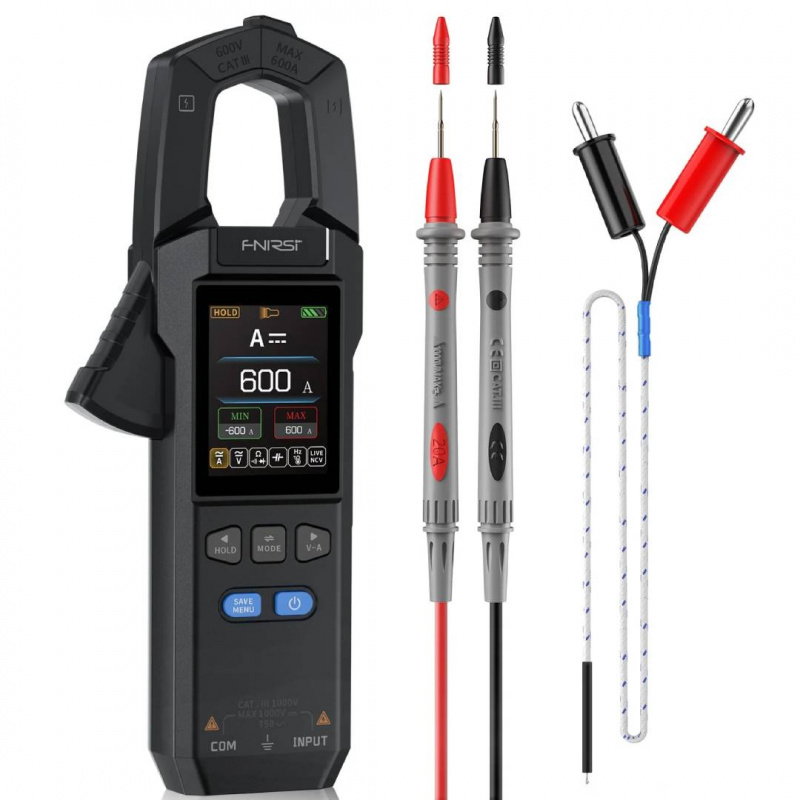

Contents of the set
- FNIRSI DMC-100 clamp multimeter
- USB Type-C cable
- Measuring cables
- Temperature probe

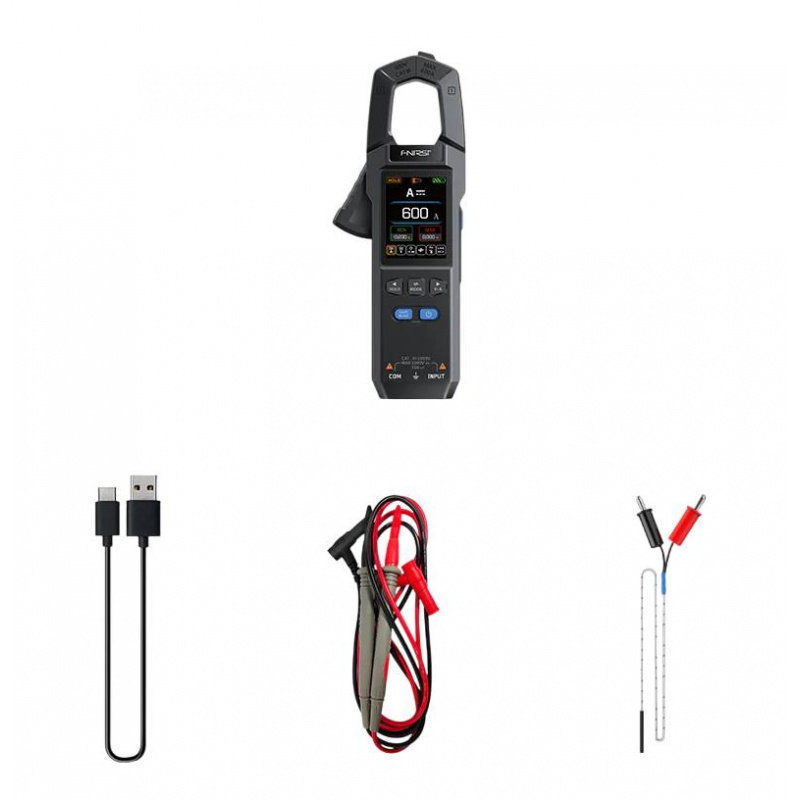

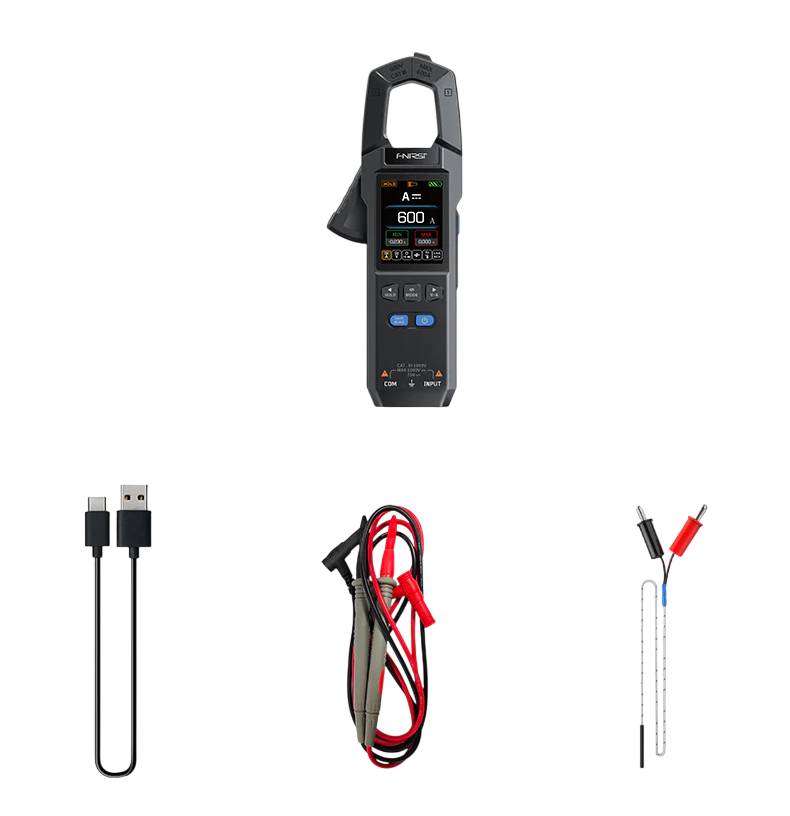

Elements included in the set.
| Measurement parameter | Range | Accuracy |
|---|---|---|
| DC voltage | from 9.999 V to 999.9 V | ±(0.5% + 3) |
| AC voltage | from 9.999 V to 750 V | ±(1% + 3) |
| DC current | from 99.99 A to 600 A | ±(2.5% + 10) |
| AC current | from 99.99 A to 600 A | ±(2.5% + 10) |
| Resistance | from 999.9 Ω to 99.99 MΩ | ±(1.5% + 3) |
| Capacity | from 9.999 nF to 99.99 mF | ±(2% + 5) / ±(5% + 20) |
| Frequency | from 9.999 Hz to 9.999 MHz | ±(0.1% + 2) |
| Temperature | from -55°C to 1300°C | ±(2.5% + 5) |
| Diode measurement | supported | - |
| Continuity test | supported | - |
| NCV | supported | - |
| LIVE | supported | - |
| Technical specifications of the FNIRSI DMC-100 meter | |
|---|---|
| Number of counts | 10000 counts |
| Display | 2'' TFT color |
| Screen resolution | 240 x 320 px |
| Power supply | 3.7V lithium battery |
| Battery capacity | 1500 mAh |
| Landing | USB Type-C 5V/1A |
| Maximum jaw opening | 25 mm |
| Operating modes | standard measurement / waveform analysis / power measurement |
| NCV function | Yes |
| Diode test | Yes |
| Continuity test | Yes |
| LIVE phase wire identification | Yes |
| Brightness adjustment | 10 levels |
| Automatic shutdown | OFF / 5 min / 15 min / 30 min |
| Supported languages | Chinese / English |
| Dimensions | 193 x 74 x 32 mm |
| Mass | 194 g |
