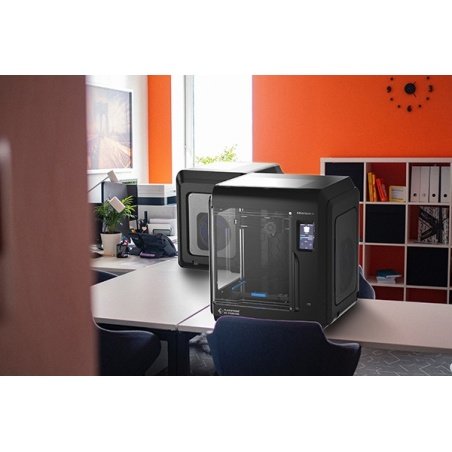

Product description: 3D Printer - Flashforge Adventurer 4
FDM3D printer from the Adventurer product line, manufactured by Flashforge. The device has a fully enclosed working area of 220 x 200 x 250 mm, which allows you to create medium-sized 3D models. The Adventurer 4 does not require complicated leveling of the heating table. The product has a number of features that make printing easier. The built-in camera allows you to remotely track the progress of your work, without the need for additional solutions. A HEPA13 filter traps unwanted microparticles during the application of successive layers. Adventurer 4 also offers simple replacement of modular, dedicated nozzles.
Simple nozzle replacement
The design of the Adventurer 4 printhead allows for quick and hassle-free replacement of the dedicated nozzle. The detachable nozzle cap with patented clip allows for replacement in seconds. This operation does not require any additional tools.
The standard printer set includes a nozzle with a diameter of 0.4 mm and a maximum working temperature of 240°C (it takes only 60 seconds to heat up to 200°C). Additionally, the manufacturer offers nozzles with the following parameters: 0.3 mm / 240°C and 0.6 mm / 265°C.
Magnetic overlay on the heating table
The maximum temperature of the heating table in the Adventurer 4 model is 110°C. On its surface there is a magnetic overlay to ensure good adhesion of the first print layers. The overlay's edge grips allow the overlay to be easily bent to remove the finished model.
Advanced work platform design
The high-precision design of the work platform avoids a complicated leveling process. The lower part of the Adventurer 4 structural frame was made using CNC technology. An 8 mm thick aluminium plate ensures an almost perfect flatness of the heating table surface. The shape tolerance here is just 0.15 mm. All these elements ensure perfect quality of the first printing layer. They also allow saving time needed for calibration of the device.
Other device functions
- Restart function after a power failure
- Felt sensor detects when there is no material to print
- Built-in HD camera for print preview
- Remote print control over WiFi or Ethernet
- New version of FlashPrint software supports online control of multiple devices
- Power saving (standby) mode
- Compatible with 1kg spools (no extra adapter required)
- HEPA13 air filter
Specification 3D Printer - Flashforge Adventurer 4
|Supply voltage:||100 V to 240 V AC / 24 V DC|
|Nozzle diameter:||Standard: 0.4 mm (optional 0.3 mm or 0.6 mm)|
|Supported filament:||PLA, PETG, PLA-CF, PETG-CF|
|Filament diameter:||1.75 mm|
|Print thickness:||0.1 mm to 0.4 mm|
|Printing accuracy:||0.1 mm|
|XY axis positioning accuracy:||0.011 mm|
|Z axis positioning accuracy:||0.0025 mm|
|Printing speed||10 to 150 mm/s|
|Operating mode:||USB, WiFi, Ethernet|
|Compatible software:||FlashPrint, Cura|
|Input file format:||.3MF, .STL, .OBJ, .FPP, .BMP, .PNG, .JPG, .JPEG|
|Output file format:||.GX, .G File|
|Print size:||220 x 200 x 250 mm|
|Printer dimensions:||500 x 470 x 540 mm|
