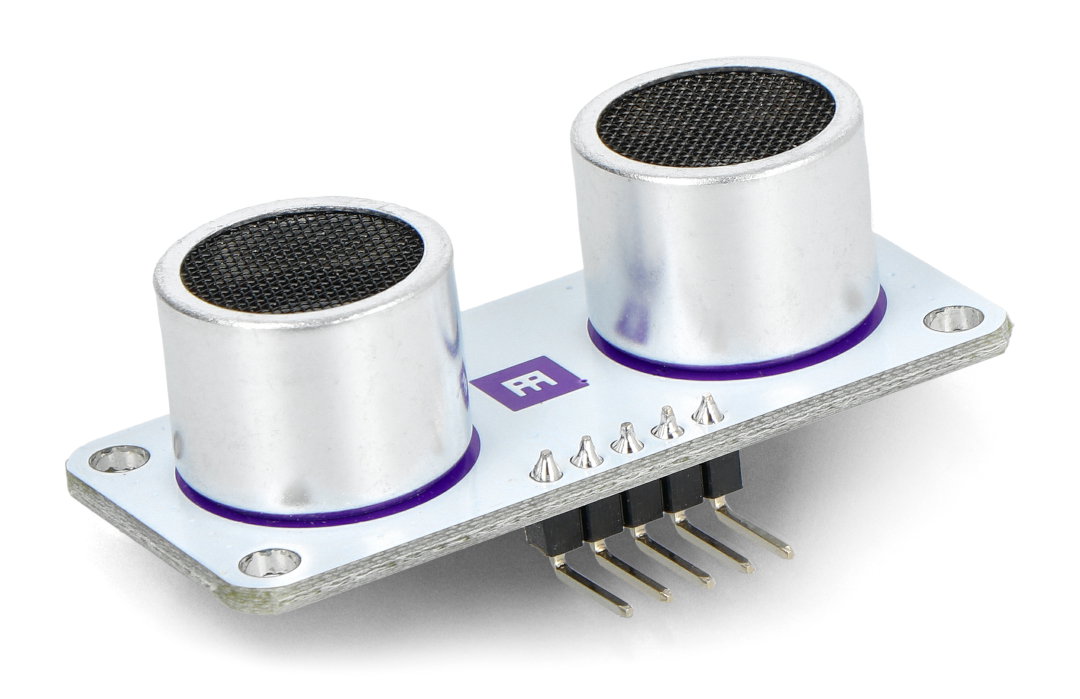

Velleman WPSE306N ultrasonic distance sensor 3-550cm

Index: VEL-13022 EAN: 5410329735777
5
(1)
Ask a question

Ultrasonic sensor operating in the range from 3 cm to 550 cm. It is powered with the voltage from 4,5 V to 5 VDC. The output is a signal whose duration is proportional to the measured distance.

Velleman WPSE306N ultrasonic distance sensor 3-550cm
€7.50
€6.10 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Velleman
Compatibility: Arduino

Description

Ultrasonic sensor operating in the range from 3 cm to 550 cm. It is powered with the voltage from 4,5 V to 5 VDC. The output is a signal whose duration is proportional to the measured distance.

Specification

  • Supply voltage: 4,5 V to 5 VDC
  • Supply current: 50 mA to 100 mA
  • Measuring range: from 3 cm to 550 cm
  • Output: frequency signal
  • Working frequency: 40 kHz
  • Measuring resolution: 0.3 cm
  • Angle measurement: 15 °
  • The format of the pins triggering the pulse: 10 µS
  • Dimensions: 49 x 22 x 19 mm

Voltage to 4.5 V
Voltage from 5.5 V
Interface Digital I / O
Sensor - distance to 450 cm
Sensor - distance from 2.0 cm
Package width 8 cm
Package height 4 cm
Package depth 12.5 cm
Package weight 0.029 kg
