TMP117 - I2C temperature sensor - high accuracy - STEMMA QT / Qwiic - Adafruit 4821

Index: ADA-18997

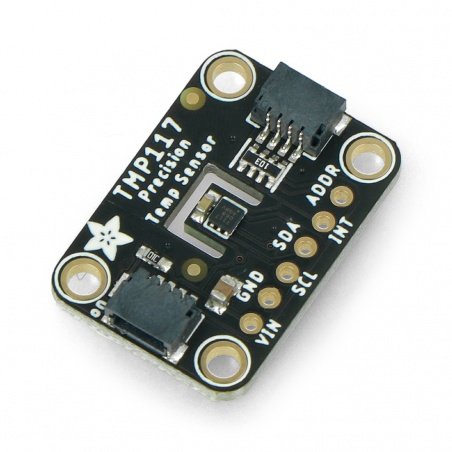

A high precision temperature sensor from Adafruit. It has an embedded TMP117 chip that provides accurate measurement in the range of -55°C to 155°C, with an accuracy of 0.1°C to 0.3°C (depending on the temperature value). It is powered from 3 V to 5 V DC. The sensor is compatible with Arduino and Raspberry Pi, and can be programmed using the Arduino IDE environment or using the Python language.
€14.94
€12.14 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino Raspberry Pi

Product description: TMP117 - I2C temperature sensor - high precision - STEMMA QT / Qwiic - Adafruit 4821

High precisiontemperature sensorfrom Adafruit. It has an embeddedTMP117chip that provides accurate measurement in the range of-55°C to 155°C, with an accuracy of0.1°C to 0.3°C(depending on the temperature value). It is powered from 3 V to 5 V DC. The sensor is compatible with Arduino and Raspberry Pi, it can be programmed usingArduino IDEenvironment or usingPythonlanguage.

Product compatible with Arduino and Raspberry Pi

Detaileduser guideand library for ArduinoIDEand Pythonlanguageare available on manufacturer's website.

Schemat podłączenia czujnika temperatury od Adafruit z wykorzystaniem złącza STEMMA QT / Qwiic oraz płytki Metro.

Connection diagram of temperature sensor from Adafruit using STEMMA QT / Qwiic connector andMetro board.

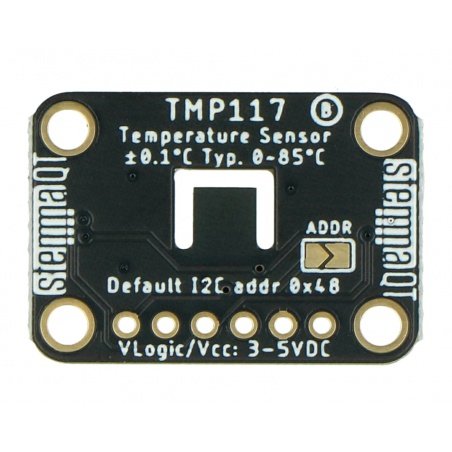

Pinouts of TMP117 temperature sensor

The sensor can be connected in two ways. The first is via the solder pads, to which agoldpinstrip with a 2.54 mm pitch must be soldered. Alternatively, the sensor is also equipped withSTEMMA QT /Qwiicconnector, which allows for quick and convenient connection of the module without soldering. The picture on the right shows how to connect the sensor using STEMMA QT / Qwiic connector and Metro board -equivalent of popular Arduino board.

  • VCC- power supply pin from 3V to 5V DC
  • GND- system ground pin
  • SCL- I2C logic pin, communication interface clock line pin
  • SDA- I2C logic pin, communication interface data line pin
  • ADDR/AD0jumper - configurable I2C address pin, allows to change interface address from 0x48 to 0x49
  • INT- interrupt pin

Technical specification of temperature sensor from Adafruit

  • Module: high precision temperature sensor
  • Chip: TMP117
  • Compatible with Arduino and Raspberry Pi
  • Supply voltage: from 3 V to 5 V
  • Temperature measurement range: from -55°C to 155°C
  • Measurement accuracy:
    • ± 0.1°C (maximum) from -20°C to +50°C
    • ± 0.15°C (maximum) from -40°C to +70°C
    • ± 0.2°C (maximum) from -40°C to +100°C
    • ± 0.25°C (maximum) from -55°C to +125°C
    • ± 0.3°C (maximum) from -55°C to +150°C
  • Resolution: 16 bits
  • Communication interface: I2C
  • Interface address: 0x48
  • Connectors:
    • STEMMA QT / Qwiic
    • Soldering fields for goldpin leads
  • Dimensions: 25.5 x 17.7 x 4.6 mm

Set contents

  • TMP117 temperature sensor
  • Goldpin strip - 2.54 mm pitch

Sensor is equipped with TMP117 chip which provides high precision measurement.
Interface I2C
Sensor - type temperature
