IO extension in the form of an expansion module, which is equipped with two microBUS inputs, two Seeed Grove inputs and one SparkFun input with Qwiic connector. Allows for expansion of WisBlock projects with additional peripherals, including those outside the series. It allows integration of sensors produced by Mikroe, SparkFun, SeeedStudio and others. The extension is compatible with WisBlock Base Board and WisBlock Core development modules.
€7.63
€6.20 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Rak Wireless

Product description: WisBlock IO extension module - Rak Wireless RAK1920

IOextension module equipped with twomicroBUSinputs, twoSeeed Groveinputs and oneSparkFuninput with Qwiic connector. Allows for expansion of WisBlock projects with additionalperipherals, including those from outside the series. It allows integration of sensors produced by Mikroe, SparkFun, SeeedStudio and others. The extension is compatible with WisBlockBase Boardand WisBlockCoredevelopment modules.

There is auser guideon the manufacturer's website, which contains detaileddescription of eachpin and pinout.

Rozszerzenie WisBlock IO do systemu WisBlock.

WisBlock IO extension for WisBlock system.

WisBlock System Composition.

WisBlock Series

TheWisBlockseries modules are a solution created byRak Wireless. They allow to createcomplex IoT projects, which can be used both in advanced scenarios and basic projects. The WisBlock system includes: WisBlockBase Board, WisBlockCoredeveloper module, WisBlockSensorsand WisBlockIO expansionmodules. They are used not only for rapid deployment of engineering prototypes, but are also designed to create massive applications ready for industrial deployment.

WisBlock IO Extensions

WisBlock IOmodules allow to extend designs with additional interfaces, sensors and communication extensions. They also enable connection of modules outside of the WisBlock series. These include keypads, buttons and displays, third party sensors (e.g. Seeed Grove, SparkFun Qwiic, 1 Click!), communication modules with LTE NB-IoT, WiFi, Bluetooth and NFC or alternative PoE power supplies. They require connection to theWisBlock Coredeveloper module andWisBlock Base Boardto work properly. They are assembled according to the schematic shown in the photo opposite. Before starting, make sure that the module isproperly attached.

Sposób montażu modułu z płytką bazową.


Way of mounting the module with base board.

Moduł wyposażony w dwa wejścia microBUS, dwa wejścia Seeed Grove oraz jedno wejście SparkFun ze złaczem Qwiic.

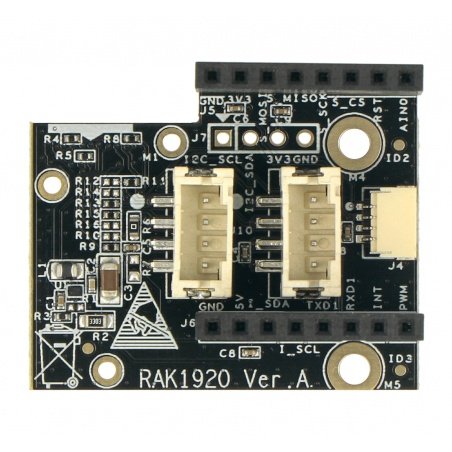

The module has two microBUS inputs, two Seeed Grove inputs and one SparkFun input with Qwiic connector.

Technical specification

  • Type: extension module - adapter
  • Compatible withWisBlockseries
  • Interfaces:
    • for 1 Click! Mikroe extension
    • for SparkFun sensors with Qwiic connector
    • for sensors with I2C communication and Grove digital I/O
    • for UART and ADC sensors with Grove connector
  • Works with sensors with 3.3 V and 5 V
  • Module dimensions: 30 x 36 mm

Check alsoWisblock Sensorseries andWisBlock IOextensions.
