Product description: Fermion - VOC sensor - MEMS - 1-500 ppm - DFRobot SEN0566
A sensor from DFRobot enabling qualitative measurement of the concentration of VOC gases in the air. The detected gases include ethanol, formaldehyde, and toluene, and the detection range is from 1 ppm to 500 ppm . Additionally, the sensor is characterized by low energy consumption, its current consumption does not exceed 20 mA , and the manufacturer estimates the module lifespan at approximately 5 years . The sensor can be used to monitor air, determine its pollution level, and detect fire.
Also check out the user guide prepared by the manufacturer!

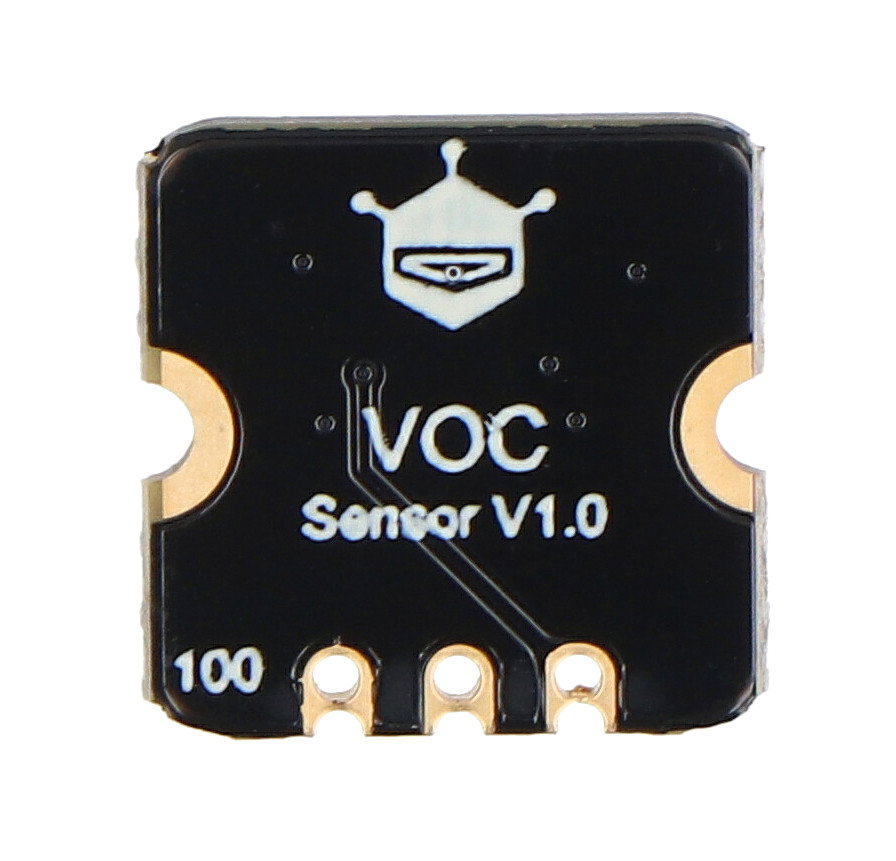

Fermion - VOC sensor - MEMS - 1-500 ppm - DFRobot SEN0566.
Sample connection diagram.
The principle of operation of the sensor
Volatile organic compounds (VOCs) are a group of chemical compounds with various chemical structures and properties. During the measurement, the measured values are processed using an algorithm and presented with the VOC index, which represents the air quality value on a scale from 0 to 500. The lower the VOC index value, the cleaner the air.
Precautions during use
- Before using the sensor, remove the protective film from it.
- Avoid using the sensor in an environment where it will be exposed to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, among others).
- Protect the sensor from contamination with alkalis, alkali metal salts and halogens.
- Avoid long-term exposure of the tile to unfavorable environmental conditions (such as high temperatures, high humidity, high pollution).
- Do not expose the module to water.
- Do not expose the module to vibrations, impacts or falls from height.
- Do not test the module on systems that involve personal security concerns.
Special features of the sensor
- It has a modernized MEMS system for precise measurement of volatile organic compounds.
- Compact dimensions (13 x 13 x 2.5 mm) allow for easy integration with other project components.
- It has low energy consumption.
- Provides precise and stable value reading.
- It has high sensitivity and short response time.
Suggested use of the sensor
- Air quality monitoring
- Fire detection
- Security systems in industrial halls
Fermion - volatile organic compounds - VOC sensor. Attention!
Fermion - Fermion - volatile organic compounds - VOC - MEMS sensor allows only qualitative measurements.

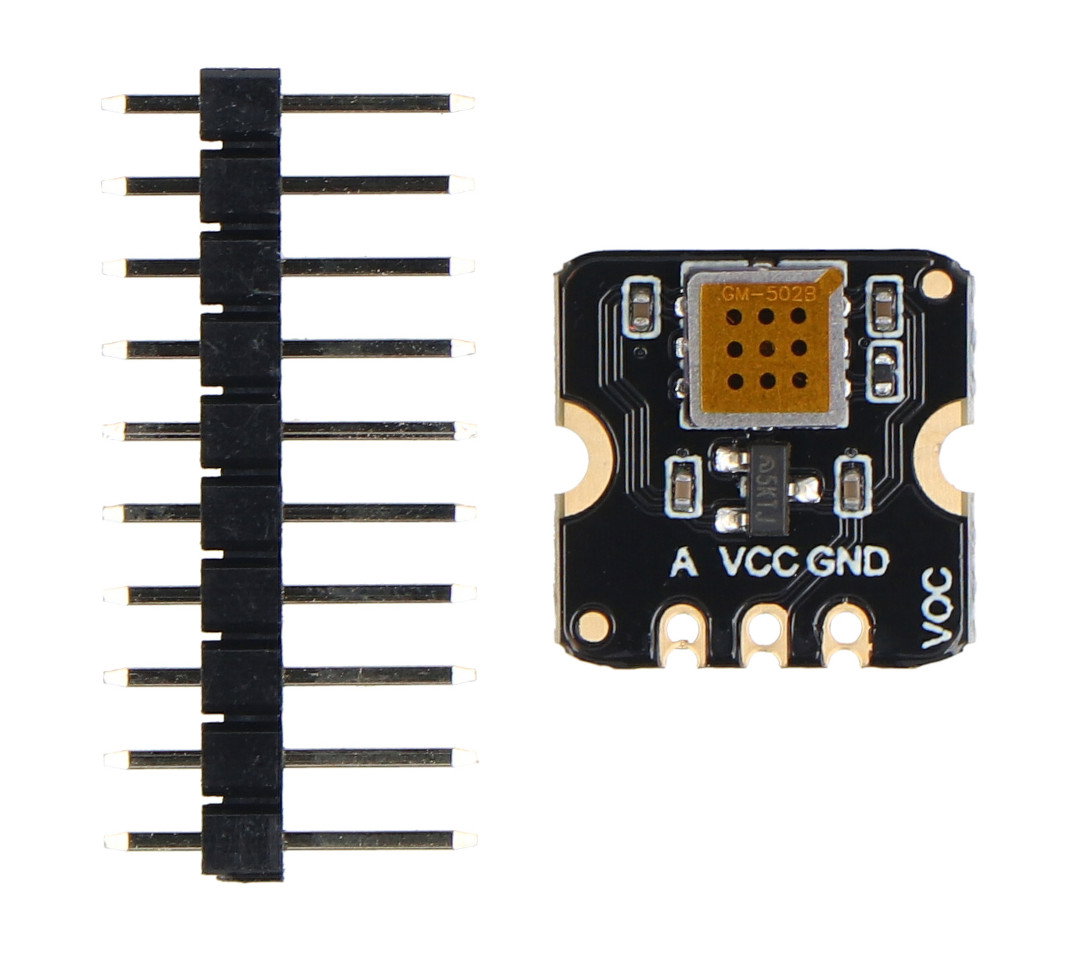

Elements included in the set.
Technical specifications of the sensor
- Detected gas: VOC - ethanol, formaldehyde, toluene, etc
- Detection range: from 1 ppm to 500 ppm
- Supply voltage: 3.3 V to 5 V DC
- Current consumption: < 20 mA
- Output signal: analog
- Operating temperature range: from -10°C to 50°C
- Operating humidity range: 15% to 90% RH (non-condensing)
- Service life: ≥ 5 years
- Dimensions: 13 x 13 x 2.5 mm
Set contents
- Fermion - VOC sensor - MEMS - 1-500 ppm
- Goldpin strip - 2.54 mm pitch
