Description

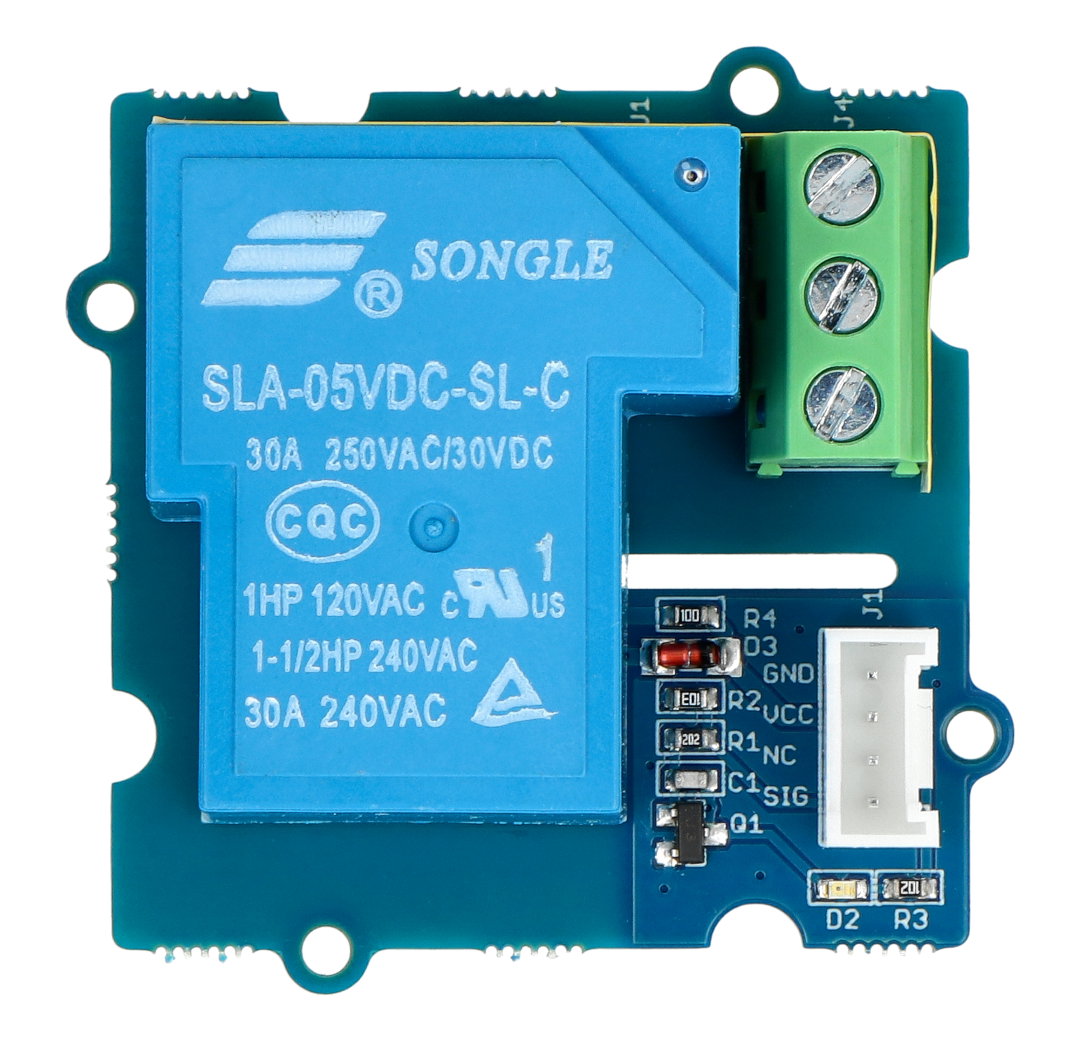

Module with relay that control the actuators consuming the current of up to 30 A for the voltage of 250 V AC, 30 V DC using the ports of the microcontroller. The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0. or Raspberry using Hat from GrovePi+.
|
The user manual The manufacturer has prepared a user manual and sample code. |
Connection
The sensor works with any microcontroller with digital inputs, including Arduino. Control voltage of the relay is 5 V DC.
The module is equipped with Grove interface that facilitates its connection to the Arduino along with Base Shield v2.0 or Raspberry using the Hat from GrovePi+.
Specification
- Control voltage: 5 V DC
- Signal type: digital
- The maximum voltage of contacts: 250 V AC / 30 A, 30 V DC / 30 A
- Maximum contact current: 30 A
- Delay time: 10 ms
- Board sizes: 20 mm x 20 mm x 8 mm
Set includes:
- Module with relay
- Connecting cable
