Grove - module with MOSFET transistor

Index: SEE-11339 EAN: 5904422376772

It allows for turning on and off devices that require power from 5V to 15V with a digital signal. Switching frequency up to 5 MHz. It has two mounting holes, two ARK connectors and a standard Grove series connector. The kit also includes a Grove cable. It is compatible with Arduino and other minikomputerami.

Grove - module with MOSFET transistor
€4.90
€3.98 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

It allows for turning on and off devices that require power from 5V to 15V with a digital signal. The module is characterized by a significantly higher switching frequency than conventional mechanical switch, which can reach 5 MHz. It has two mounting holes, two ARK connectors and a standard Grove series connector. The kit also includes a Grove cable. It is compatible with ArduinoRaspberry Pi, BeagleBone Forward, LinkIt ONE and most other mini-computer/controllers.

Connection

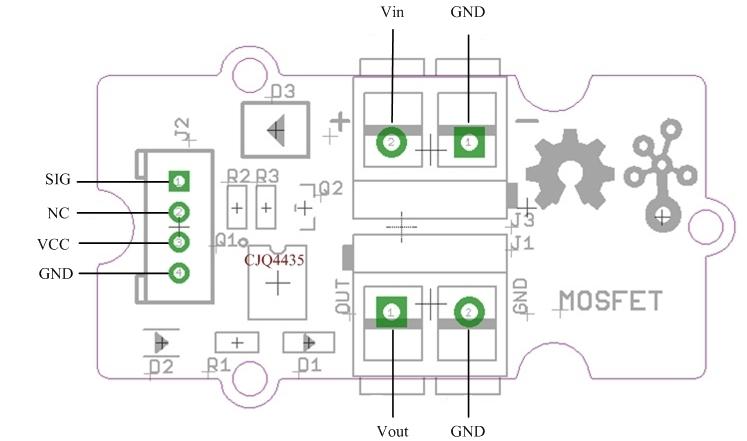

The module has a Grove connector (SIG, NC, VCC, GND) that is supplied with the control signal and power connector and two ARK connectors - one (Vin, GND) takes an input voltage between 5 and 15 V, the second (Vout, GND) is used to power the output device. In the absence of a power connector ARK, the module supplies current to the second  ARKconnector from the Grove connector (5 V).

The manufacturer provides on its website a simple scheme for connecting Arduino and Raspberry Pi together with the source codes.

Specification

  • Power module: 5 V
  • Supported voltage: from 5 to 15 V
  • Max continuous current: 9,1 A
  • System MOSFET: CJQ4435
  • Dimensions: 40x 20 x 15 mm
  • Weight: 14 g

Sensor - type amplifier
Package width 8.7 cm
Package height 13.6 cm
Package depth 1.2 cm
Package weight 0.013 kg
