Description
Module from the Grove series with a 4-pin screw connection of 3.5 mm. It is designed to connect the cables with diameter from 0.2 mm to 0.8 mm for the microcontroller. It has 4 ports: VCC, GND and two other ports. It is used as a converter of the size of cables. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

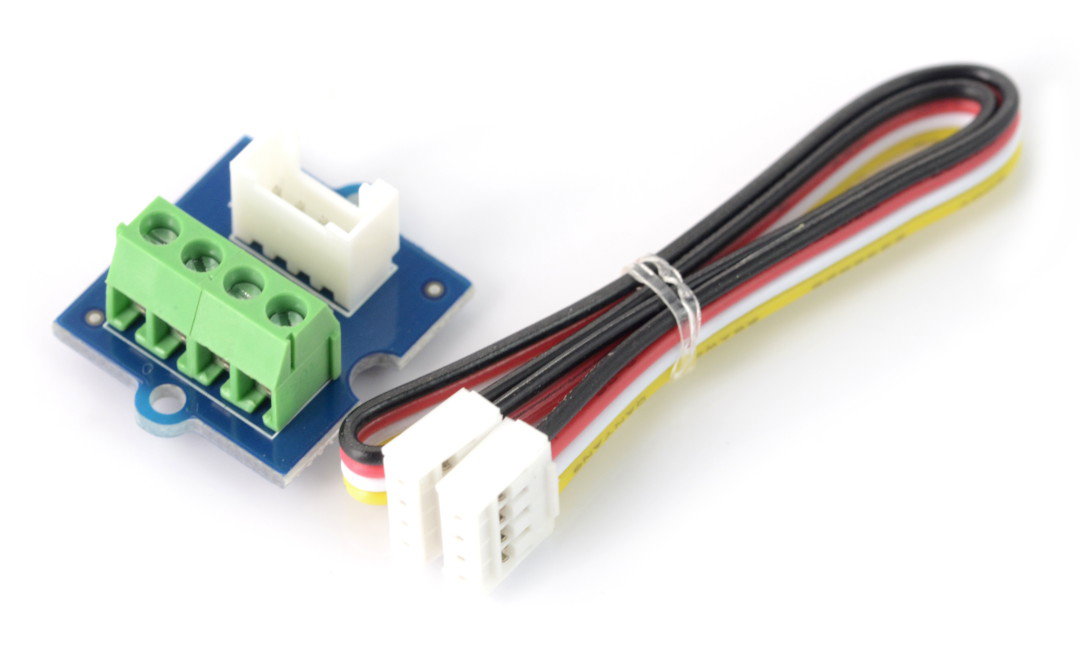

Modules include 4-pin cable for Base Shield v2.
Specification
- 4-pin screw connection: 3.5 mm pitch
- Designed for cables from 20 AWG to 30 AWG: from 0.2 mm to 0.8 mm diameter
- Maximum current: 6 A
- Maximum voltage: 125 V
- 4-pin Grove interface
- Module dimensions: 20 x 20 mm
- Weight: 4 g
|
The product is compatible with Arduino The manufacturer offers the user guide for the module. |
Connection

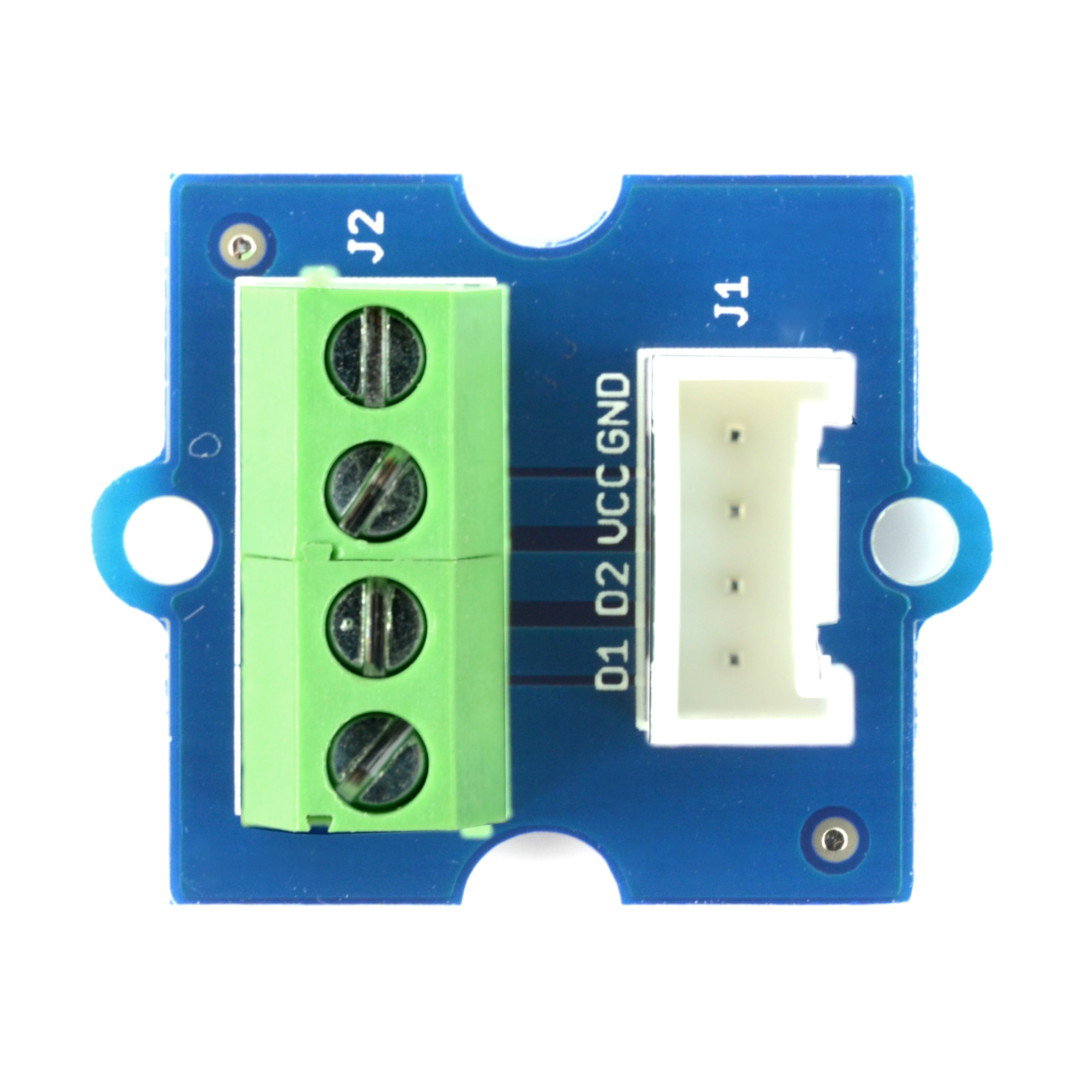

The sensor communicates with the microcontroller through the digital pins. It works as a converter of the cable's thickness. It has the following pins:
| Pin | Description |
|---|---|
| GND | Ground. |
| VCC | Supply voltage. |
| D1 | The D1 signal. |
| D2. | The D2 signal. |
|
Grove is a series of modules and sensors that are compatible with Base Shields working with Arduino and STM32 Nucleo. |
