FeatherWing - 6 port Grove + STEMMA QT expansion module for Feather boards - Adafruit 5862

Index: ADA-25282 EAN: 5904422386276
FeatherWing from Adafruit is an expansion module for Feather boards , allowing you to connect up to 6 devices with a Grove connector . Equipped with 3 analog / digital connectors, 1x UART and 2x I2C, it allows you to implement a variety of electronic projects. An additional STEMMA QT port allows you to connect another I2C device. The kit includes an assembled FeatherWing module and pin connectors for soldering.
FeatherWing - 6 port Grove + STEMMA QT expansion module for Feather boards - Adafruit 5862
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product description: FeatherWing - 6 Port Grove + STEMMA QT - Expansion Module for Feather Boards - Adafruit 5862

Adafruit 's FeatherWing is a versatile module designed for Feather boards , allowing easy connection of Grove and STEMMA QT sensors and modules. With 3 analog/digital connectors, 1 UART connector, and 2 I2C connectors , it allows you to develop a variety of electronics projects, from prototyping to educational solutions. The built-in vertical STEMMA QT port provides additional flexibility when connecting I2C devices. Seeed's Grove system offers simplicity with standard 4-pin connectors , but requires appropriate port assignments to device functions (e.g. UART sensors to UART port). The module is compatible with most Feather boards, although there are limitations to some models, such as the number of analog inputs on the RP2040 Feather. The kit includes an assembled FeatherWing module and 16-pin connectors for soldering yourself.

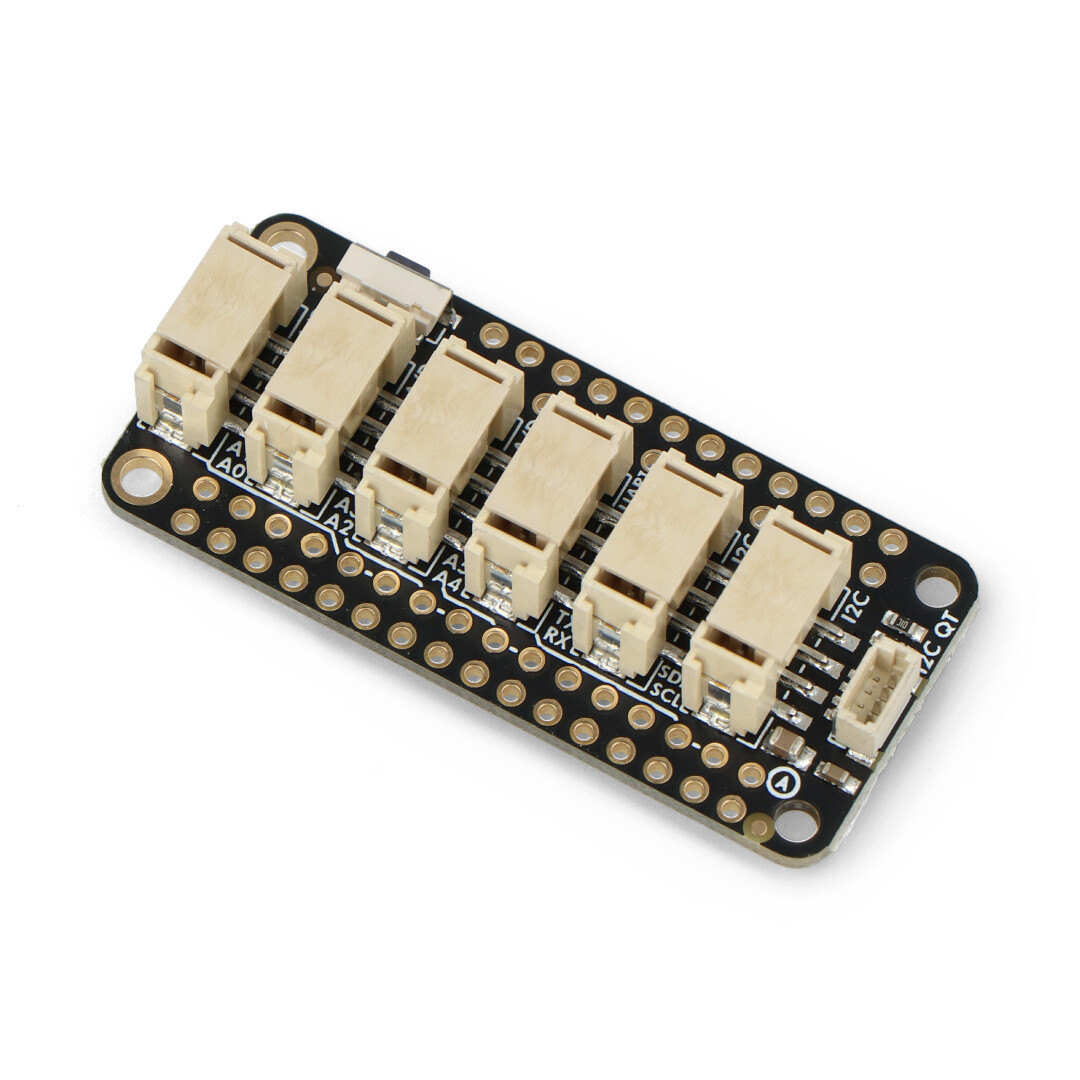

FeatherWing - 6 Grove Ports + STEMMA QT - Expansion Module for Feather Boards - Adafruit 5862

FeatherWing - 6 port Grove + STEMMA QT - expansion module for Feather boards - Adafruit 5862.

FeatherWing - 6 Grove Ports + STEMMA QT - Expansion Module for Feather Boards - Adafruit 5862

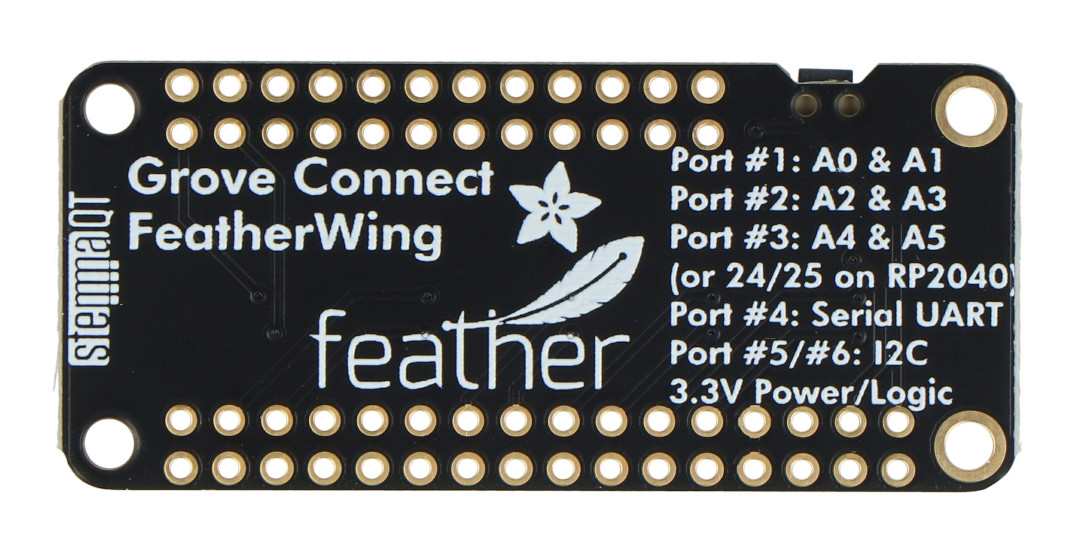

The plate allows you to use multiple Grove devices with Feather plates.

Main features of the module

  • Grove and STEMMA QT compatible : allows easy connection of I2C, analog, digital and UART modules
  • Flexible ports : 3x analog/digital, 1x UART, 2x I2C and an additional STEMMA QT port for I2C devices
  • Easy assembly : the kit includes pins for soldering and fitting to any Feather board
  • Compact size : fits Feather tiles allowing for tidy and aesthetic design
  • Support for a wide range of projects : from education to advanced prototypes thanks to compatibility with popular modules

Compatible software

The module does not require complicated software - just the appropriate library for Grove and Feather modules. STEMMA QT allows easy operation of I2C devices using popular libraries in Arduino IDE, CircuitPython or MicroPython .

Applications of the expansion module

The FeatherWing module is great for:

  • Education : learning electronics and programming with simple Grove modules
  • Prototyping : Building IoT Devices and Test Solutions
  • DIY projects : creating interactive devices using sensors and modules
  • IoT systems : connecting environmental and communication sensors
FeatherWing - 6 Grove Ports + STEMMA QT - Expansion Module for Feather Boards - Adafruit 5862

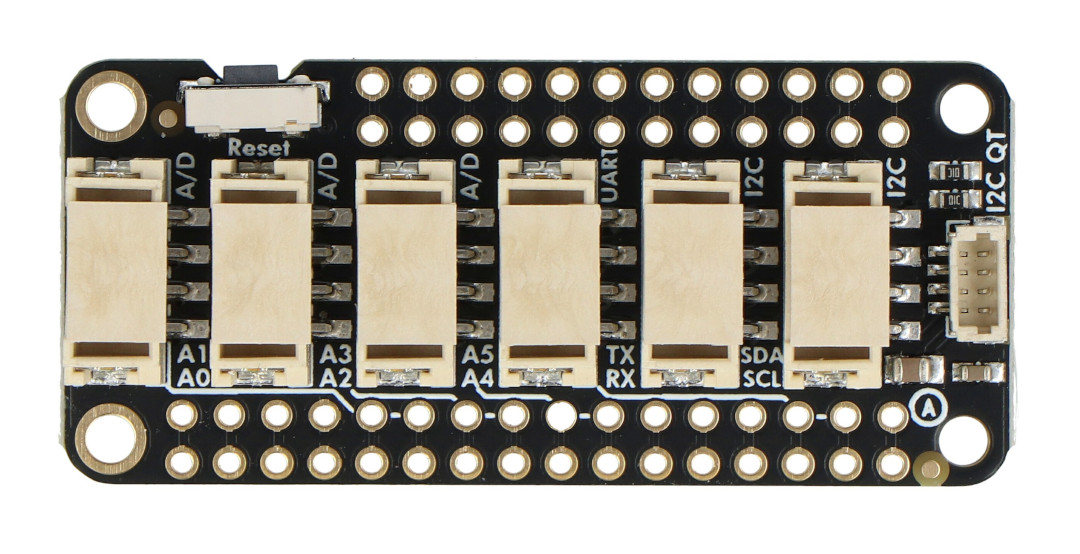

The module offers 3 analog/digital connectors, 1 UART connector and 2 I2C connectors.

FeatherWing - 6 Grove Ports + STEMMA QT - Expansion Module for Feather Boards - Adafruit 5862

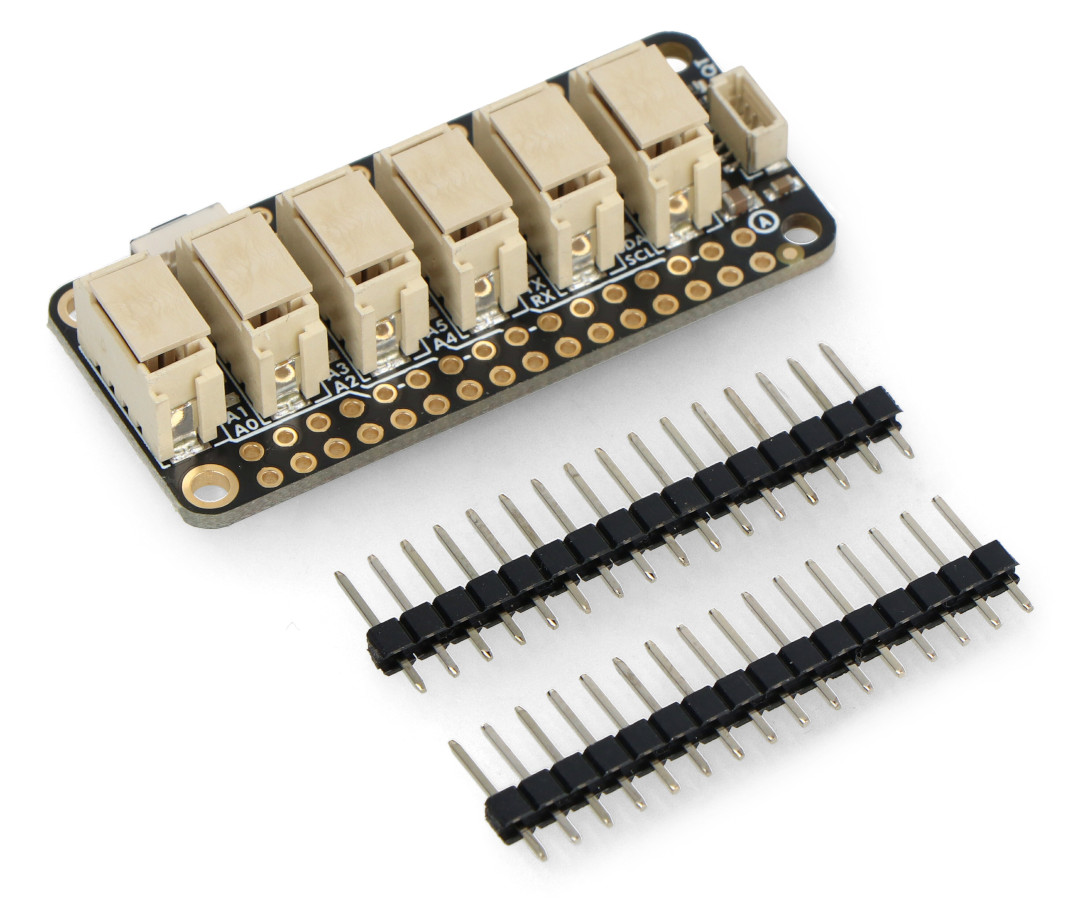

Items included in the set.

Technical specification of the module

  • Ports: 3x analog/digital, 1x UART, 2x I2C, 1x STEMMA QT (I2C)
  • Grove Connectors: 4-pin with 2mm pitch
  • Compatibility: All Feather boards (check your specific board for port availability)
  • Dimensions: 50.7 x 23 x 9.9 mm
  • Weight: 6.4 g

Kit Contents

  • 1x FeatherWing - 6 Grove Ports + STEMMA QT - Expansion Board for Feather Boards - Adafruit 5862
  • 2x 16-pin solderable connectors

Sensor - type Hub / nakładka
Package width 7.5 cm
Package height 12 cm
Package depth 1 cm
Package weight 0.01 kg
