Product description: Grove - CAN Bus module - GD32E103 - Seeedstudio 114992978
The module is based on the GD32E103 system, which allows you to connect the microcontroller with the CAN bus . It allows you to use Arduino to communicate with the CAN-BUS bus, for example for vehicle diagnostics. It communicates via the UART serial interface - RX, TX. It works with a voltage of 3.3 V. The board has a Grove connector and a screw connector .
Features of the module
- Supports CAN communication: implements CAN FD up to 5Mbps
- It is easy to program: it supports AT commands which enables simple programming of UART serial port
- Grove ecosystem: the board has a 4-pin Grove connector that allows for rapid prototyping
The kit also includes a connection cable with a Grove connector.
The product is compatible with Arduino!
The manufacturer has prepared a detailed user guide that makes it much easier to start working with the module.

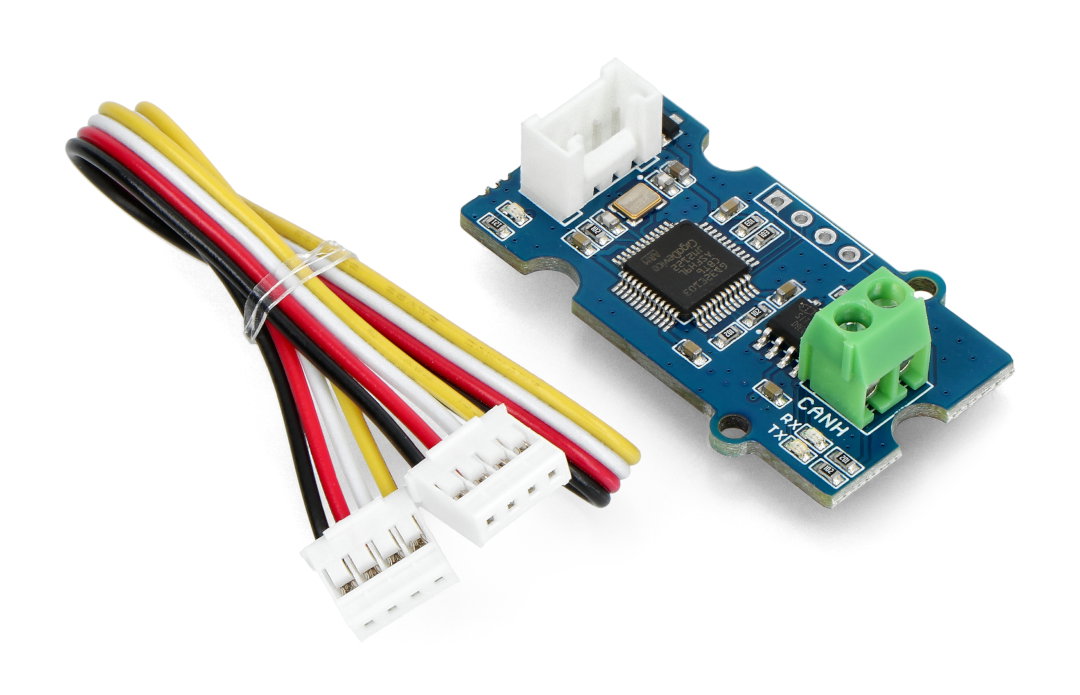

Grove - CAN Bus module - GD32E103 - Seeedstudio 114992978.
What is CAN bus?
CAN stands for Controller Area Network and stands for a multi-master serial bus for bi-directional data transmission. The CAN bus is widely used in automotive vehicles, agricultural equipment, broadly understood industrial automation and advanced mechanical control.
Our offer also includes other communication modules - check it out!
Technical specification of the module
- Type: communication module
- Communication type: CAN bus
- Built-in chip: GD32E103
- UART baud rate: up to 115200 baud (9600 baud by default)
- CAN FD transmission speed: up to 5 Mb / s
- Status indication: RX / TX LED
- Working voltage: 3.3V
- Connector standard:
- 1x Grove connector
- 1x screw connection
- Module dimensions: 20 x 40 x 10 mm
Kit contents
- Grove - CAN Bus module - GD32E103 - Seeedstudio - 1 piece
- Connecting cable with a Grove connector - 1 piece

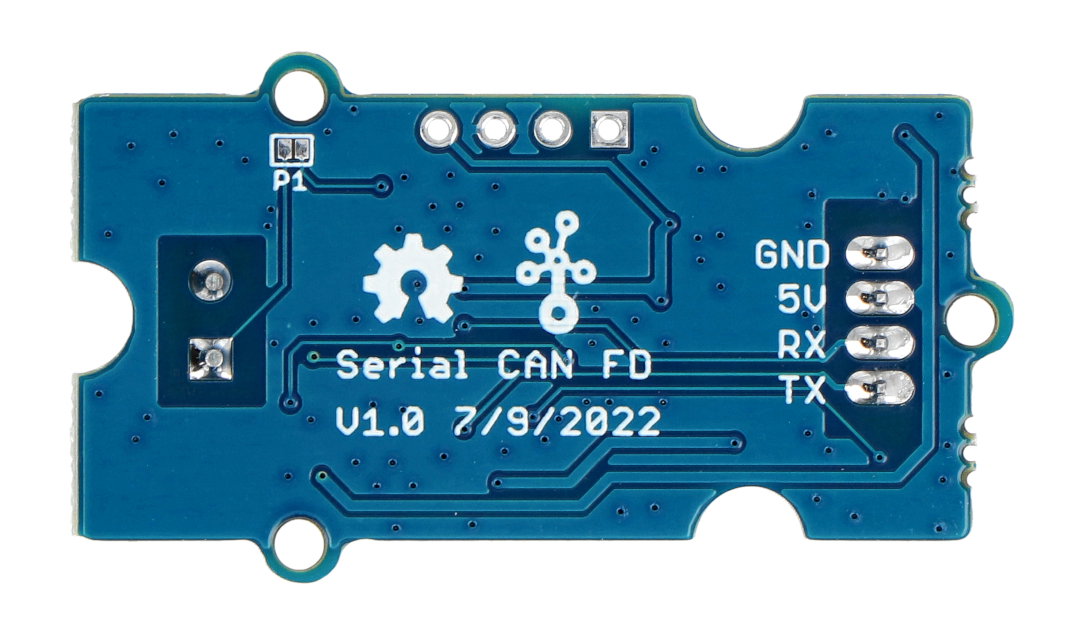

Grove - CAN Bus module from Seeedstudio - rear view.
