Product description: Push solenoid 12 V 0,2 kg 11 mm
The pushelectromagnetis powered by12 V, can push a mass of0.2 kgwith a standard earth acceleration of 9.8 m/s2. The diameter of the housing is 11 mm, while the stroke of the bolt is5 mm. The electromagnet is equipped with two mounting holes and two 12 mm leads.
Application of electromagnets in practice
Electromagnets find various applications in electrical devices, industry, medicine, automotive, etc. Apush-pullsolenoid can be found in the central locking system of a car, for example.

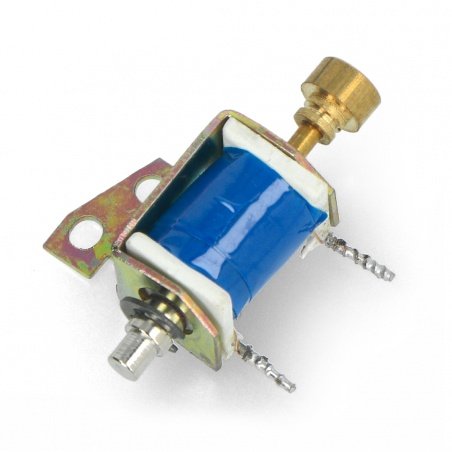

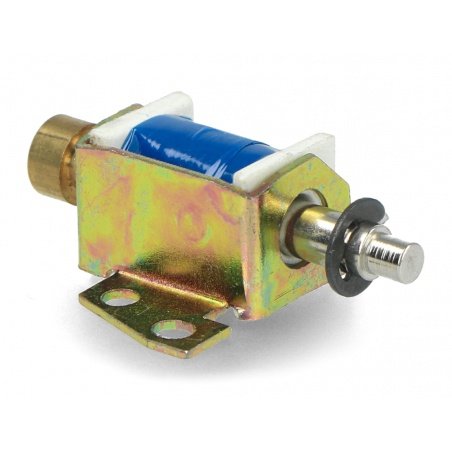

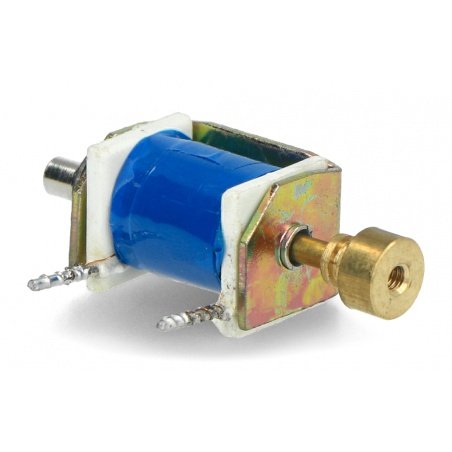

Push magnet 12 V 0,2 kg 11 mm.

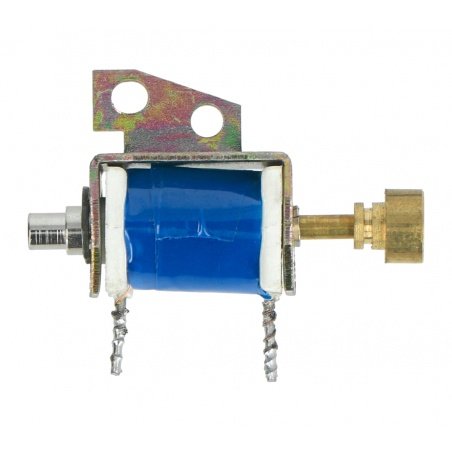

The push solenoid has two leads with a grid of 12 mm.
Specification of the electromagnet
- Design: push version (pushing)
- Supply voltage: 12 V
- Pushing force: 0.2 kgf (pushes a mass of 0.2 kg at an acceleration of 9.8 m/s2)
- Bolt stroke: 5 mm
- Bolt length: 32 mm
- Housing diameter: 11 mm
- Housing length: 17 mm
- Number of mounting holes: 2
- Lead spacing: 12 mm
