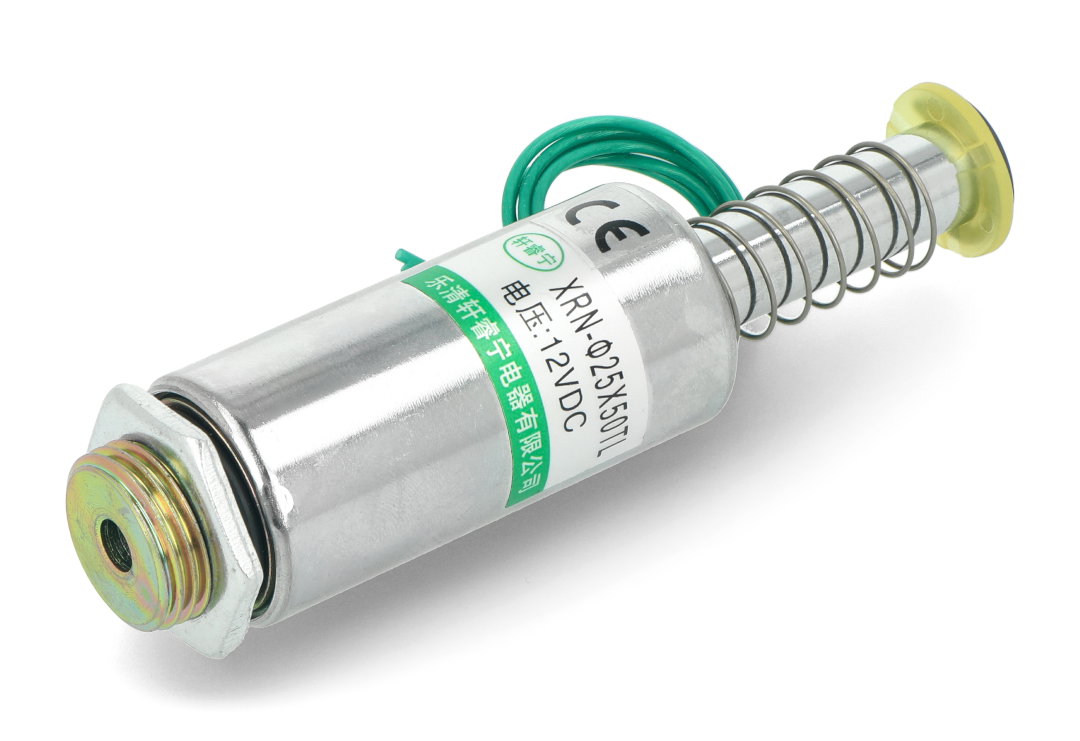

Elektromagnet pushing 12V 2kg typ2
The push electromagnet is powered by 12 V, it can push a mass of 2 kg with a standard earth acceleration of 9.8 m/s2. The housing diameter is 25 mm and the housing length is 65 mm. The version of the electromagnet without the locknut on the bolt. The mounting hole is 18 mm. The solenoid is equipped with two 25 cm long power wires with the insulation removed at the ends.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Pushing solenoid 12 V 2 kg type2
The pushelectromagnetis powered by12 V, it can push a mass of2 kgwith a standard earth acceleration of 9.8 m/s2. The housing diameter is 25 mm and the housing length is 65 mm. The version of the electromagnet without the locknut on the bolt. The mounting hole is 18 mm. The electromagnet is equipped with two power wires of 25 cm length with stripped insulation at the ends. The device can be used in electrical machines, industry, medicine, loudspeakers, etc. The set includes a retracting spring.
Pushing electromagnet 12 V 2 kg type2.

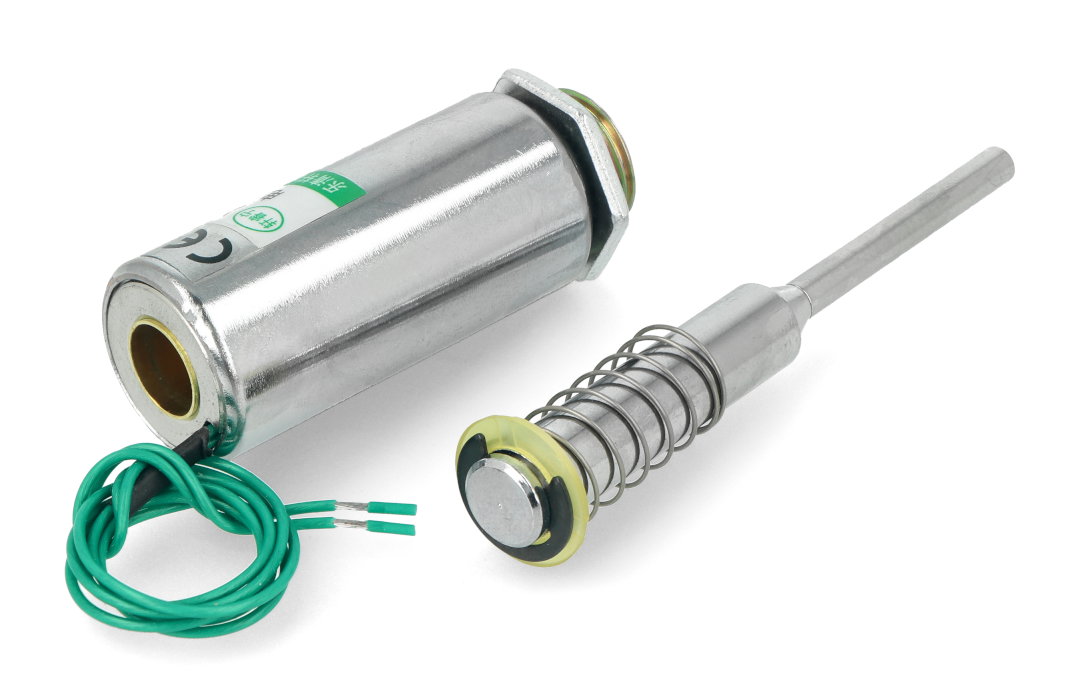

The electromagnet consists of two elements.
Specification of the electromagnet
- Design: push version (pushing)
- Supply voltage: 12 V
- Pushing force: 2 kgf (pushes a mass of 2 kg for an earth acceleration of 9.8 m/s2)
- Bolt stroke: 20 mm
- Housing diameter: 25 mm
- Housing length: 65 mm
- Mounting hole: 18 mm
- Length of power cables: 25 cm
- Wires with stripped insulation at the ends
A wide range ofelectromagnetsis available in our shop- checkit out.
| Name | Value |
|---|---|
| Width | 8 cm |
| Height | 2.6 cm |
| Depth | 13 cm |
| Weight | 0.189 kg |
