Gravity - Ring 2D QR Code Scanner - circular - DFRobot SEN0486
TheRing 2D QR Code Scanner is a kit consisting of a barcode and QR code scanner and an adapter that processes the read values. The module can read one-dimensional and two-dimensional codes, all through an intelligent image recognition algorithm. Ring 2D QR Code Scanner works with all controllers operating at 3.3 V / 5 V, supports UART and I2C communication - which in combination gives the possibility of integration with a wide range of devices.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Gravity - Ring 2D QR Code Scanner - QR Code Scanner - Round - DFRobot SEN0486
TheRing 2D Q R Code Scanner is a kit consisting of a barcode and QR code scanner and an adapter that processes the read values. The module can read one-dimensional and two-dimensional codes, all through an intelligent image recognition algorithm. Ring 2D QR Code Scanner works with all controllers operating at 3.3 V / 5 V, supports UART and I2C communication - which in combination gives the possibility of integration with a wide range of devices.
The product is compatible with Arduino, ESP32 and Raspberry Pi controllers.
The manufacturer has prepared a detailed user guide, which includes, among other things, wiring diagram and sample program codes.

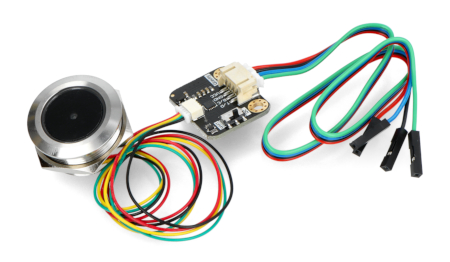

Gravity - Ring 2D QR Code Scanner - circular - DFRobot SEN0486.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

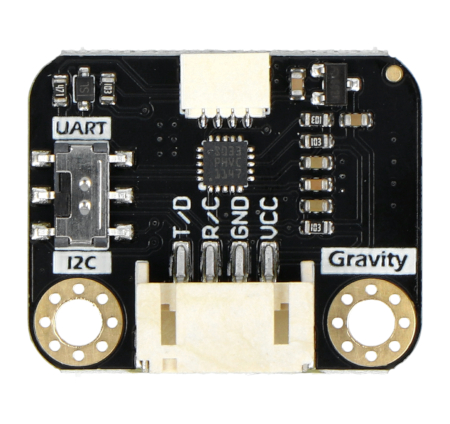

A board - an adapter, which is the link between the scanner and the module with a microcontroller processing the signal.
How does the QR code scanner work?
Ring 2D QR Code Scanner uses an intelligent image recognition algorithm. The supported types of 1D one-dimensional codes are EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved, and 2D two-dimensional codes (QR) are QR code, Data Matrix, PDF417. The module has two built-in LEDs that inform the user whether the code was read correctly. It can be used in self-service vending machines, subway gates, entrances to places where it is necessary to scan tickets or coupons, and many others.
Set contents
- Gravity - Ring 2D QR Code Scanner - circular - DFRobot SEN0486
- PCB adapter for the scanner
- Connection cable PH2.0-P, 30 cm long
Leads description
The adapter is equipped with a convenient Gravity type connector. The advantage of this type of connector is primarily the lack of need to solder wires and stable connection.
- SDA / TX - I2C interface data line / UART transmit line
- SCL / RX - I2C clock / UART receive line
- GND - system ground
- VCC - power supply pin from 3,3 V to 5 V

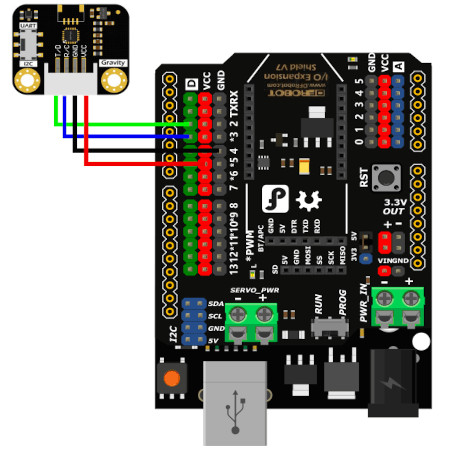

Example circuit diagram using the DFRobot board.

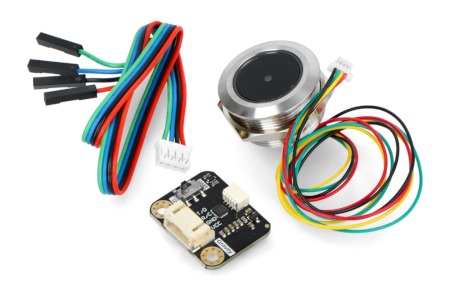

Ring 2D QR Code Scanner kit contents.
Technical specifications Ring 2D QR Code Scanner
- Supply voltage: 3.3 V / 5 V DC
- Operating current: 70 mA
- Communication interface: UART, I2C
- Resolution: 640 x 480 px
- Supported codes: 1D and 2D (QR)
- Supported 1D code types: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved
- Supported Code Types 2D: QR code, Data Matrix, PDF417
- Scanning angle: rotation 360°, tilt ±55°, yaw ±55°
- Depth of Field: QR code - 25mm to 150mm performance may vary due to bar code quality and environmental conditions
- Contrast: ≥ 25%
- Scanning angle: 69° (horizontal), 56° (vertical)
- Reading accuracy: ≥ 5 mil
- Reading indication: LED
- Interpretation of LED indication: green flashing light indicates successful reading
- Operating temperature range: -20°C to 60°C
Useful links
| Name | Value |
|---|---|
| Width | 6.5 cm |
| Height | 2.5 cm |
| Depth | 8 cm |
| Weight | 0.04 kg |
