Product description: Xia mi Multi-functional Expansion Board - for BBC micro:bit V2 - DFRobot MBT0042
Xia multi-functional expansion board for use with micro:bit version V2 (not compatible with micro:bit V1). Designed to teach programming in the MakeCode graphical language - meets STEAM requirements. There are over 10 functional modules on the board, including but not limited to a distance sensor, temperature and humidity sensor, motor controller, LEDs, OLED display, and more. Equipped in this way, the board not only allows students to learn the basic concepts and functions of micro:bit, but also enables them to learn programming in an effective and interesting way.

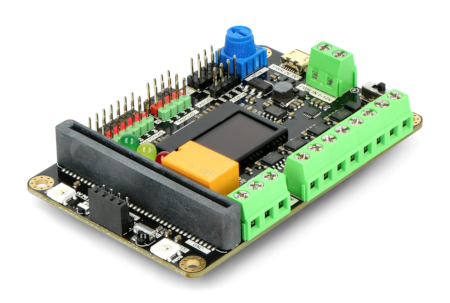

Xia mi Multi-functional Expansion Board - for BBC micro:bit V2 - DFRobot MBT0042.

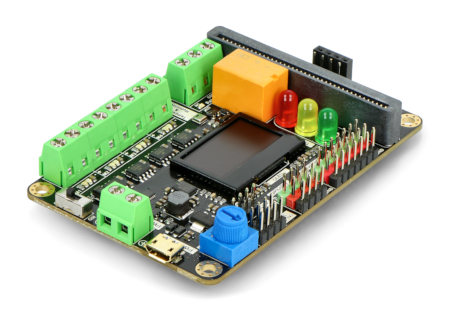

Over 10 functional peripherals on one board.
Special Features Xia mi Multi-functional Expansion Board
- Integrated, multi-functional expansion board with more than 10 STEAM-compliant peripherals
- Useful for learning programming at an early age
- Supported with the MakeCode graphical editor
- Compatible with micro:bit V2
- Equipped with an additional OLED display
- The user guide includes tutorials for creating projects such as a traffic light, servo controlled by an angle sensor, fire alarm and more
Technical Specifications Xia mi Multi-functional Expansion Board
- Application: for micro:bit V2 from BBC
- Type: multifunctional expansion board
- Supply voltage:
- 5 V supplied via USB
- 6 V to 12 V supplied through external power source
- Elements on the board:
- relay module (P9) with built-in status indicator - 1 pc.
- IR receiver (P13) - 1 pc.
- RGB LED W2812 (P15) - 1 pc.
- infrared flame sensor (I2C) - 1 pc.
- temperature and humidity sensor (I2C) - 1 pc.
- angle position sensor (I2C) - 1
- 3-color signaling LED (I2C) - 1
- OLED display (with black metal protective cover) - 1
- motor driver (I2C) - 4 pcs.
- GPIO (5V): P0 / P1 / P2 / P8
- GPIO (3.3 V): P0 / P1 / P2 / P8 / P12 / P14 / P16
- I2C bus port (3.3 V) - 2 pcs.
- HuskyLens port (5V I2C) - 1 pc.
- SR04 ultrasonic sensor port (5V P0 P1 GND) - 1 pc.
- URM10 ultrasonic sensor port (5V P0 P1 GND) - 1 pc.
- Board dimensions: 57 x 87 mm

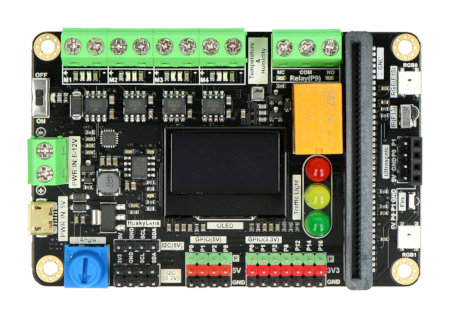

Xia mi Multi-functional Expansion Board - top view.
