Product description: LoRaWAN intelligent lighting controller - LN version - Milesight WS558-868M
The Milesight WS558 lighting controller is a modern intelligent lighting module using LoRaWAN communication technology. It is designed to effectively monitor and control electric lighting devices . The smart home component allows you to connect up to 8 lighting circuits , while collecting precise data on voltage, power and current consumption. Using LoRaWAN technology, the controller ensures long-range data transmission, reaching up to 15 km in open areas, which makes it an ideal solution for smart city projects. The device also facilitates the user's configuration process thanks to short-range NFC technology, and also provides ease of management and monitoring using a free mobile application.
During the first configuration, you will need to know the default password that synchronizes the device with the application: 123456 .

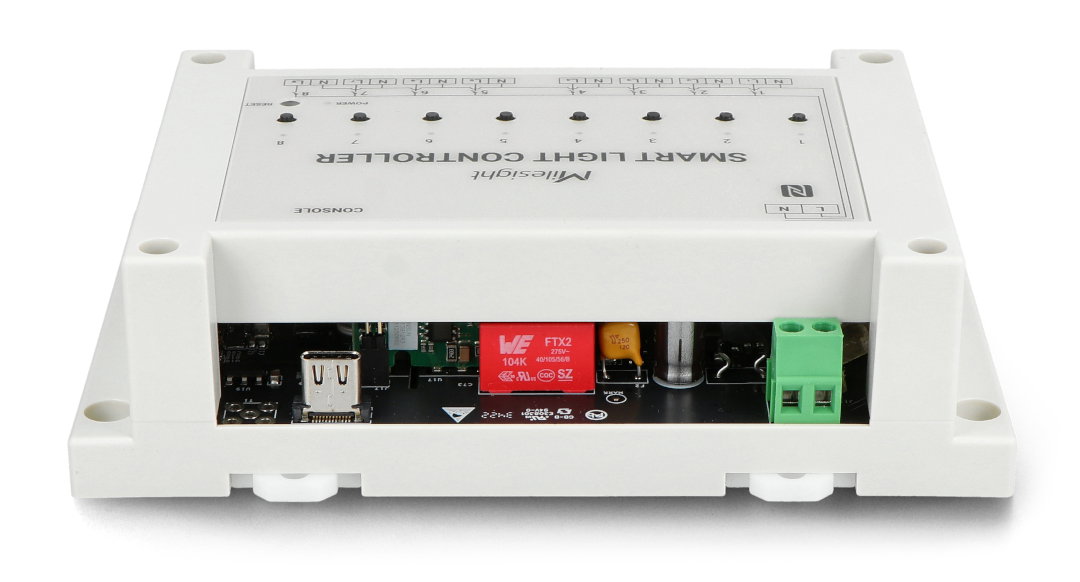

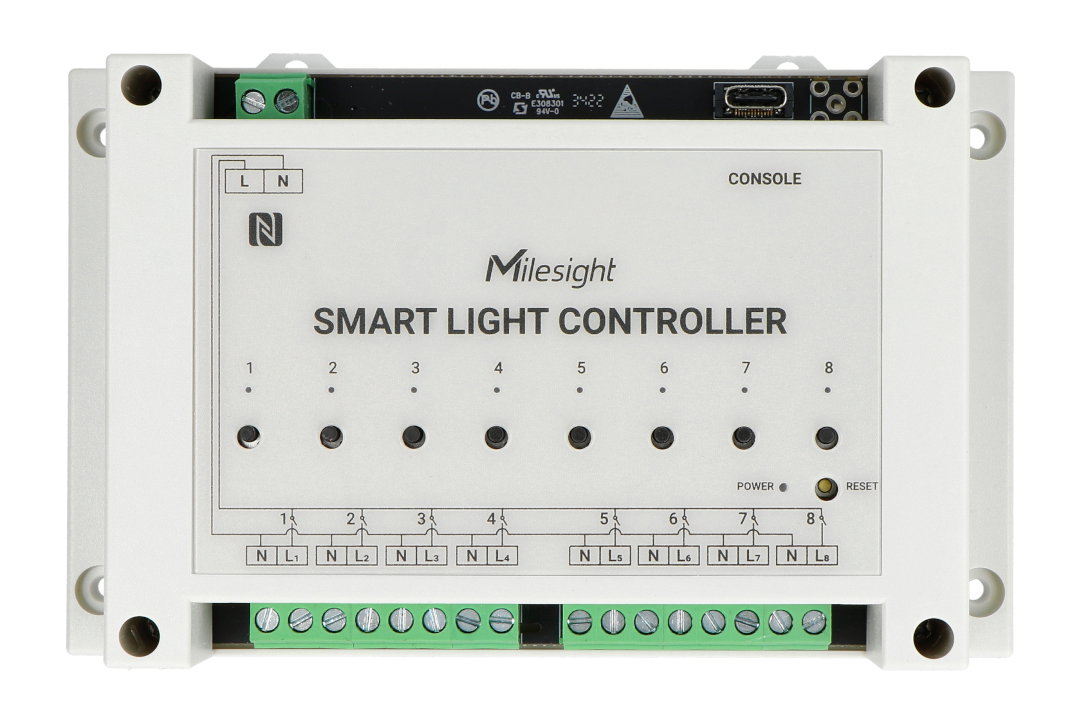

Intelligent LoRaWAN lighting controller - LN version - Milesight WS558-868M.
The module allows for wireless lighting control.
Main features of the module
- Wireless communication using the LoRaWAN protocol
- It allows remote control of up to 8 lighting devices at the same time
- Equipped with active outputs
- It allows you to monitor the electricity consumption of connected devices
- It is compatible with the Milesight D2D protocol, so it can work even without a LoRaWAN network gateway
- It has a switch schedule function
- Provides protection against overload
- Configures using the NFC protocol
- It offers a communication range of up to 15 km in open areas and up to 2 km in cities
- Designed for mounting on a wall or DIN rail
It is compatible with Milesight ToolBox and Milesight IoT Cloud applications
Remote lighting control
The Milesight light controller has been designed with modern lighting management in mind. It allows users to control up to eight lighting circuits in active mode. Thanks to remote control functions, users can turn on, turn off or plan lighting schedules, adapting them to their needs.
Milesight D2D
Milesight D2D is a modern communication protocol that enables direct communication between devices without the need to use a LoRaWAN network gateway . However, to use the functions of this protocol, at least two devices are needed - one control device, sending commands and requests to other devices and one agent device that receives and responds to these requests. A description of the available control devices and the agent type can be found on the manufacturer's website .
This product supports the Milesight D2D protocol , which allows direct control of devices without a LoRaWAN network gateway.

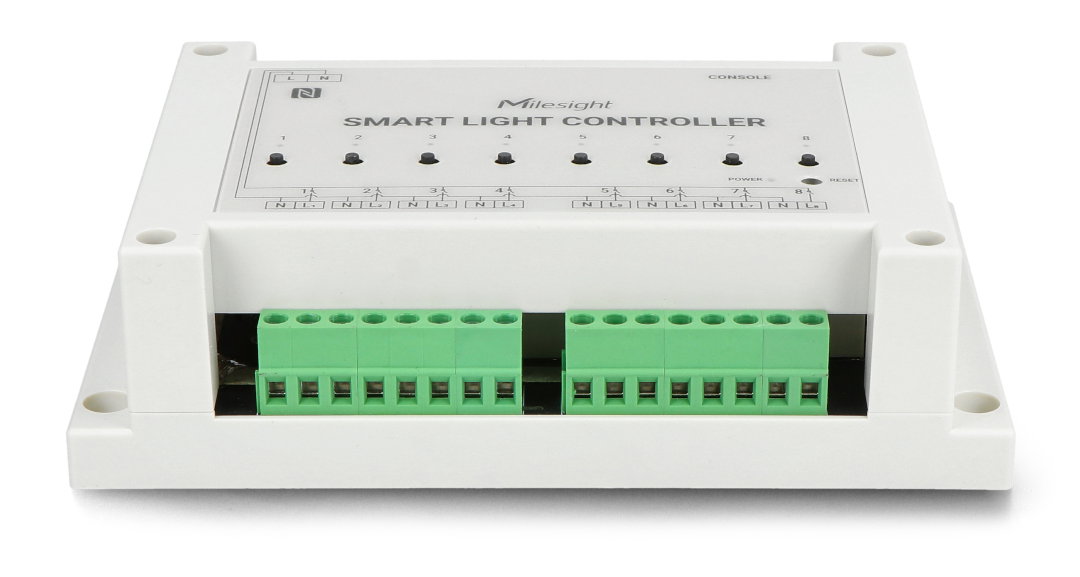

The light controller allows you to connect up to 8 lighting cables to one module.
The product is compatible with the free Milesight ToolBox smartphone application.
Energy consumption monitoring
The LN version of the Milesight smart controller offers energy monitoring and enables precise measurement of voltage, current, power and total energy consumption in kWh . With this feature, users can effectively track and manage energy consumption in their home or office.
Synchronization with the smartphone application
This product is compatible with the Milesight ToolBox application for smartphones. Thanks to this integration, users can remotely monitor and configure device parameters directly from their phone. Synchronization takes place via NFC technology, which ensures quick and intuitive pairing of the device with the application. Milesight ToolBox allows convenient access to measurement data, record history and sensor configuration settings even when away from home.
Technical specifications of the light controller
- Producer: Milesight
- Model: LoRaWAN Smart Light Controller WS558, LN version
- Product code: WS558-868M
- Connectivity technology: wireless
- Wireless protocol: LoRaWAN, Milesight D2D
- Frequency: 868MHz
- Module output: 8 active module outputs
- Energy monitoring: voltage, current, power factor, power and energy consumption
- Power supply: 100 V to 240 V AC, 50 / 60 Hz
- Maximum capacitive and inductive load: 5 A per switch, 16 A total
- Maximum resistive load: 10 A per switch, 16 A total
- Device operating temperature range: from -20°C to 60°C
- Operating humidity range of the device: from 0% to 95% RH, non-condensing
- Built-in USB-C port: yes
- Application: Milesight ToolBox, Milesight IoT Cloud
- Housing material: ABS
- Product color: cream and white
- Dimensions: 145 x 90 x 40 mm

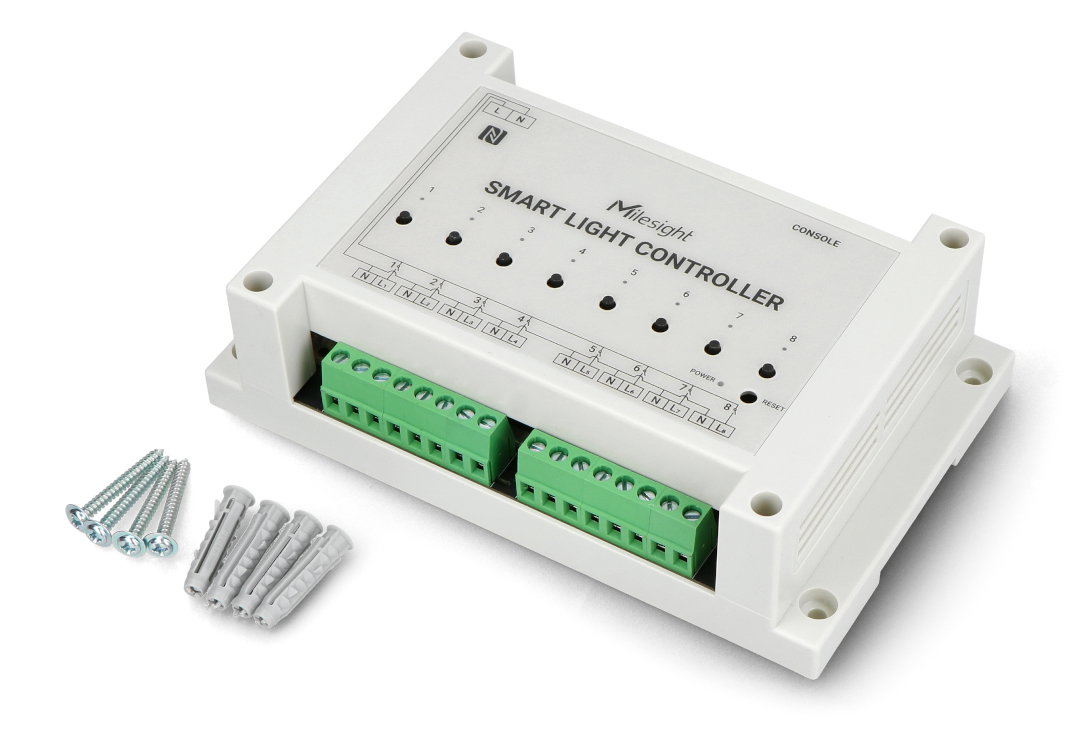

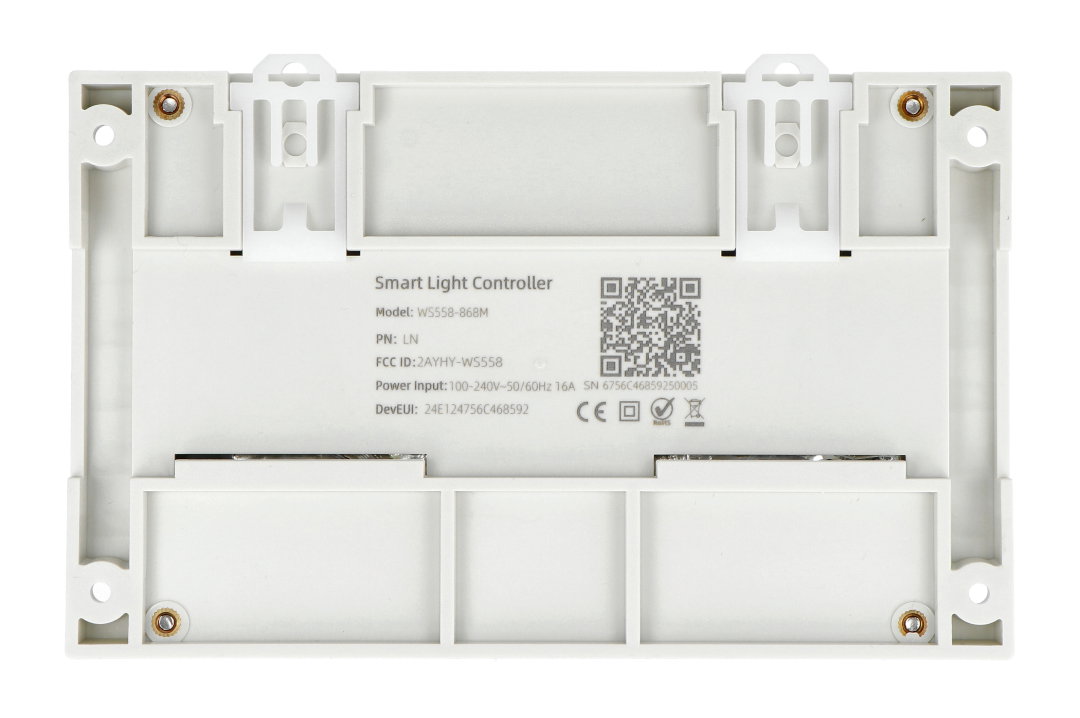

The device is designed to be mounted on a wall or DIN rail.
LoRaWAN wireless communication protocol.
LoRaWAN communication protocol
LoRaWAN is a global communication standard for IoT networks, based on LoRa technology, which is characterized by a long range. Thanks to this protocol, devices can communicate with network gateways over a distance of several kilometers in urban environments and up to several dozen kilometers in rural areas. At the same time, LoRaWAN-based devices are known for their low power consumption, making them an ideal choice for applications where batteries need to function for years without the need for recharging. In response to different network conditions, LoRaWAN can adjust the transmission rate, which helps optimize coverage and energy consumption.
