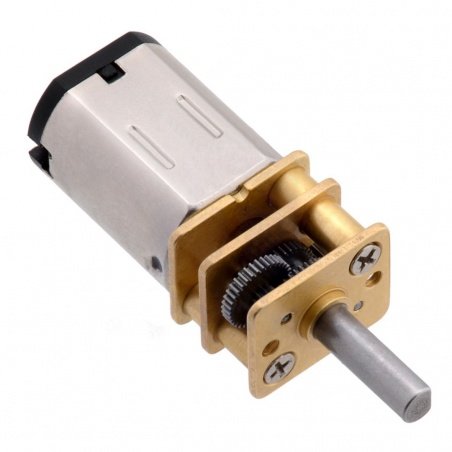

50:1 Micro Metal Gearmotor HPCB 12V - Pololu 3039

Index: PLL-07984 EAN: 5904422306342

High power miniature motor from Pololu with durable carbon brushes. It has 50:1 gears, speed is 625 rpm, torque is 1.1 kg*cm (0.1 Nm).

50:1 Micro Metal Gearmotor HPCB 12V - Pololu 3039
€16.50
€13.41 tax excl.
Unavailable
Discontinued product
PayPal payment
Manufacturer: Pololu

Attention!

The product has been discontinued. Check other products in category.

Product description: HPCB 50:1 12V motor - Pololu 3039

Small, lightweight yet powerful motors from Pololu are used by robot builders as drive units. Units can be powered up to 12 V, with usable power above 3 V.

Dimensions of the motor

The motor body is a cuboid with dimensions of 26 x 12 x 10 mm. The gear is 9.27 mm long. The output is a 3mm D-shaped shaft. The total weight is about 9.5 g.

The drawing shows the dimensions of the Pololu micro motor with gearbox.

Accessories for the motor

We offer a range of accessories that work with Pololu micro motors:


  • Motor controllers
    The control of direction and rotational speed is possible with the use of DC motor controllers. In the offer there are both integrated circuits for individual soldering and ready to connect, cooperating with kits (eg Arduino) modules.

We also offer many other motors.

HPCB motor specification

Supply voltage:

3 V - 12 V

No-load current (12 V):

100 mA

Current at stopped shaft (12 V):

800 mA

No-load speed (12 V):

625 rpm

Torque (12 V):

1.1 kg*cm (0.1 Nm)

Gear ratio:

51:45:1

Brushes:

Carbon, extra strength

Shaft diameter:

3 mm

Body dimensions:

26 x 12 x 10 mm

Weight:

9,5 g

Double-sided shaft:

NO

Length 24 mm
Voltage to 3.0 V
Voltage from 9.0 V
Motor - gear 50:1
Rotation speed 625 obr/min
Torque 1.1 kg*cm
Mass 10 g
Motor - shaft 3 mm
Voltage nominal 6.0 V
Package width 5 cm
Package height 1 cm
Package depth 3 cm
Package weight 0.01 kg
