Product description: Pivistation 5 Klarity Lite - IMX283 20 MPx camera with M16 lens - for Raspberry Pi 5 - ArduCam B0502
The ArduCam Pivistation 5 Klarity Lite is a versatile kit for advanced image analysis , designed for Raspberry Pi 5 users. Equipped with a high-quality Sony IMX283 sensor with a resolution of 20 MPx and a precise 16 mm C-mount lens , it allows you to record detailed and sharply contrasting images. The camera supports various recording modes, including 1080p at 50 fps and 720p at 120 fps. The set includes a 32 GB microSD card with a pre-installed system and software , which allows you to quickly start working without additional configuration. The housing with active cooling and holes for a tripod ensures stability and mobility. It is a perfect solution for projects based on artificial intelligence, face recognition, fatigue detection or automatic image analysis.
Attention!
The Lite version does not include a Raspberry Pi 5. The minicomputer must be purchased separately.

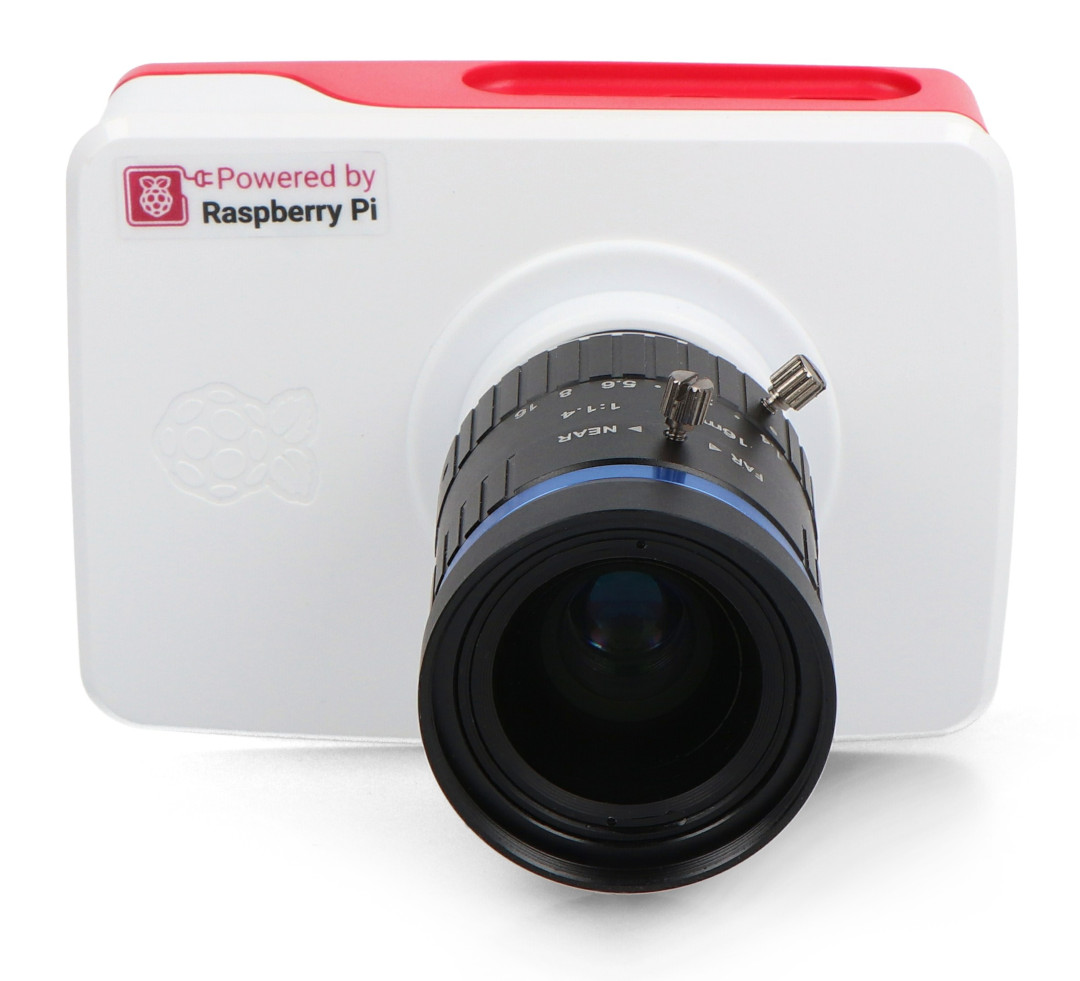

Pivistation 5 Klarity Lite - IMX283 20 MPx camera with M16 lens - for Raspberry Pi 5 - ArduCam B0502.

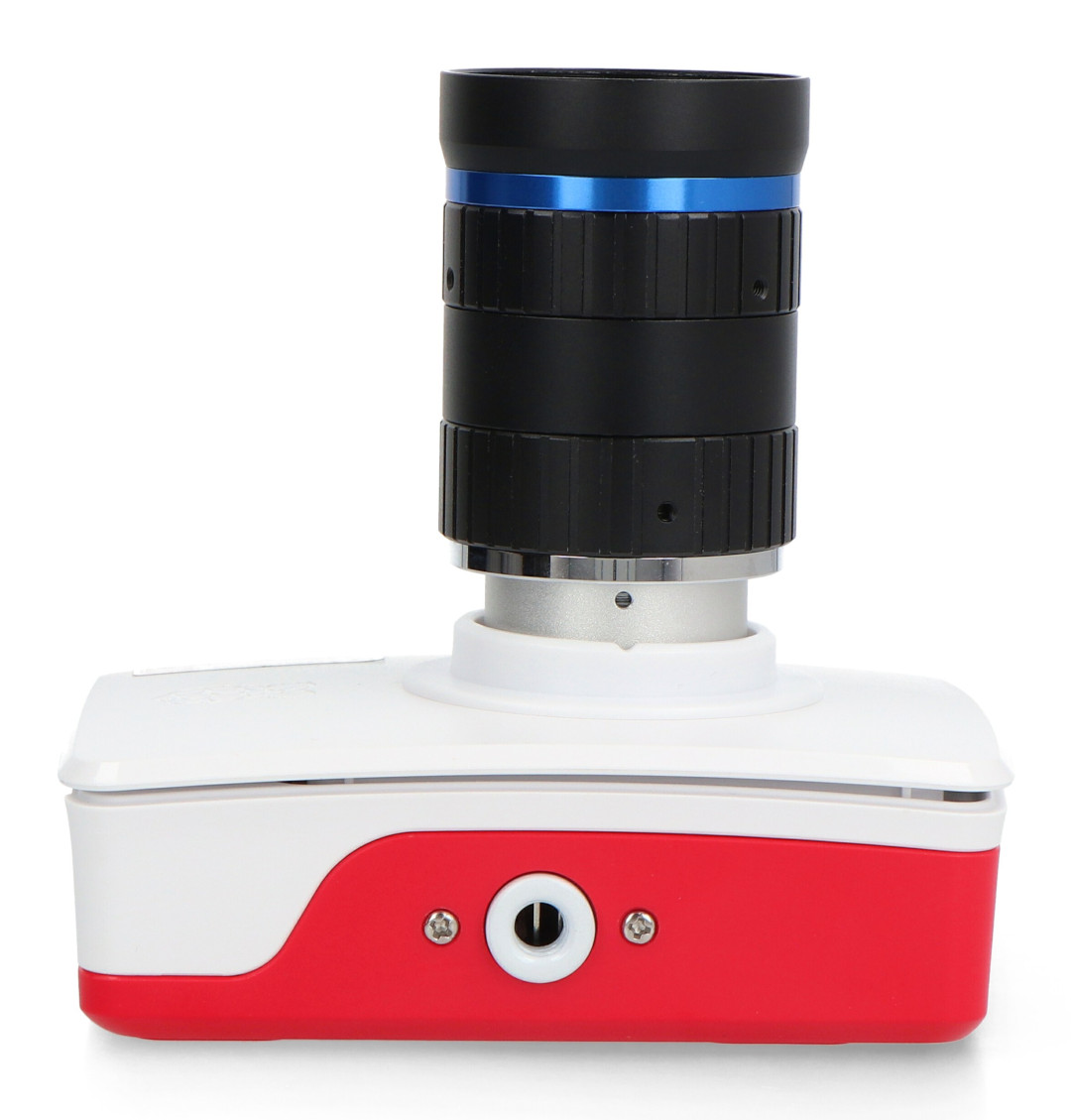

The housing allows the camera to be mounted on a tripod. The tripod is not included.
Key Features of Pivistation 5 Klarity Lite
- Professional image quality : Sony IMX283 matrix (20 MPx) guarantees detailed and sharp photos
- 16mm C-mount lens : provides a wide field of view and high image precision
- Ready to use : 32GB microSD card with pre-installed system and software
- High performance : supports resolutions of 5472 x 3648 px at 6 fps, 3840 x 2160 px at 8 fps, 2732 x 1538 px at 25 fps, 1080p at 50 fps and 720p at 120 fps
- Advanced software : supports OpenCV, TensorFlow, PyTorch, libcamera
- Stable housing : housing with cooling and tripod holes for mobility
- Compatibility : Designed to work with Raspberry Pi 5 (not included)
Camera applications in practice
ArduCam Pivistation 5 Klarity Lite is suitable for a variety of projects, such as:
- Facial recognition and emotion detection - ideal for AI projects and automatic monitoring
- Image analysis and anomaly detection - useful in quality control and security systems
- Object recognition - use in robotics and intelligent systems projects
- Vision systems for IoT - possibility of integration in intelligent solutions
- Research and development - a great tool for scientists and students

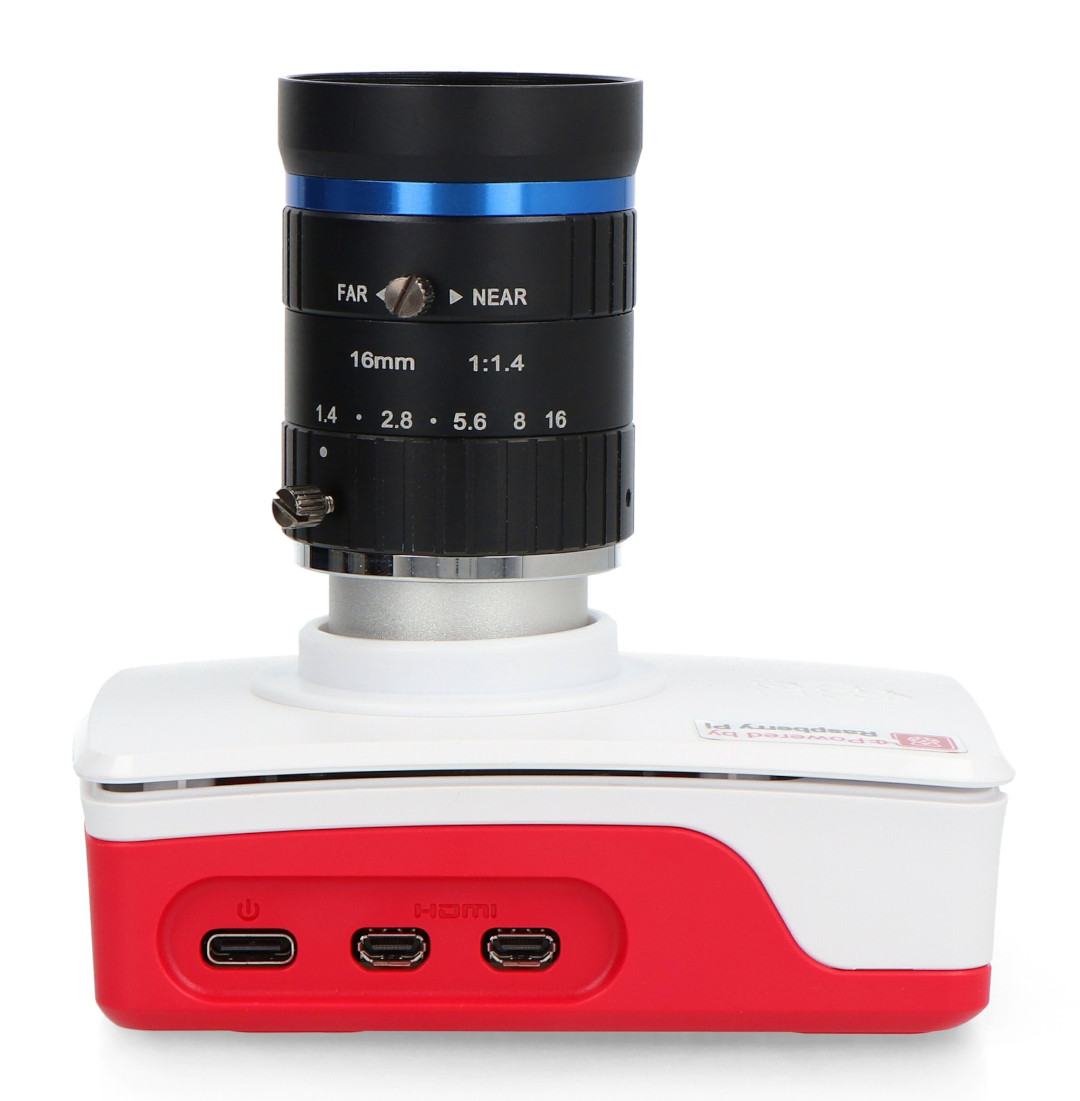

The Pivistation 5 has a USB Type-C socket and miniHDMI ports.

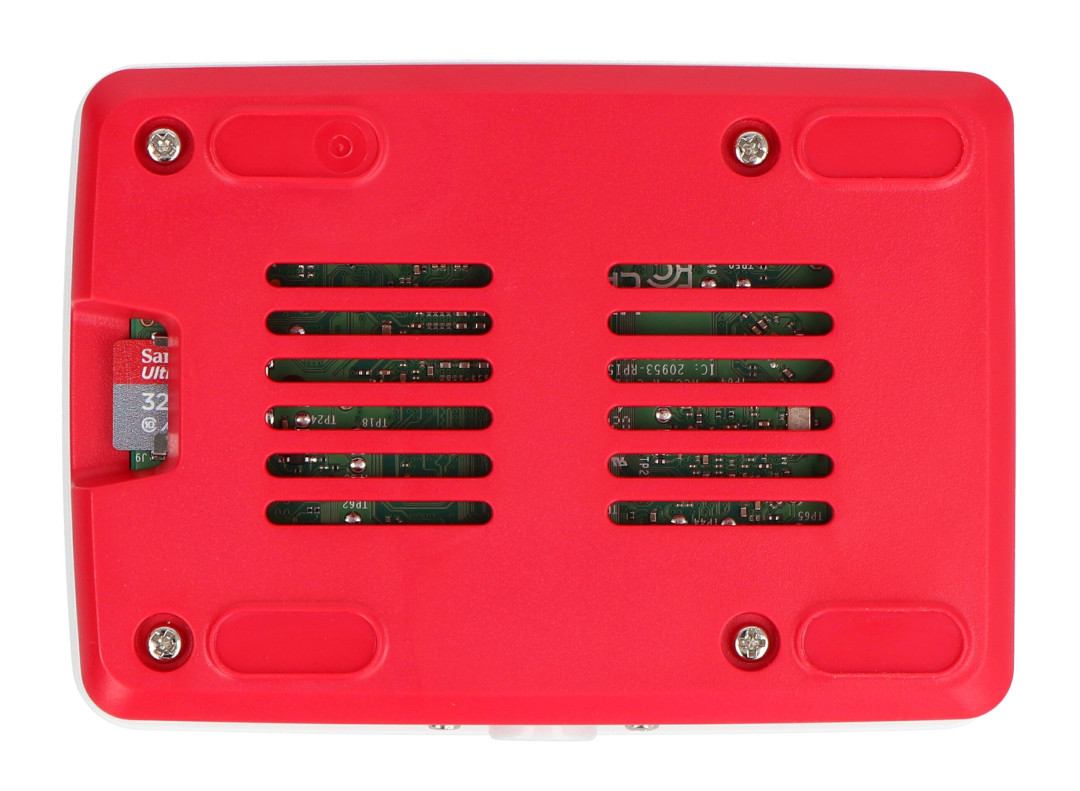

The set includes a 32 GB microSD card.
Pivistation 5 Software
The Pivistation 5 Klarity Lite is ready to go right out of the box with a 32GB microSD card pre-installed with Raspberry Pi OS (Bookworm) and image analysis tools. Software includes OpenCV-Python, TensorFlow, PyTorch, libcamera and rpicam-apps , allowing you to seamlessly implement your computer vision projects. Simply insert the card into your Raspberry Pi 5 and get started - no additional configuration required.
Camera Technical Specifications
- Sensor: Sony IMX283
- Resolution: 20MPx
- Color Filter Type: Color
- Shutter: Rolling shutter
- Pixel size: 2.4μm x 2.4μm
- Optical format: 1''
- Sensor output format: RAW10
- Platform Output Format: JPEG/YUV/RGB/RAW10
- Maximum Resolution: 5472 (H) x 3648 (V) @ 6 fps
- Lens: C Mount
- Focus type: manual focus
- Viewing angle (FOV): 60° (D) x 49° (H) x 38° (V)
- Lens Brightness (F.NO): F1.4-16
- Effective focal length (EFL): 16 mm
- Focus range: 5m to ∞
- IR Filter: Built-in IR-cut filter (visible light only)
- Case: Official Raspberry Pi case with cooling fan
- Operating voltage: 5V +/- 5%
- Power consumption: 7.5 W
- Compatibility: Raspberry Pi 5
- Supported Operating Systems: Bookworm
- Pre-installed software:
- OpenCV-Python, TensorFlow, PyTorch
- Libcamera, RPicam-apps
- C++ application development environment
- Camera-streamer, ArduCam camera server
- Camera module dimensions: 38 x 38 mm
- Dimensions of the complete set: 99 x 70 x 101 mm
Contents of the set
- 1x ArduCam Klarity Lite Camera
- 1x Raspberry Pi Case with Cooling Fan
- 1x 32GB SD card with pre-installed software
Items included in the set.
