Product description: ArduCam OV5647 5 Mpx camera for Raspberry Pi compatible with original version
Camera module connected to dedicated connector of Raspberry Pi minicomputer version A, B, B+,2, 3, 3B+, 4B. The device has a 5 Mpx sensor, supports HD 1080 px mode. Raspberry Pi has hardware support for this camera, so the device does not consume CPU processing power.
|
A detailed description of the device can be found in the Wiki user guide and documentation. |

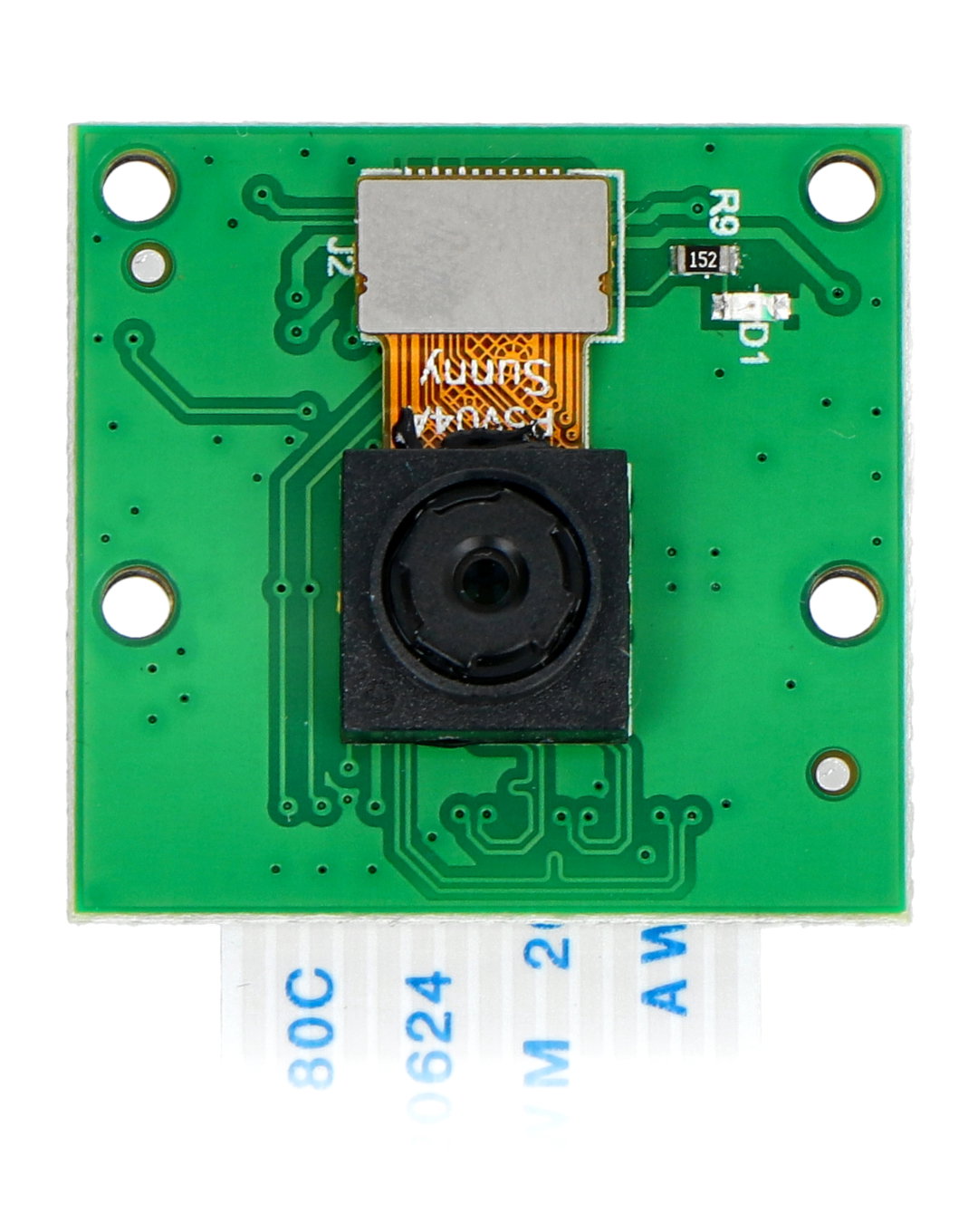

ArduCam OV5647 5Mpx camera.
Video showing how to connect the camera to the minicomputer.
Specifications
- Camera compatible with Raspberry Pi versions A, B, B+,2, 3, 3B+, 4B
- Sensor: 5 MPx
- Sensor: OV5647
- Viewing angle - diagonal: 72.4°
- It has 4 mounting holes
- Dimensions: 25 x 24 mm
Included
- 5 MPx camera
- Tape to connect with Raspberry Pi
ArduCam OV5647 5 Mpx camera for Raspberry Pi compatible with original version
Modern ArduCam OV5647 camera is a model compatible with original Raspberry Pi HD camera. It works with RP boards in versions A, B, B+,2, 3, 3B+, 4B.
You can use the camera in various electronic projects. It will be perfect for building automation and IoT systems, as well as in robots, drones, RC vehicles or interactive toys for children.
HD camera for Raspberry Pi
Using the ArduCam OV5647 with a 5 Mpx sensor, you can capture high-resolution video, which allows you to use it in a wide range of applications that require precise recording - for example, when creating IP surveillance systems.
The module has four mounting holes, which allows you to easily attach it to the surface of the Raspberry Pi. The camera is hardware-supported, so using it does not consume additional processing power and does not overload the board's processor.
