Product description: Feetech servo FT5320M - standard
Standard type servo by Feetech. It is poweredfrom 6 V to7.4 V. Current consumption without load is1000 mA. Range of servo movement is from 0° to 180°. It has a300 mmlong cable, which is terminated with a JR connector. The torque of the servo is 20 kg*cm. The kit includes several additional servo mounts and components needed for their assembly.
Feetech FT5320M servo standard type.
Technical drawing of the Feetech FT5320M servo.
Servo specifications
- Manufacturer: Feetech
- Model: FT5320M
- Supply voltage: from 6 V to 7.4 V
- Servo type: digital
- Servo range: 0° to 180°
- It has a movement limiter
- Storage temperature: from -30°C to 80°C
- Operation temperature: from -20°C to 60°C
- Cable length: 30 cm
- Orbit type: 25T / 9.5 mm
- Control:
- Stop position: 1500 µs
- Counterclockwise rotation: 1500 -> 2000 µs
- Maximum pulse range: 500 to 2500 µs
- Bearing: Ball bearing
- Degree of protection: IP54
- Connector: standard JR connector
- Servo dimensions: 55 x 20 x 43 mm
- Weight: 67 g
- Specifications for 6 V:
- Torque: 16.5 kg*cm
- Speed: 0.185 s/60°
- Current consumption when the shaft is stopped: 2,3 A
- No-load current consumption: 800 mA
- Parameters for 7.4 V:
- Torque: 20 kg*cm
- Speed: 0.151 s/60°
- Current consumption when the shaft is stopped: 3 A
- No-load current consumption: 1000 mA
Package contents
- Feetech servo FT5320M
- Set of pendulums
- Mounting elements
We also offer servocontrollers.

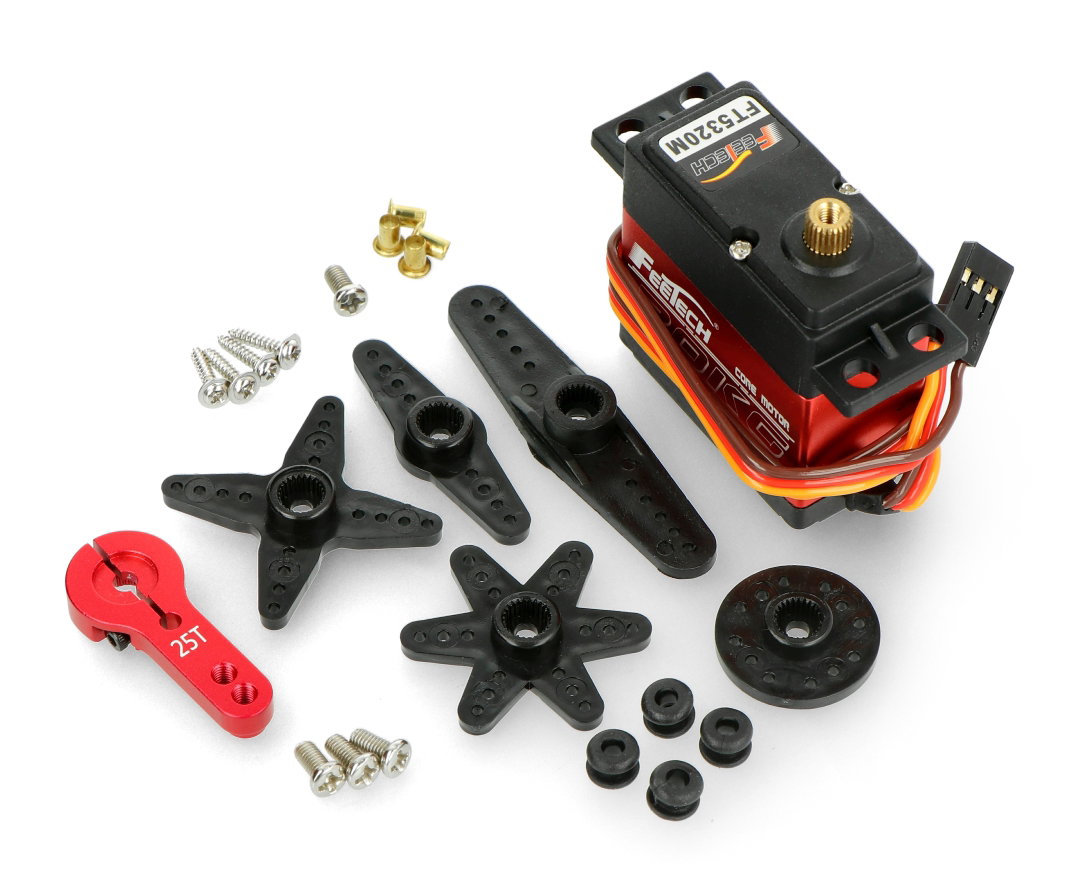

Contents of Feetech FT5320M servo kit.
