Specification
- Resolution: 200 steps/rev (1.8°)
- Rated voltage: 5.0 V
- Current consumption per coil: 1,7 A
- Coil resistance 3 Ω
- Winding inductance: 6 mH
- Holding torque 6.8 kg*cm (0.66 Nm)
- Shaft diameter: 5 mm
- Weight: 500 g
- Standard: NEMA 17
- Dimensions: 42 x 42 x 60 mm (without shaft)
Technical drawing and detailed data are available in the documentation.

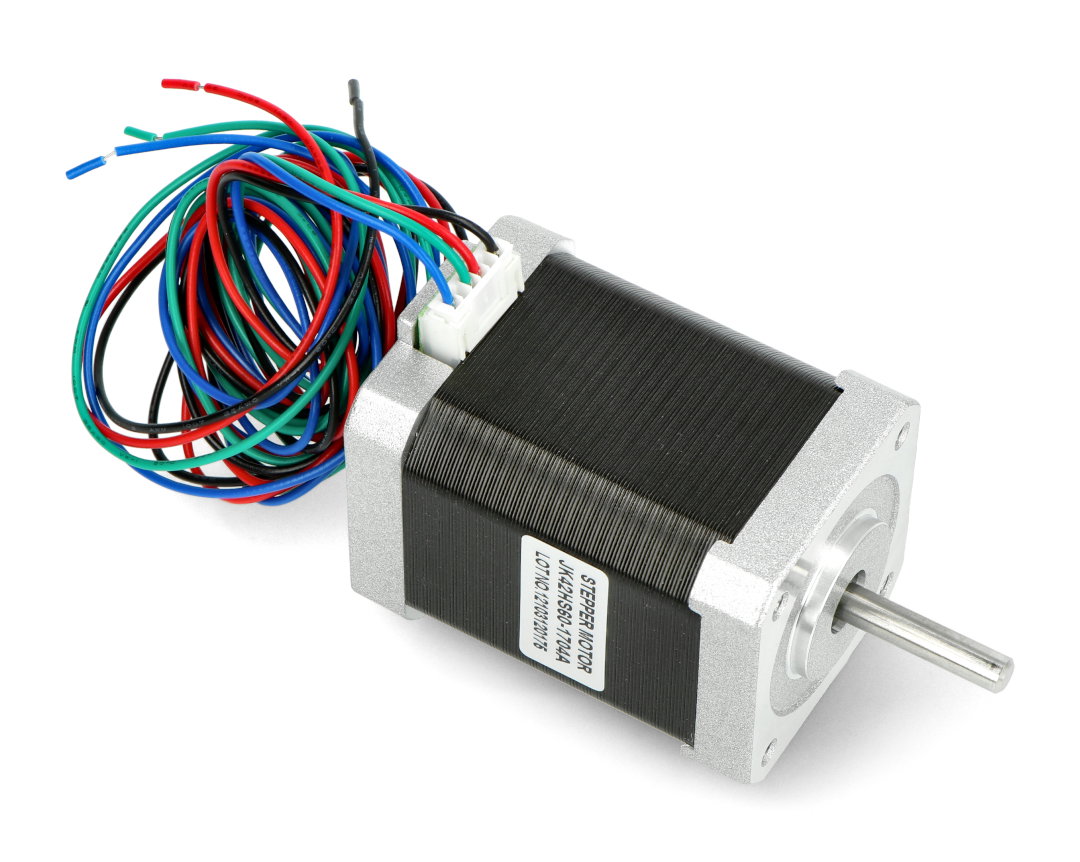

JK42HS60-1704A stepper motor 200 steps/rev 5 V / 1.7 A / 0.66 Nm.
Product description: JK42HS60-1704A stepper motor 200 steps/rev 5 V / 1,7 A / 0,66 Nm
Bipolar steppermotor equipped with a 4 pin connector. It has a resolution of 200 steps per revolution (1.8 steps). It is powered by 5.0 V and draws 1700 mA current per coil. The torque is 6.8 kg*cm (0.66 Nm). Dimensions are 42 x 42 x 60 mm (NEMA 17).
Accessories
There are also accessories available in our shop to make stepper motors easier to use:
- 5mm mounting hub - allows you to mount mechanical elements on the motor shaft
- Stepper motordriver - simple to use, small modules allowing to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.
Applications of stepper motors:
- printers
- CNC devices
- 3D printers
- laser devices
- manipulators
