DFRobot Micro Metal Geared Stepper Motor (12V 0.6kg.cm)
Small metal stepper motor with 100:1 gearing powered by 12 V. It has a resolution of 20 steps per revolution (18 degrees). Holding torque is 0.6 kg*cm (0.06 Nm). Dimensions are 31 x 15 x 15 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DFRobot stepper motor with 100:1 gearbox 12 V / 20 steps/0,06 Nm
Small metal stepper motor with 100:1 gearing powered by 12 V. It has a resolution of 20 steps per revolution (18 degrees). Holding torque is 0.8 kg*cm (0.08 Nm). Dimensions are 31 x 15 x 15 mm.

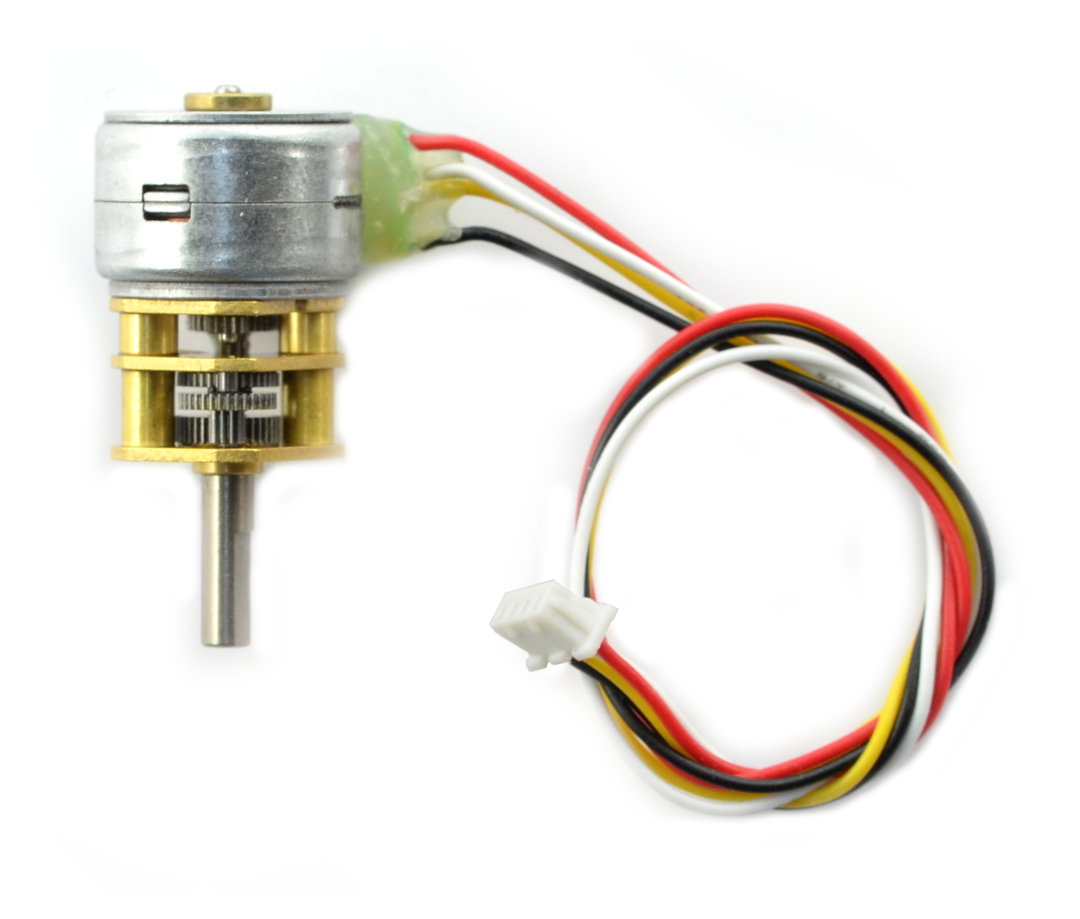

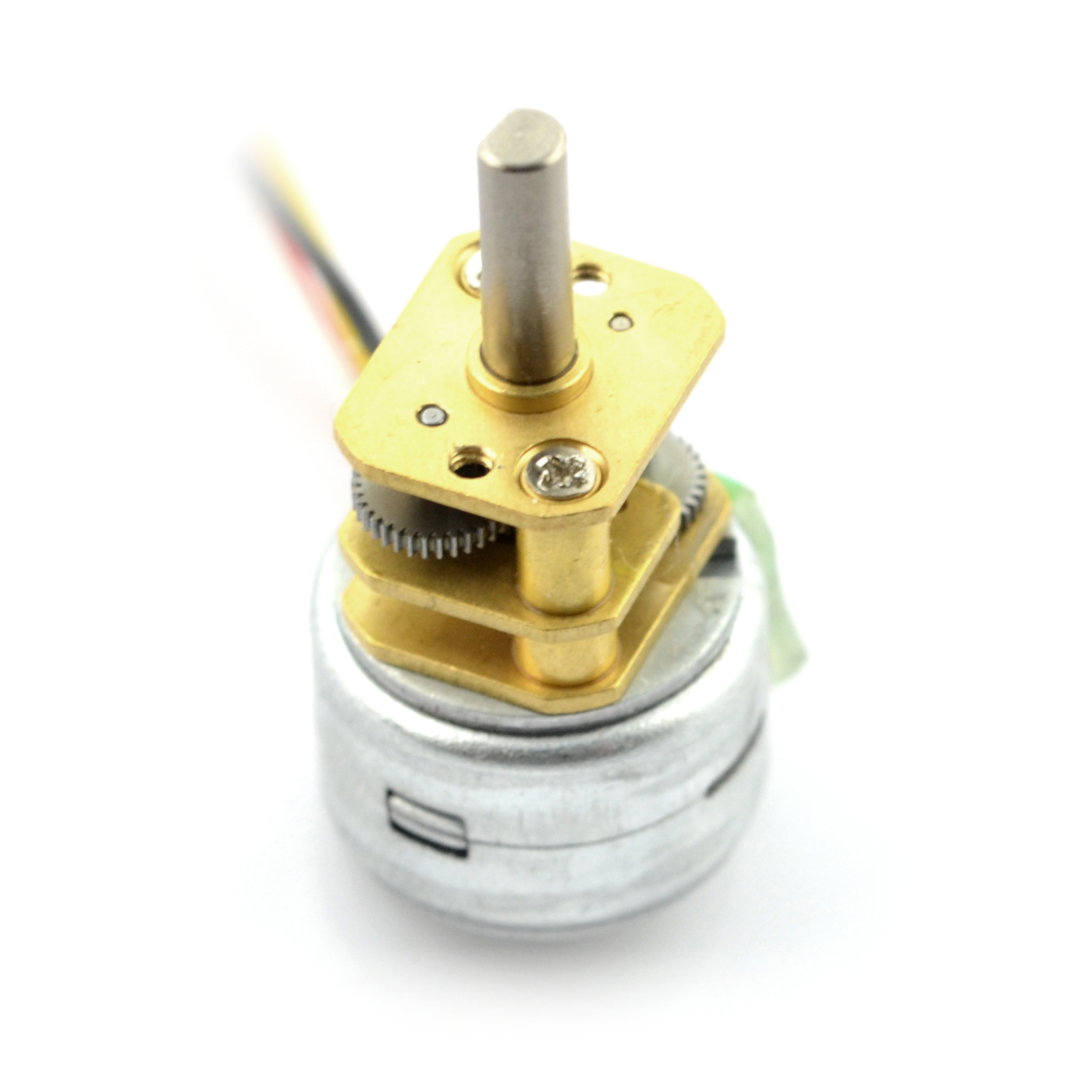

DFRobot stepper motor with gearbox.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
DFRobot stepper motor with gearbox 100:1 12 V / 20 steps/0.06 Nm.
Stepper motor specifications
- Stepper motor:
- Coil resistance: 30 Ω +/- 10 %
- 2 phases
- Number of steps: 20 (18 ° / step)
- Start frequency: 900 pps
- Rotation frequency: 1200 pps
- Pulling Torque: 6 g*cm (0.6 Ncm)
- Pushing torque: 10 g*cm (1 Ncm)
- Stepper motor with gearbox:
- Number of steps: 2000 (18/100 ° / step)
- Start frequency: 900 pps
- Rotation frequency: 1200 pps
- Pulling Torque: 0.5 kg*cm (0.04 Nm)
- Pushing torque: 0.6 g*cm (0.06 Nm)
- Gearing: 100:1
- Shaft diameter: 3 mm (D-shaped)
- Dimensions: 31 x 15 x 15 mm
- Cable length: 15 cm
- Weight: 14 g
Useful links
| Name | Value |
|---|---|
| Length | 15 mm |
| Width | 15 mm |
| Height | 15 mm |
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Torque | 0,6 kg*cm |
| Mass | 14 g |
| Motor - shaft | 3 mm |
| Voltage nominal | 12 V |
| Stepper - current: | 0.4 A |
| Stepper - coil resist. | 30.0 Ω |
| Stepper - resolution | 20 steps |
| Stepper - type | bipolar |
| Width | 5.8 cm |
| Height | 7 cm |
| Depth | 1.5 cm |
| Weight | 0.015 kg |
