STM32MP157F-DK2 Discovery - STM32MP157FAC1 + touchscreen 4"

Index: MAS-18892 EAN: 5904422365042
Startup kit based on STM32MP157FAC1 microcontroller (Cortex-A7 800 MHz 32-bit + Cortex-M4 209 MHz 32-bit). Among other things, the board has a built-in 4" touchscreen display, 4 USB ports, an Ethernet port and a microSD card slot.
STM32MP157F-DK2 Discovery - STM32MP157FAC1 + touchscreen 4"
€156.00
€126.83 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: STMicroelectronics

Product description: STM32MP157F-DK2 Discovery - STM32MP157FAC1 + 4" touch screen

Startup kit based onSTM32MP157FAC1microcontroller (Cortex-A7 800 MHz 32-bit + Cortex-M4 209 MHz 32-bit). The module is equipped with a built-in4" touch screen display, 4 USB ports, Ethernet port and microSD card slot, USB C port, OTG connector, HDMI port and dedicated ports forArduino and Raspberryextensions. The board supports wireless communication viaBluetooth LEandWiFi.

The evaluation board supports Integrated Development Environments (IDE) such as IAR Embedded Workbench, MDK-ARM and STM32CubeIDE

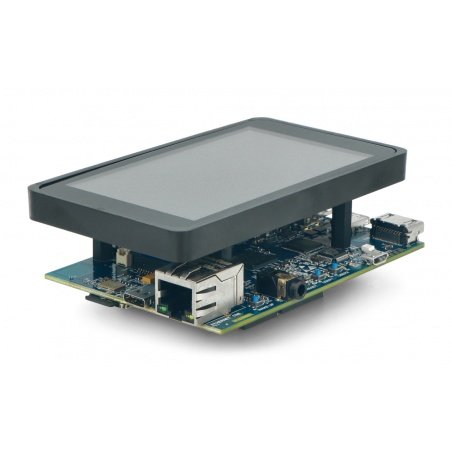

STM32MP157F-DK2 Discovery

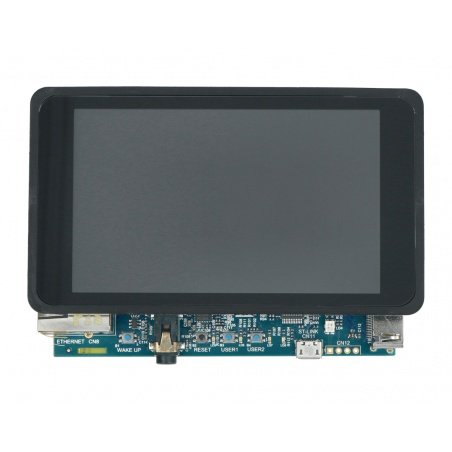

STM32MP157F-DK2 Discovery.

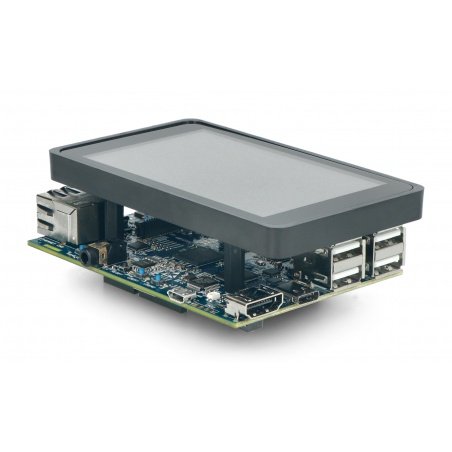

STM32MP157F-DK2 Discovery

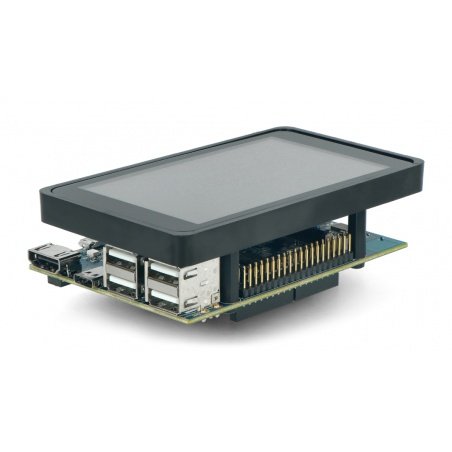

STM32MP157F-DK2 Discovery Development Kit.

The manufacturer provides theSTM32 MPU OpenSTLinux Distributionsoftware for the host processor andSTM32CubeMP1for the coprocessor along with examples to develop applications for theSTM32MP157F-DK2 Discovery runtime kit. The software is available in versions:

  • Starter package: demonstrates Linux capabilities on the STM32MP1 platform (demo code).
  • Developerpackage: A set of tools allowing you to add your own program, which can be run in the system.
  • Distributionpackage: Allows you to design your own Linux distribution, as well as your own Starter and Developer packages.

STM32MP157F-DK2 Discovery specification - STM32MP157FAC1 + 4" touchscreen

  • Microcontroller: STM32MP157
    • Core: Cortex-A7 800 MHz 32 bit + Cortex-M4 32 bit
    • Clock frequency: 800 Mhz / 209 Mhz
    • RAM: 4GB DDR3L
    • Chassis: TFBGA361
  • Debugger / Programmer: ST-Link v2(built-in)
  • Ethernet: 1 Gb/s IEEE-802.3ab compliant
  • 4 LEDs
  • Buttons:
    • 1 x RESET
    • 1 x WAKE UP
    • 2 x USER
  • Connectors on the board:
    • RJ45 - Ethernet
    • USB OTG
    • HDMI
    • Headphone (stereo) / microphone minijack
    • IO ports - compatible withRaspberry/Arduino UNO V3
    • MicroSD slot
  • Power supply: 5V / 3A - USB C

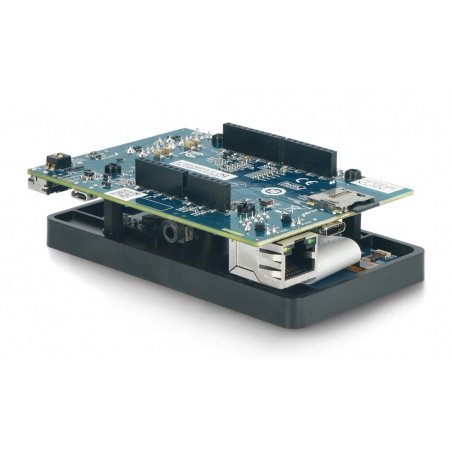

STM32MP157F-DK2 Discovery -  STM32MP157FAC1

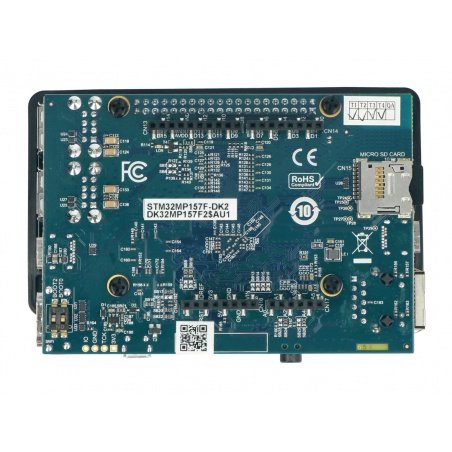

Board has connectors for Arduino and Raspberry overlays.

Package width 12 cm
Package height 7 cm
Package depth 17 cm
Package weight 0.3 kg
