STM32F411CEU6 - BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio

Index: DNG-19769 EAN: 5904422347536
BlackPill version 3.1 board equipped with STM32F411CEU6 microcontroller, USB type C connector, additional user programmable button, LED, built-in RTC clock, 16-channel A/D converter. It has 512 kB of Flash memory and 128 kB of SRAM memory. Popular SPI, I2C, USART and SDIO interfaces are also available. Included with the board are 2 20-pin goldpin strips and a 4-pin strip.
STM32F411CEU6 - BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio
€9.50
€7.72 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio

BlackPill version 3.1 development board is equipped with STM32F411CEU6 microcontrollerUSB type C connector, additional user programmable button, LED, built-in RTC clock, 16-channel A/D converter. It has 512 kB of Flash memory and 128 kB of SRAM memory. Popular SPI, I2C, USART and SDIO interfaces are also available. Included with the board are two 20-pin goldpin strips and a 4-pin strip. The board can be programmed using external SWD programmer or with USB-UART converter (not included) and a bootloader preloaded on the microcontroller. Operating mode is configured using BOOT button. BlackPill can be programmed in MicroPython and Arduino.

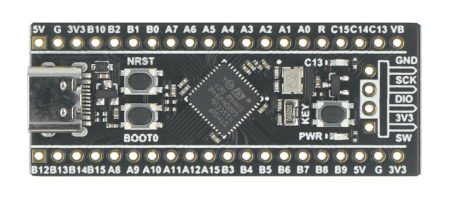

Płytka rozwojowa BlackPill v3.1 z mikrokontrolerem STM32F411CEU6 - WeAct Studio

BlackPill v3.1 development board with STM32F411CEU6 microcontroller - WeAct Studio.

Dokładne wymiary płytki BlackPill


Exact dimensions of the BlackPill board.


I/O pins on BlackPill board.

BlackPill board specification

  • STM32F411CEU6 100 MHz microcontroller
  • Core: ARM CORTEX M4 32-bit with FPU support
  • 25 MHz quartz oscillator and 32.768 kHz 6PF low speed quartz oscillator
  • Version V3.1
  • I/O interface 2 x 20 pin
  • Interface support:
    • 3 x USART
    • 3 x I2C
    • 5 x SPI
    • 1 x USB
  • Buttons:
    • reset key
    • BOOT0 button
    • User (PA0) key
    • NRST reset key
  • Use of latest original ST chip
  • Flash memory: 512 kB
  • SRAM: 128 kB
  • Supply voltage: 3.3 V to 5 V
  • Port: USB type C
  • SWD debugging connector
  • Power and user LED
  • Gold plated pins
  • Support for MicroPython programming with MicroPython software available
  • Support for Arduino and C programming
  • Dimensions: 53 x 21 x 5 mm

Kit contents

  • BlackPill v3.1 development board with STM32F411CEU6 microcontroller
  • 2 x goldpin 20-pin strip with 2.54 mm pitch
  • 1 x goldpin 4-pin raster 2,54 m

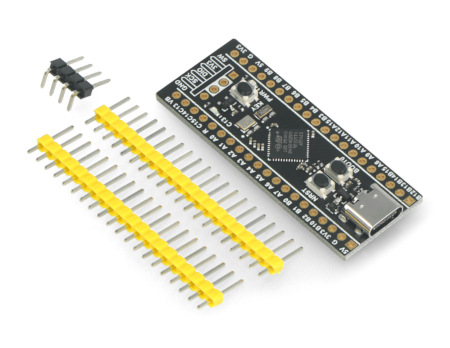

Zawartość zestawu

Elements included in the kit.

Package width 9 cm
Package height 1 cm
Package depth 6 cm
Package weight 0.01 kg
