STM32F3 - Discovery - STM32F3DISCOVERY

Index: DIS-00957 EAN: 5904422365004

Module based on STM32F303VCT6 microcontroller having Cortex-M4F core with hardware floating point unit. The board also includes: gyroscope, accelerometer with magnetometer and ST-LINK/V2 programmer/debugger.

€19.78
€16.08 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: STMicroelectronics

Product description: STM32F3 - Discovery - STM32F3DISCOVERY

The module allows you to implement projects based on the popular 32-bit microcontroller STM32 family. Thanks to Discovery, the user can discover the possibilities offered by the latest ARM Cortex M4F core with a hardware floating point unit. Software development is made easy by libraries and numerous examples available onSTwebsite. The user can also use the sensors available on the board: 3-axis accelerometer, magnetometer and gyroscope.

All you need to program the chip is aminiUSB cableand a programming environment such as the freeCooCox. The chip can be assembled usinga contact boardandconnecting wires.

Moduł STM32F3 Discovery z czujnikiem IMU

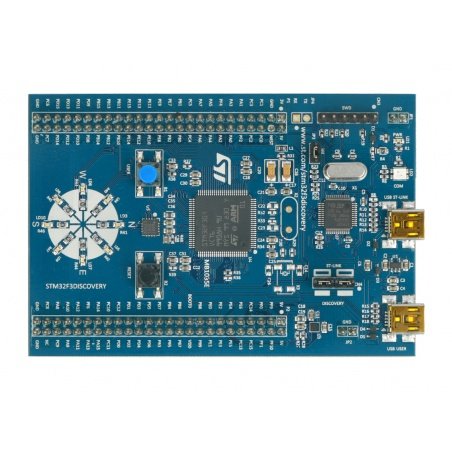

STM32F3 Discovery module with IMU sensor

Moduł posiada wyprowadzenia goldpin dla portów I/O.

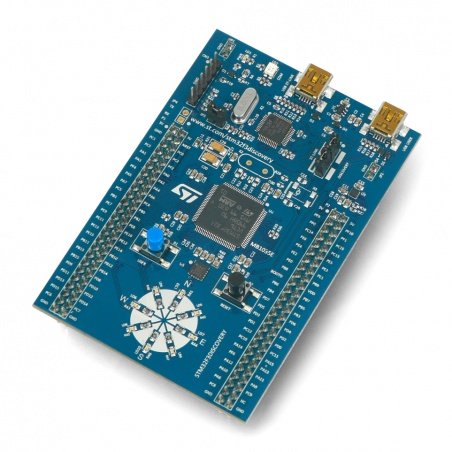

Module has goldpin connector for I/O ports.

Specification

  • Housing: L QFP64
  • STM32F303VCT6 microcontroller:
    • Core: Cortex M4F
    • 72 MHz clock speed
    • 256 kB Flash
    • 48kB RAM
    • Housing LQFP100
  • ST-Link/V2 debugger placed on board with possibility to work as a separate device with SWD output
  • Circuit powered from USB or external source: 5V/3.3V
  • The board also includes:
    • 3-axis L3GD20 digital gyroscope
    • LSM303DLHC 3-axis digital accelerometer with magnetometer
    • 10 LEDs
      (eight user selectable)
    • Two buttons (user and reset)
    • MiniUSB connector
    • Goldpin pinouts for I/O ports
  • Module dimensions: 96 x 65 x 18 mm

Detailed description, technical documentation and sample programs can be found on themanufacturer's website.
