Description

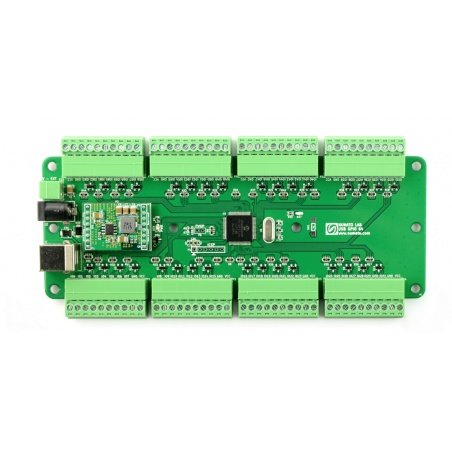

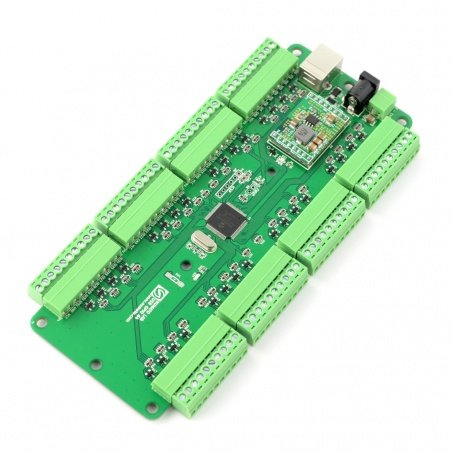

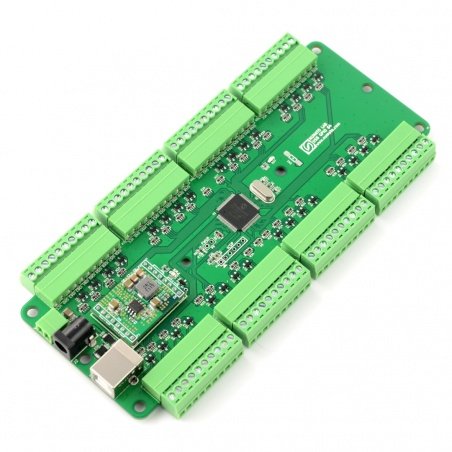

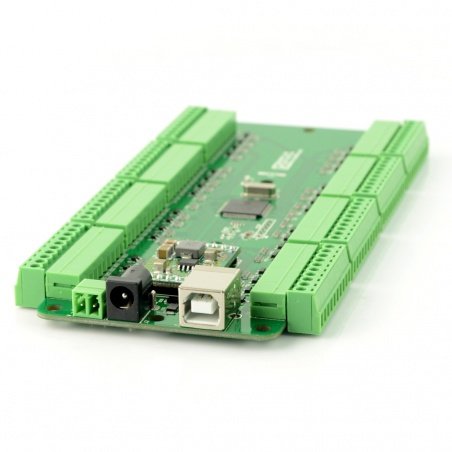

A module that allows you to manage any device with USB port. Communicates through UART interface. It has 24 analog inputs and 40 digital inputs / outputs. Outputs operate at voltage of 3.3 V.
|
The maximum performance of the outputs current is 25 mA, therefore, you should not connect it directly to the device, LEDs, etc. |
Service module
All pins can be individually programmed as inputs or outputs. The module can be controlled from any application with a serial console, for example, RealTerm. The device supports user-friendly commands, e.g. "gpio read 1" reads the GPIO 1 value. The full list is given in the user guide. The manufacturer also provides source codes of programs in different programming languages.
Specification
- The number of GPIO pins: 64 (screw terminal block connectors)
- The number of analog pins: 24
- Supply voltage: 5 V (USB type B or DC jack)
- The maximum performance of the outputs IO00 - IO63 current: 25 mA
- Working voltage of pins: 3.3 V
- Resolution of the A/C teansmitter: 10-bit
- Connector: miniUSB (wire soldseparately)
- Module dimensions: 203 x 76 x 25 mm
| The manufacturer has prepared a detailed guide together with the module's manual. |
