Product description: DAC - AD5693R - 16-bit - I2C - STEMMA QT / Qwiic - Adafruit 5811
A product from Adafruit equipped with a 16-bit AD5693R digital-to-analogconverter , which is responsible for converting the digital signal from any microcontroller equipped with an I2C communication interface (e.g. Arduino) into an analog signal . It is characterized by high relative accuracy (INL), which is a maximum of ±2 LSB at 16-bit resolution. The module also has STEMMA QT / Qwiic connectors and soldering pads that require independent soldering of goldpin connectors (included).
The manufacturer has prepared a detailed user guide . You will find there, among others, a description of the system, the arrangement of pins and an example program code.
DAC - AD5693R - 16-bit - I2C - STEMMA QT / Qwiic - Adafruit 5811.

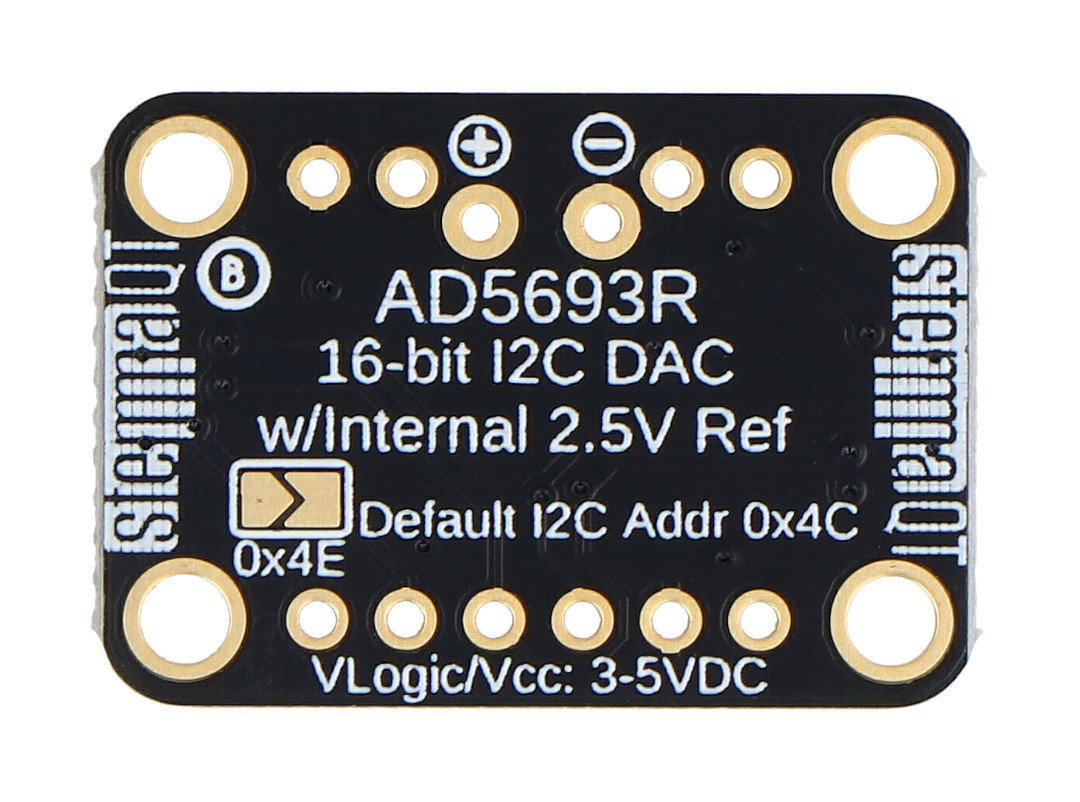

The board has terminals in the form of solder pads.

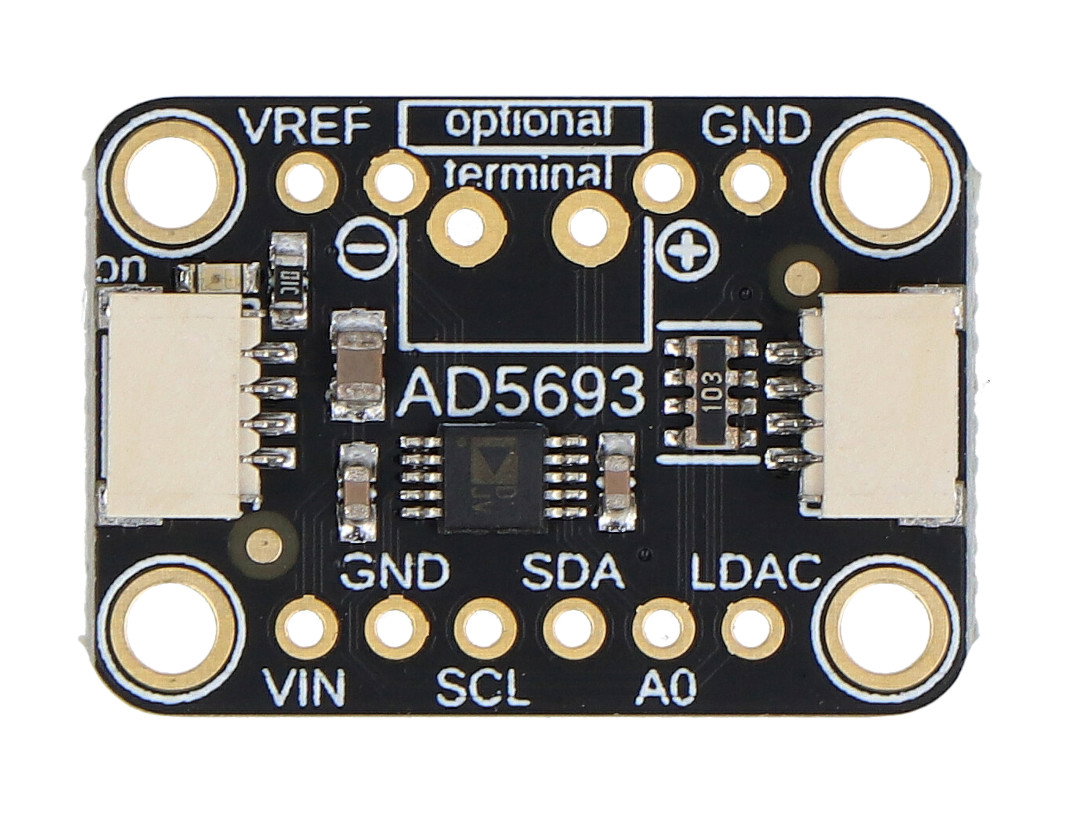

Description of the board pins
The board has two connection options - using standard soldering pads, to which the goldpin strips included in the kit should be soldered, or using STEMMA QT / Qwiic connectors, which do not require soldering.
- VIN - supply voltage from 3 V to 5 V,
- VREF - voltage reference pin,
- GND - system ground,
- SDA - I2C bus data line,
- SCL - clock line of the I2C bus,
- LDAC - DAC load pin; sends the contents of the input register,
- A0 - address pin for setting the I2C address.
Technical specifications of the module
- Module type: transducer
- Type: DAC digital-to-analog converter
- Built-in chip: AD5693R
- Resolution: 16-bit
- High relative accuracy (INL): maximum ±2 LSB at 16-bit
- Low drift, 2.5V reference voltage: 2 ppm/°C typical
- Selectable output range: 2.5 V or 5 V
- Total Uncorrected Error (TUE): ±0.06% of the maximum FSR value
- Offset error: ±1.5 mV maximum
- Gain error: ±0.05% of maximum FSR
- Communication interface: I2C bus
- I2C bus address:
- default: 0x4C
- configured: 0x4E
- Operating temperature range: from -40°C to 105°C
- Operating voltage: 3 V to 5 V (when powered through the Qwiic connector: 3.3 V)
- Pins: solder pads, 2x STEMMA QT / Qwiic connector
- Module dimensions: 25.2 x 17.6 x 4.8 mm
- Weight: 1.8 g
The operating voltage ranges from 3 V to 5 V DC.

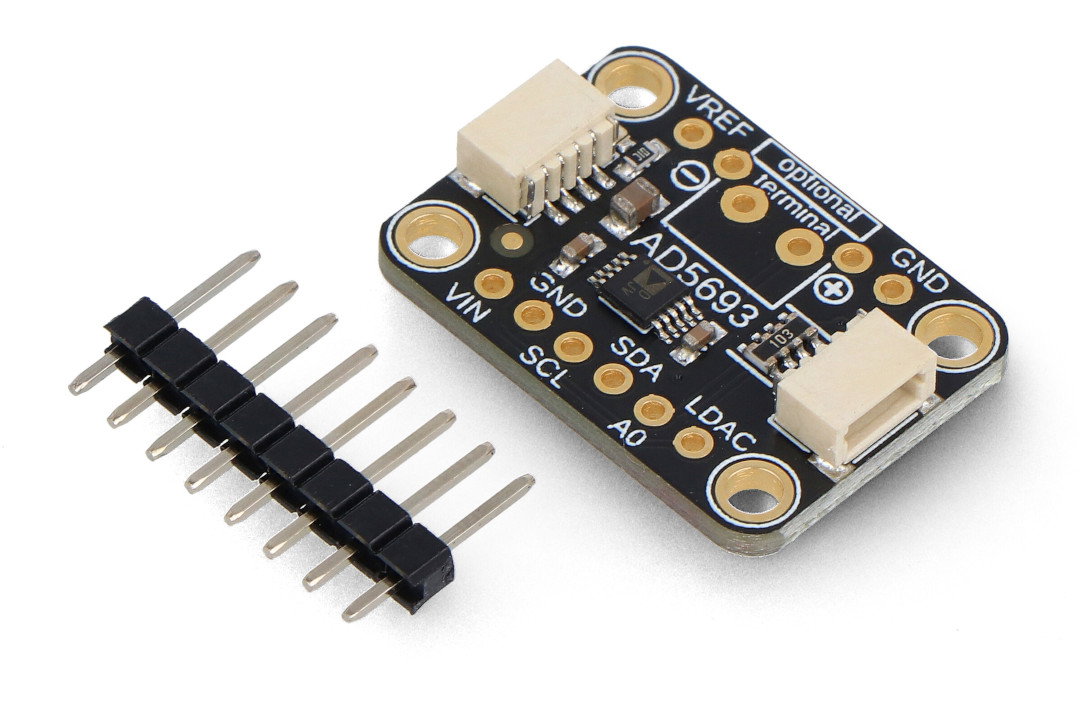

Elements included in the set.
Set contents
- DAC digital-to-analog converter - AD5693R - 16-bit - I2C - 1 piece
- Goldpin strip - 2.54 mm raster - 1 piece
