Description: Arducam IMX219-AF camera for Nvidia Jetson Nano - Programmable/Auto Focus - ArduCam B0181.
A dedicated NVIDIA JetsonNanominicomputer camera module with IMX219-AFsensor. The camera has aprogrammablefocus so there is no need foradditionaltools. A tape is included to connect the camera to the board. Additionally, the manufacturer provides a program on the GitHub platform that allows to implement Auto Focus function to our project.
The cameras work with Nvidia Jetson Nano mini-computer.
Application of the camera module
- Unmanned aerial vehicles
- Drones construction
- Autonomous vehicles
- Intelligent video analysis

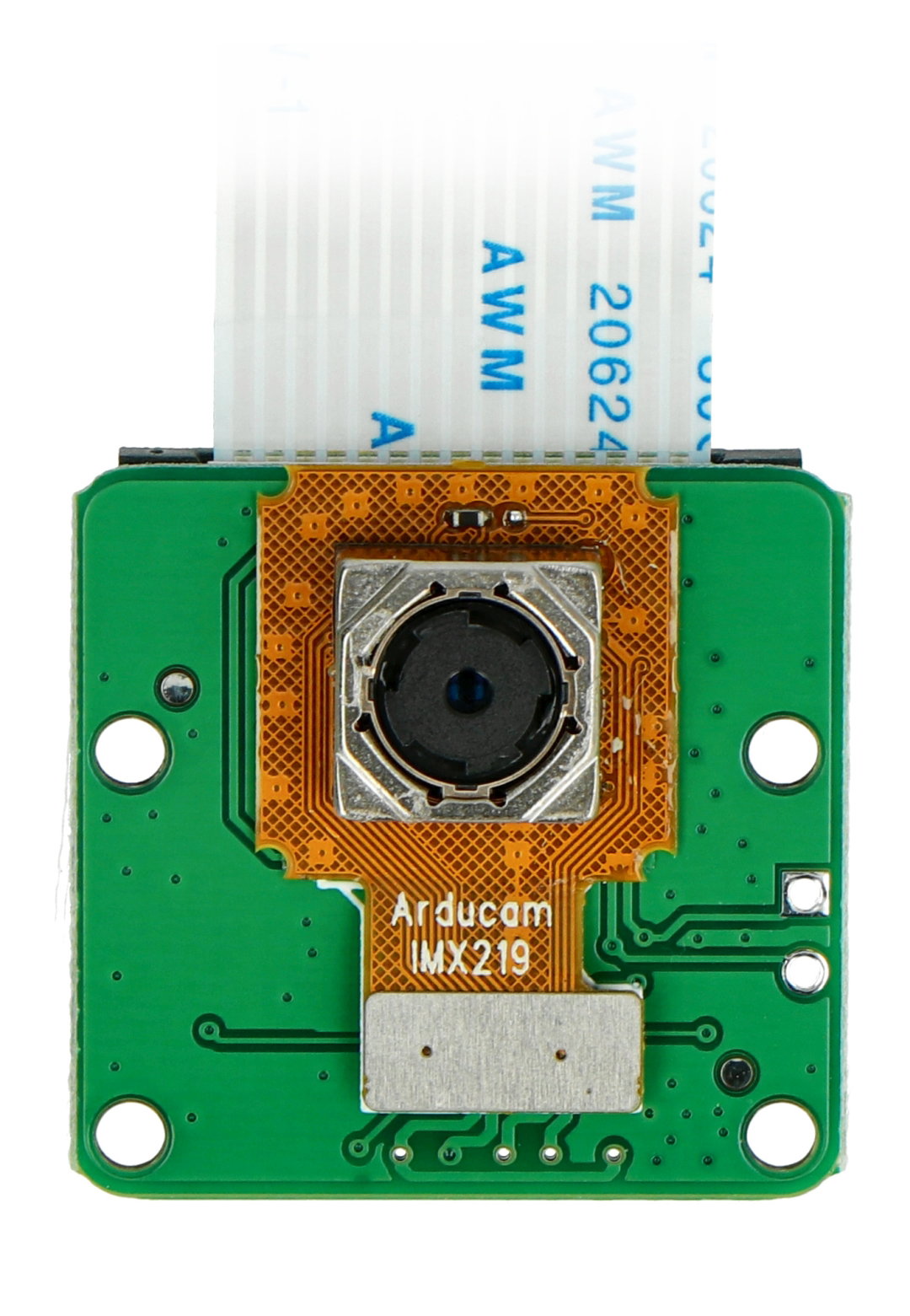

ArduCam IMX219-AF camera module.
Technical Specification
- Sensor: Sony 8Mpx IMX219-AF
- Format: 1/4"
- Frame rate: 30 fps at 8 Mpx / 60 fps at 1080p / 180 fps at 720p
- Focal length: 2.8 mm
- Curtain: 2.2
- Focus type: automatic / programmable
- Angle of vision: 77,6°
- Interface: MIPI CSI-2 2-line
- The camera has an integrated infrared filter
- Data format: RAW8/ RAW10
