Product description: Arduino Opta WiFi - microPLC controller - AFX00002
Arduino Opta is a microPLC controller that supports industrial IoT standards, which was created in cooperation with Finder , a company that creates industrial and building automation devices. The controller is based on the STM32H747XI dual-core ARM Cortex M7 + M4 chip, allowing the user to control and monitor in real time and implement preventive maintenance applications. Arduino Opta supports OTA firmware updates and ensures data security (hardware - cloud) with built-in security and X.509 compliance. All while maintaining Arduino Pro's signature ease of deployment in production with a wide range of readily available Arduino software libraries and sketches. Arduino Opta WiFi is equipped with a WiFi / Bluetooth Low Energy wireless communication system.

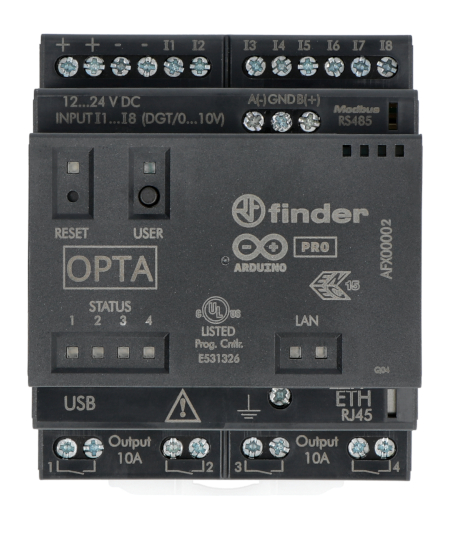

MicroPLC controller - Arduino Opta WiFi.
Arduino PLC IDE.Programming in Arduino PLC IDE
The Arduino PLC IDE was created to facilitate PLC programming. It allows you to choose any of the 5 programming languages defined in the IEC 61131-3 standard (Ladder, Function Block Diagram, Structured Text, Sequential Function Chart or Instruction List) and quickly code PLC applications or transfer existing ones to Arduino Opta or Portenta Machine Control .
Arduino Opta main features
- Easy and fast programming, starting with ready-made Arduino sketches, tutorials and libraries
- Optional support for standard IEC 61131-3 PLC languages
- Fieldbus integration over Modbus TCP (Ethernet) and Modbus RTU (RS485 serial)
- Seamless IoT connectivity (Ethernet / WiFi / Bluetooth Low Energy)
- Real-time remote monitoring via intuitive Arduino Cloud dashboards (or third-party services)
- Hardware-level security with built-in security and X.509 compliance
- Secure OTA firmware updates and cloud device management
- Switching high power relays (4x 2.3 kW)
- It has an industrial certificate
- Easy to install, DIN rail mounting
- It was created in cooperation with Finder

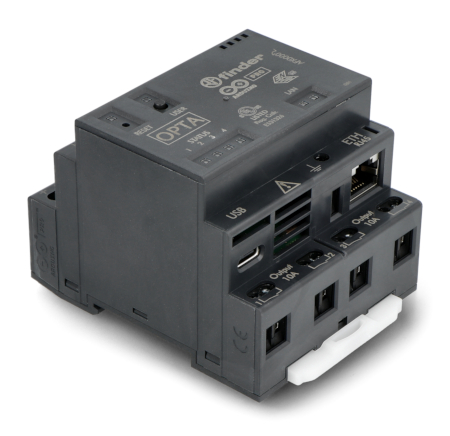

Arduino Opta WiFi.

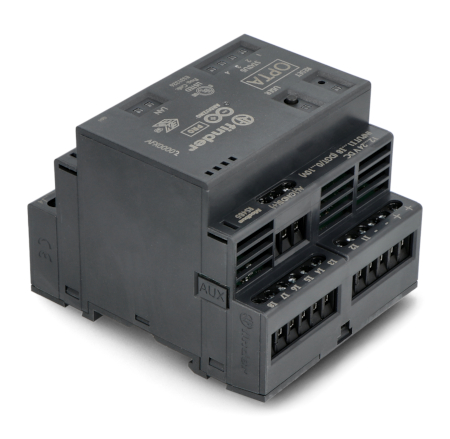

Arduino Opta was created in cooperation with Finder.Why Arduino OPTA?
- Powerful and reliable processor for real-time operations and preventive maintenance
- Programming in Arduino PLC IDE in one of the five IEC 61131-3 languages
- Easy to use, flexible, with extensive Arduino software libraries
- Available in three versions: Lite, RS485 and WiFi
Choose the version that suits your needs!
| Arduino Opta specification | |
|---|---|
| Microcontroller | STM32H747XI Dual Core |
| Cortex M7 clocking | up to 480MHz |
| Cortex M4 clocking | up to 240MHz |
| Configurable digital/analog input (0-10V) | 6 |
| Relays (250V AC / 10A) | 4 |
| programming port | USB-C |
| Ethernet | TCP/IP |
| Modbus TCP | |
| Bluetooth Low Energy communication | Arduino Opta WiFi |
| WiFi communication | Arduino Opta WiFi |
| RS485 protocol | Arduino Opta RS485 and Arduino Opta WiFi |
| Programmable serial ports | RS485 |
| input voltage | from 12 V to 24 V DC |
| Relay switching voltage | 230VAC |
| Maximum relay switching voltage | 400VAC |
| SDRAM memory | 1 MB |
| Flash memory | 2MB built-in + 16MB Flash QSPI |
| IP protection class | IP 20 |
| RTC | approx. 10 days, NTP synchronization via WiFi (AFX00002 only) or Ethernet |
| Security | ATECC608B |
| Arduino programming languages | via Arduino IDE, Arduino CLI, Arduino Web Editor |
| IEC-61131-3 programming | ladder diagram (LD), function block diagram (FBD), sequential function diagram (SFC), structured text (ST), instruction list (IL) |
| Dimensions | 69x80x90mm |
| Mass | 210g |
