Three-phase Solid state relay SSR Hoymk D4825HK 3x25A 380VAC / 32DC

Index: DLT-14507 EAN: 8718053813158

The Hoymk D4825HK three-phase relay is made in semiconductor technology and controlled with voltages from 3 V to 32 V DC. The maximum output voltage is 380 V.

Three-phase Solid state relay SSR Hoymk D4825HK 3x25A 380VAC / 32DC
€28.05 tax excl.
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: Three-phase solid-state relay SSR Hoymk D4825HK 3 x 25A 380 V AC / 32 V DC

SSRHOYMKthree-phase semiconductor relaycontrolledfrom 3 V to 32 V DC,capable ofswitching devices from 24 V to 380 V AC with25A for onephase.The relay is made of solid-state components and has a high sensitivity and high switching speeds of up to 10 ms.

Przekaźnik półprzewodnikowy trójfazowy SSR HOYMK D4825HK 3x25A.

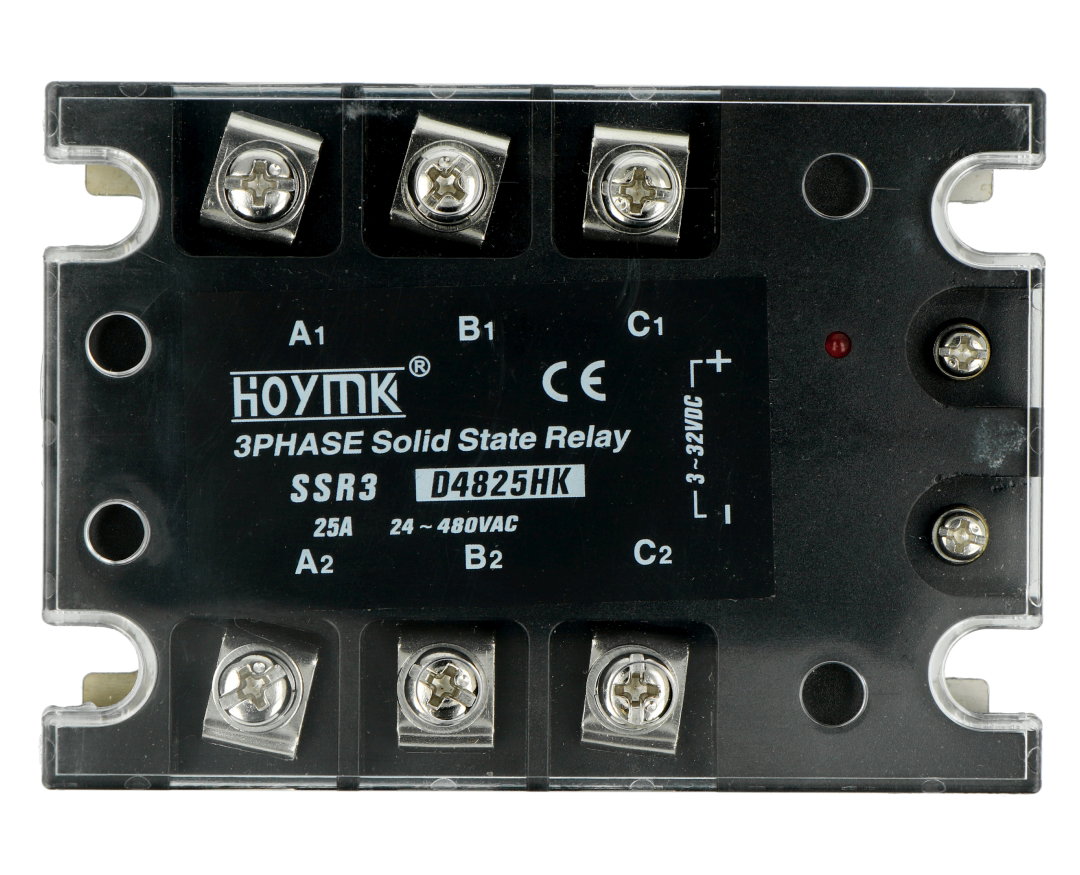

The SSR HOYMK D4825HK 3x25A three-phase solid-state relay.

The solid-state relays have another important advantage. The absence of moving parts translates into quiet and trouble-free operation. They are very popular in automatic control systems. In order to ensure long and stable operation under limit loads, it is recommendedto use heat sinks.

SSR HOYMK relay specifications

  • Output voltage: 24 V to 380 V AC
  • Control voltage at the input: 3 V to 32 V DC
  • Maximum current load: 25 A for one phase
  • Control current at the input: 10 mA to 25 mA
  • switching time: up to 10 ms
  • Insulation breakage voltage: ≥2000 V AC / 1 min
  • Operating temperature: -40°C to 80°C
  • Signal LED
  • Dimensions: 105 x 75 x 32 mm

Channels 3
Interface Digital I / O
Relay - coil od 3 V do 32 V
Package width 11.2 cm
Package height 4.5 cm
Package depth 8.2 cm
Package weight 0.45 kg
