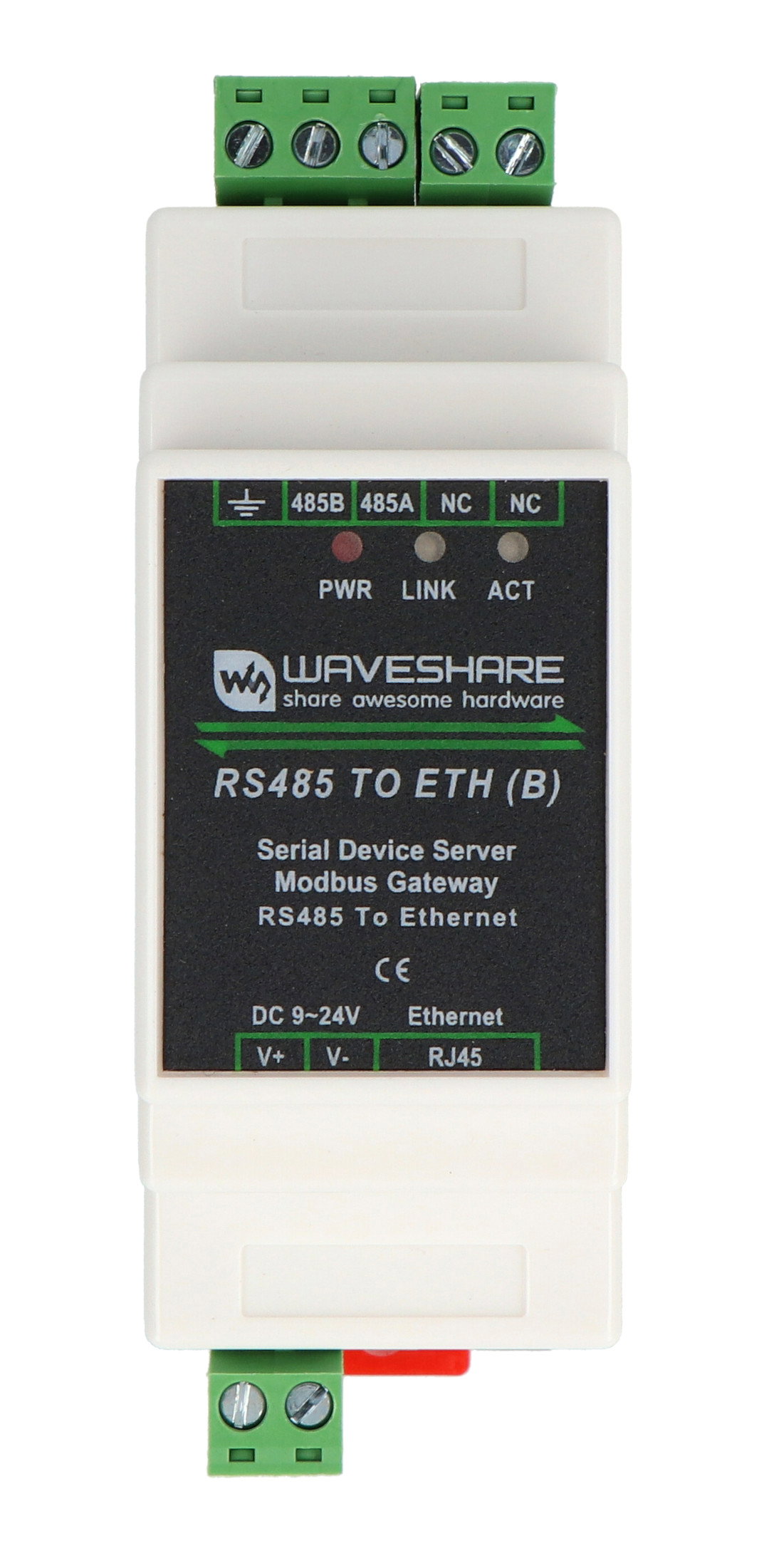

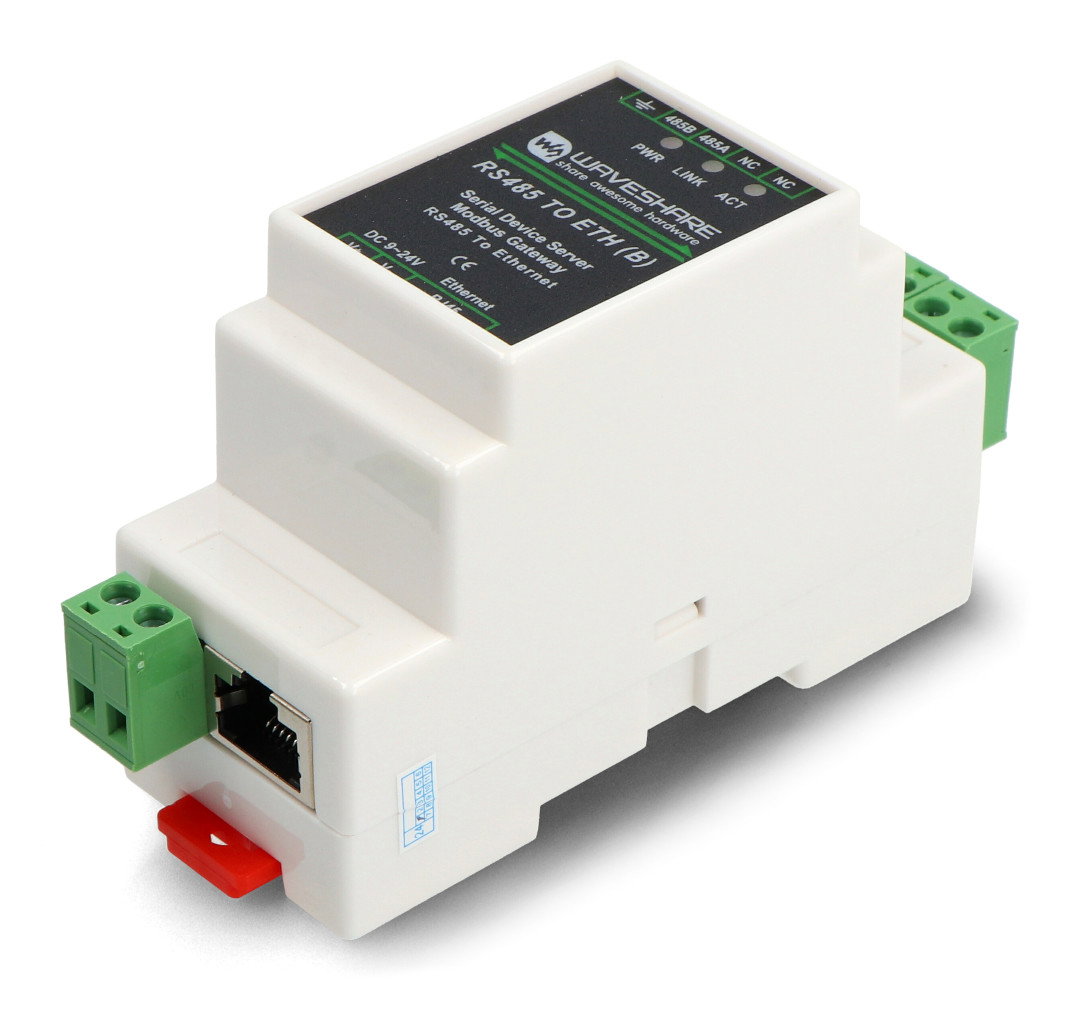

RS485/RJ45 converter - TCP/IP to serial port - Waveshare 20978
Converter enabling bidirectional communication between the RS485 and Ethernet interface. It offers supports protocols such as TCP/IP, MQTT and JSON, making it an ideal choice for remote monitoring and control of industrial devices. The converter is designed to be mounted on a DIN rail and can be freely connected in series.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RS485 / RJ45 - TCP / IP to serial port converter - Waveshare 20978
The Waveshare converter allows communication between the RS485 and RJ45 Ethernet interfaces in industrial environments. It supports multiple communication modes such as TCP server, TCP client, UDP server and UDP client. The module is configured via a web browser and allows obtaining a dynamic IP address via DHCP and using the DNS protocol. The converter supports a wide range of communication protocols , including TCP, UDP, HTTP, ARP, ICMP, DHCP and DNS on the Ethernet layer, which allows for remote management of devices. Additionally, it functions as a serial server, Modbus gateway, MQTT gateway and enables RS485 to JSON conversion. The DIN rail mounting bracket makes it easy to install and integrate with other IoT devices and control systems, making it a versatile monitoring and management tool in dynamic industrial environments.
The manufacturer has prepared a detailed user guide that will make working with the converter easier.
RS485/RJ45 - TCP/IP to Serial Port Converter - Waveshare 20978.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
Converter enabling bidirectional communication between the RS485 and Ethernet interface.
Special features of the converter
- Modbus Gateway: enables easy integration with systems based on the Modbus protocol.
- Multifunctional communication: supports various communication modes, including TCP server, TCP client, UDP server and UDP client.
- Power supply via screw terminals: simple and safe power supply of the device in the range from 6 V to 36 V DC.
- MQTT and JSON protocol support: enables flexible data conversion between different protocols, which is ideal for IoT systems.
- Multi-host support: allows you to communicate and manage multiple devices simultaneously.
- Host and Web Browser Configuration: Allows you to easily manage and configure the device from a browser.
- DIN rail mounting: facilitates installation and integration of devices in industrial environments.
- Industrial quality: rugged construction for reliability and durability in demanding industrial environments.
Multiple communication modes
The converter supports TCP server, TCP client, UDP and UDP multicast communication modes. allowing it to function as a TCP server and client at the same time. As a TCP server, it supports up to 30 connections, and as a TCP client, up to 7 target IP addresses. The transmission speed is from 1200 bps to 115200 bps , data bits from 5 to 9 and various types of parity are supported: none, odd, even, sign and space. The device can send the MAC address when connected, making it easier to manage in the cloud . It allows configuration via a web browser, dynamic IP acquisition via DHCP and connection to a domain server via the DNS protocol.
It supports a wide range of communication protocols.
Advanced software features
The converter supports the Modbus gateway function, enabling the conversion of Modbus RTU to Modbus TCP. It can operate in storage mode, automatically collecting and storing device data, or in storage-free mode. Supports multi-host functionality, allowing multiple computers to access the same serial device simultaneously. The device also functions as an MQTT gateway and JSON conversion to Modbus RTU and the 645 protocol. It supports data transfer in the HTTP POST and HTTP GET formats. Supports NTP to obtain network time, used for serial output and transmitting protocol content. It allows you to define heartbeat and registration packages, which facilitates communication with the cloud and identification of devices.
Technical specifications of the converter
- Product type: serial server, Modbus gateway, MQTT gateway
- Function: bidirectional RS485 to Ethernet transmission
- Communication interface: RS485, RJ45
- Power supply method: screw terminal
- Voltage range: 9V to 24V DC
- Ethernet communication: RJ45 network port
- Serial port: RS485
- Transmission speed: from 300 bps to 115200 bps
- Software:
- Protocol: Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration: host, web browser, device management library
- Communication method: TCP/IP direct communication, VCOM
- Operating mode: TCP server, TCP client (co-existing with TCP server), UDP, UDP multicast
- Operating temperature: -40°C to 85°C
- Humidity range: 5% to 95% relative humidity
- Dimensions: 106 x 36 x 58.6 mm

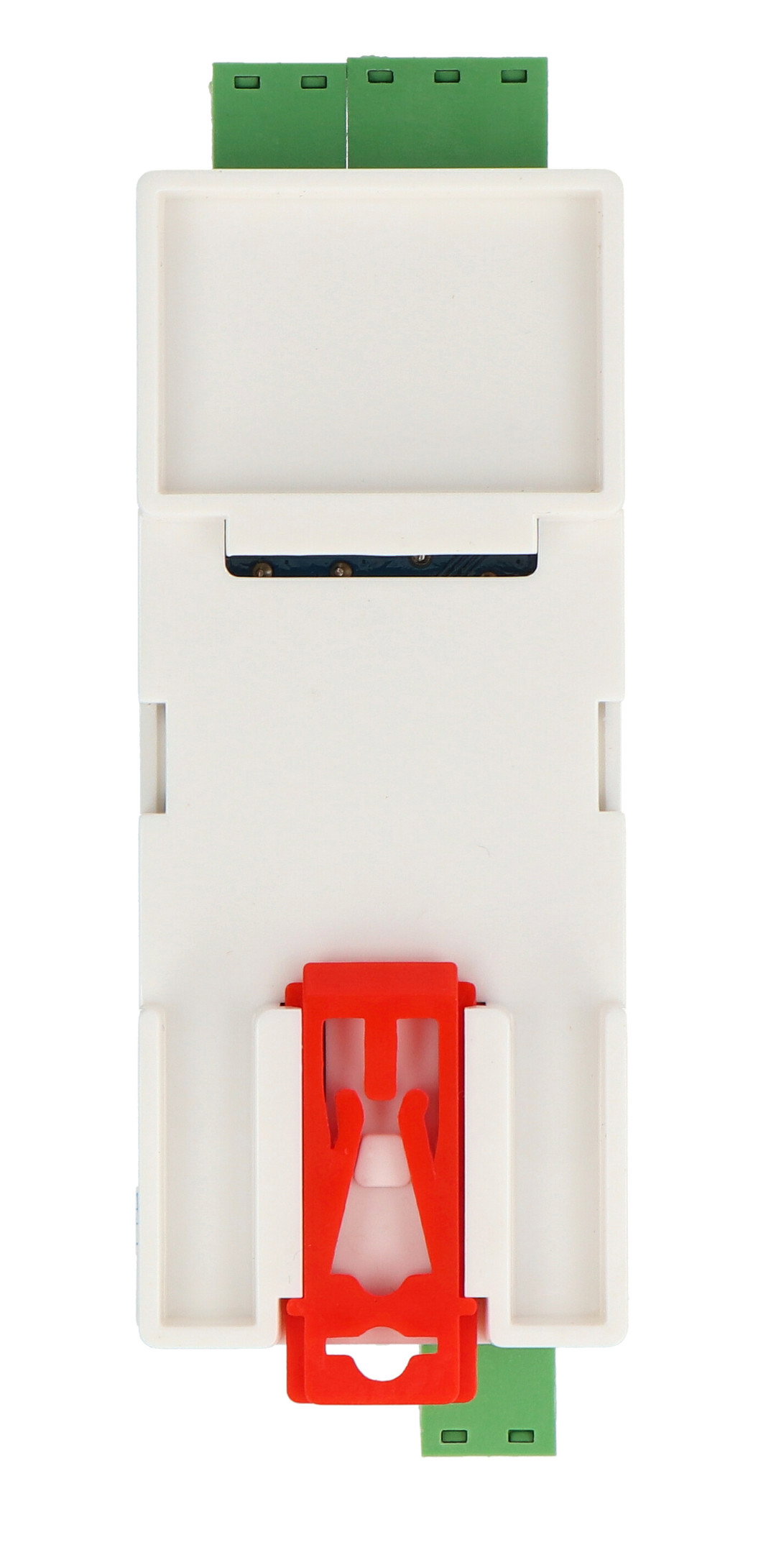

The converter is designed to be mounted on a DIN rail.
Useful links
| Name | Value |
|---|---|
| Converter - Socket | RJ45 |
| Converter - Interface | RS485 |
| Width | 13.7 cm |
| Height | 9.7 cm |
| Depth | 4.7 cm |
| Weight | 0.111 kg |
