Product description: USB-UART TTL converter PL2303 - USB type C socket - Waveshare 20645
Converter allowing communication between USB and UART serial interfaces at TTL level. Equipped with PL2303 chip, visible in the operating system as a virtual COM port. Operates at 1.8V / 2.5V / 3.3V / 5V, selectable via jumper. The device operates at full USB speed of 12 Mbps.

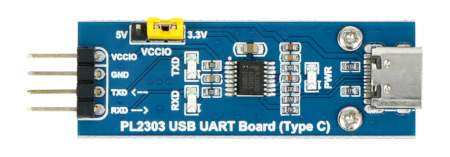

USB-UART TTL converter PL2303 - USB type C socket - Waveshare 20645.
Attention!
The module is compatible ONLY with TTL level, to avoid damage do not connect it directly to RS232 circuit.
USB-UART converter.
Special features of the converter
- Single chip USB to UART data transfer
- No external resistors required
- USB function controller complies with USB 2.0 specification; full speed 12 Mbps
- The module can be used to exchange data between a computer and a microcontroller system or to program boards with a derived serial interface, e.g. Arduino or STM32Discovery
- In the operating system it is visible as a virtual COM port
- It has 3 LEDs indicating power supply, sending and receiving data
Pinout description
- VCCIO - power supply 3.3 V or 5 V selected by jumper
- GND - ground
- TXD - UART transmitter pin, connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
- RXD - UART receiver pin, connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
Technical specification of the module
- Module type: converter
- Conversion type: USB C - UART TTL
- Embedded circuit: PL2303
- Supported systems: Windows XP/7/8/10/11/.
- 3x LEDs: TXD LED, RXD LED, POWER LED
- 3x VCCIO power mode by jumper setting:
- VCCIO-5 V: 5 V output
- VCCIO-3.3 V: 3.3 V output
- configurable by jumper: 1.8 V / 2.5 V / 3.3 V / 5 V
- Operating temperature range: -40°C to 85°C
- Module dimensions: 48.26 x 16.51 mm
Set contents
- PL2303 USB-UART TTL Converter - USB type C socket - Waveshare 20645
- 4pin connection cable

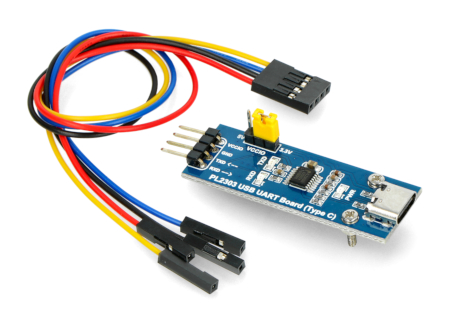

Contents of the kit
