E-paper E-Ink - I2C display module - 91 segments 1,9'' - Waveshare 22689

Index: WSR-22021
E-paper segment display with a diagonal of 1.9 ", consisting of 91 segments . The passive reflective screen is able to display a black and white image, the viewing angle is over 170 °. It uses the I2C interface for communication. It works with a voltage of 3.3 V and 5V
E-paper E-Ink - I2C display module - 91 segments 1,9'' - Waveshare 22689
€13.50
€10.98 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Arduino Raspberry Pi

Product description: E-paper E-Ink - module with I2C display - 91 segments 1.9'' - Waveshare 22689

A 1.9" e-paper segment display consisting of 91 segments . The passive reflective screen is able to display a black and white image, the viewing angle is over 170 °. It uses the I2C interface for communication. E-paper screens are characterized by very low power consumption, basically energy is only required for refreshing The module supports partial refreshing, the time of which is 0.3 s Segment e-paper displays are perfect for displaying values from temperature and humidity sensors , air humidifiers, etc. Module works with a voltage of 3.3 V and 5 V.

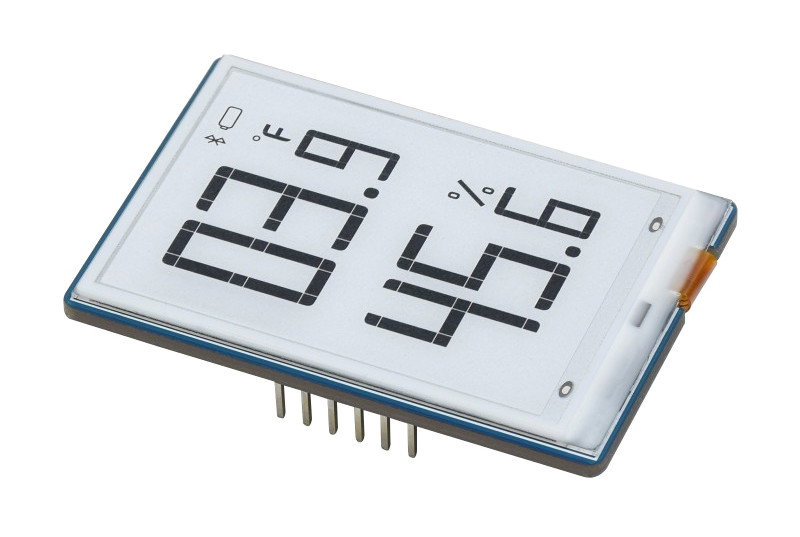

Module with e-paper segment display

E-paper E-Ink - module with I2C display - 91 segments 1.9'' - Waveshare 22689.

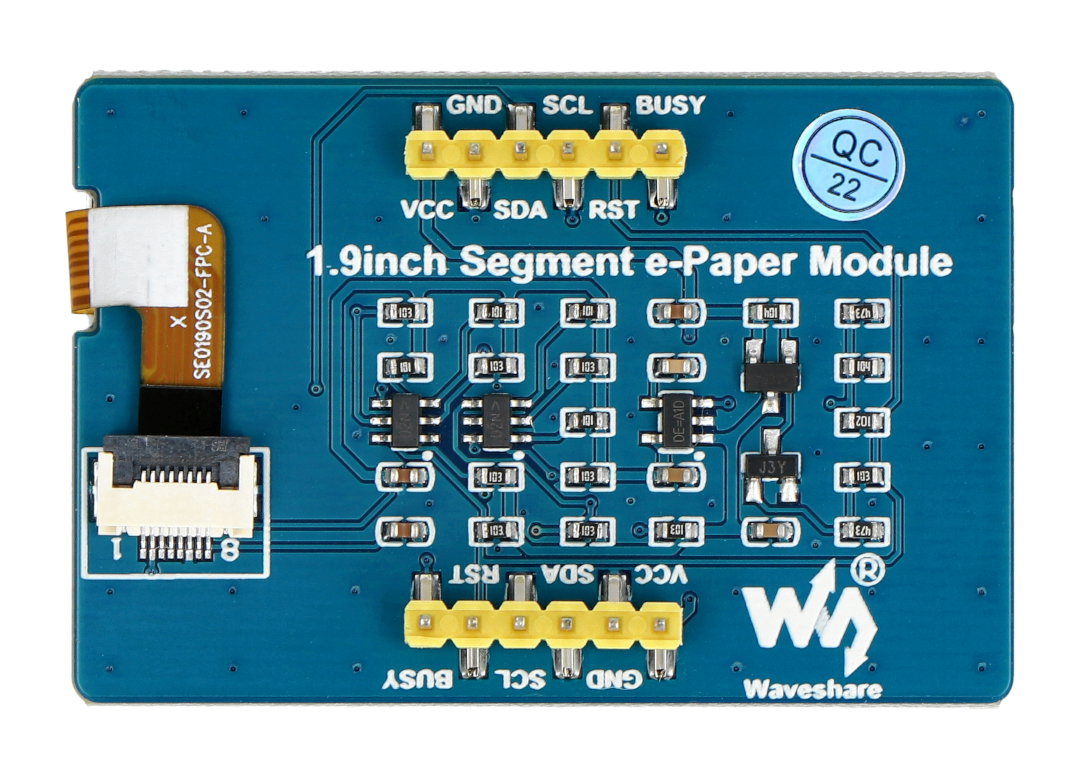

Module pins

Pins of the e-paper segment display module.

Main features of segmented e-paper screen

  • No backlight, it displays the last content for a long time, even when the power is disconnected
  • Very low power consumption, power only required for refreshing
  • I2C interface, compatible with Arduino , Raspberry Pi , STM32 , etc.
  • Built-in MOS voltage regulator, 3.3 V and 5 V power supply

The manufacturer has prepared a detailed guide for Arduino, Raspberry Pi and STM32 users with connection examples and program codes.

What is the "e ink e paper" display?

The e-paper display, also known as e-paper display, uses electrophoretic microcapsule technology to present data. This means that it mimics the appearance of standard ink found on traditional paper. This type of technology is extremely user-friendly - screens do not emit blue glow, are passively reflective and provide a wide viewing angle. All these features mean that our eyes do not get tired so much during use, and reading is even more enjoyable than before.

e-ink e-paper screen E-paper display.
Example of connection with Arduino Uno Example of connection with Arduino Uno.

Pins of the e-Ink display module

The e-paper display module uses the I2C interface to communicate with the microcontroller. Thanks to the applied voltage regulator, it can be powered with 3.3 V or 5 V.

  • VCC - supply voltage
  • GND - system ground
  • SDA - data line of the I2C bus
  • SCL - clock line of the I2C bus
  • RST - reset, activated by low state
  • BUSY - output pin of busy state, activated by high state

e-paper display specification

  • Supply voltage: 3.3 V or 5 V
  • Interface: I2C
  • Number of segments: 91
  • Display color: black and white
  • Grayscale: 2
  • Partial refresh time: 0.3 sec
  • Full refresh time: 2 sec
  • Refresh power consumption: less than 5mW (typical)
  • Standby current consumption: less than 0.01 uA (almost none)
  • Viewing angle: over 170°

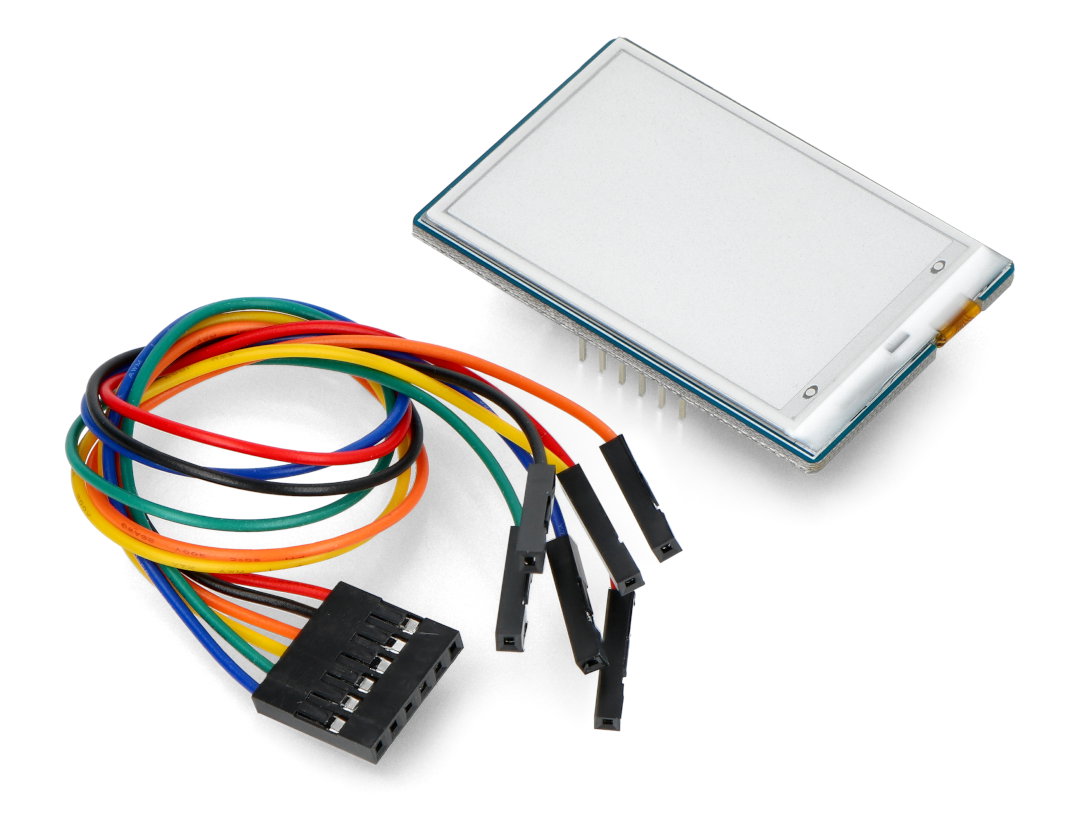

Kit contents

  • E-paper E-Ink - module with I2C display - 91 segments 1.9'' - Waveshare 22689
  • Connecting wire
Kit Contents Kit contents.

Screen - diagonal 1.9''
Package width 5 cm
Package height 2.2 cm
Package depth 7 cm
Package weight 0.023 kg
