Description

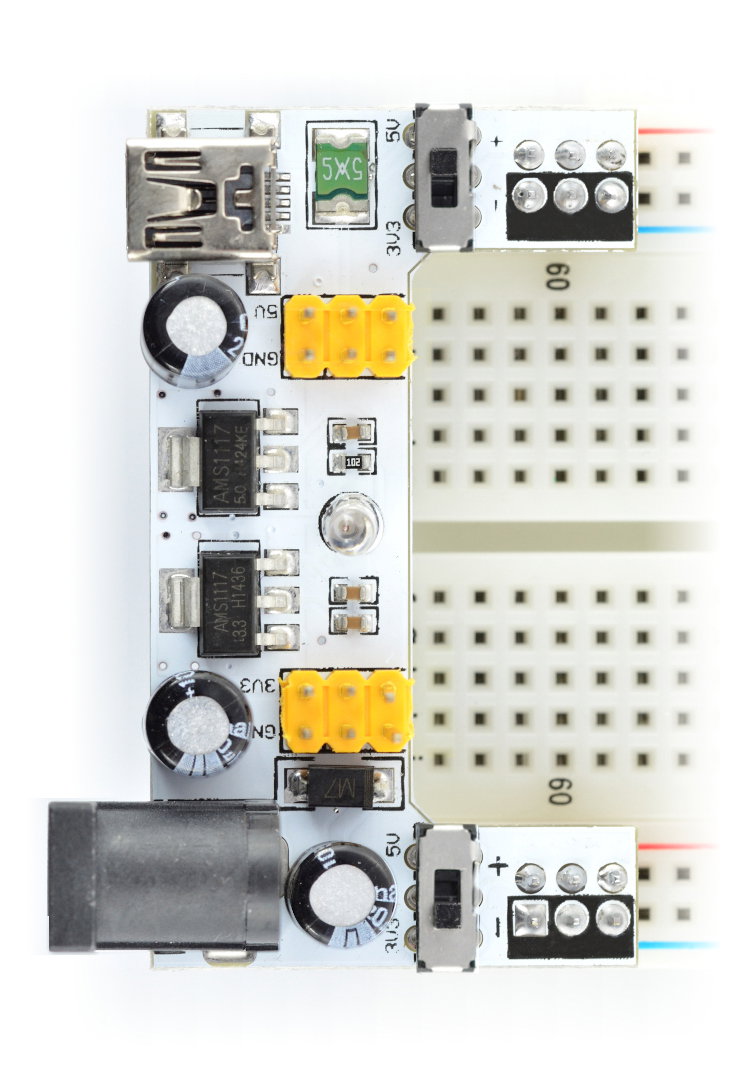

Power module with voltage of 3.3 V or 5 V selectable with a switch on each sideof the breadboard. The size of the device allows for better organization of the space onboard. Powered by mini-usb port voltage of 5 V ormains adapterwith a voltage of 12 V.
Specification
- Input voltage:
- power adapter DC 12V: connector 5,5 / 2,1 mm
- mini-usb port: 5 V -cablecan be purchased separately
- Output voltage:
- 3.3 V or 5 V selectable with a switch separately on each side of the breadboard
- Current: up to 800mA
- LED indicator of the module operation
The choice of the supply voltage
Output voltage selectable with switches on each sideof the breadboard. Featuring a user-value of 5 V and 3.3 V (on each line, you can choose any value). In addition, power will be connected using the connector located in the central part of the board using wires.
