Product description: Digital atmospheric pressure sensor - barometer - BMP280 - I2C - DFRobot SEN0372
Digitalatmosphericpressure sensor manufactured by DFRobot. It has an integratedBMP280chip from Bosch. The module integratestemperatureand atmospheric pressure - barometer sensors, including altitude. It is used to improveGPSpositioning or to realize 3D navigation in rooms withIMUsensor. Application of BMP280 chip makes the sensor small, compact and withlow power consumption. Measuring range for temperature isfrom 0°C to 65°Cwith an accuracy of +/- 0.01°C and for atmospheric pressurefrom 300 hPa to 1100 hPa with relative measurement accuracy of +/- 0.12 hPa.
Product compatible with Arduino
. The manufacturer prepared detaileduser guideandlibraryfor Arduino IDE environment.
Digital pressure sensor - BMP280.

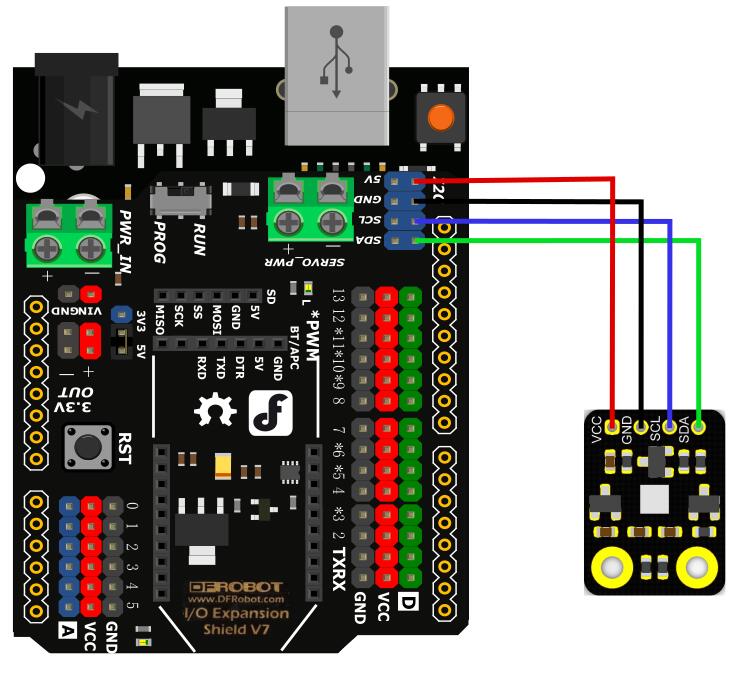

Example of sensor connection usingDFRduinoboard, Arduino equivalent. The board is not a part of kit, you can buy it separately in our shop.
Leads description and example connection diagram
The module hasleadsin the form of solderfields, to which you should solder includedgoldpin connectors. Connect thesensorto the microcontroller module according to the following description:
- VCC- power supply pin within the range from 3.3 V to 5.5 V
- GND- system ground
- SCL- I2C interface clock line
- SDA- I2C interface data line

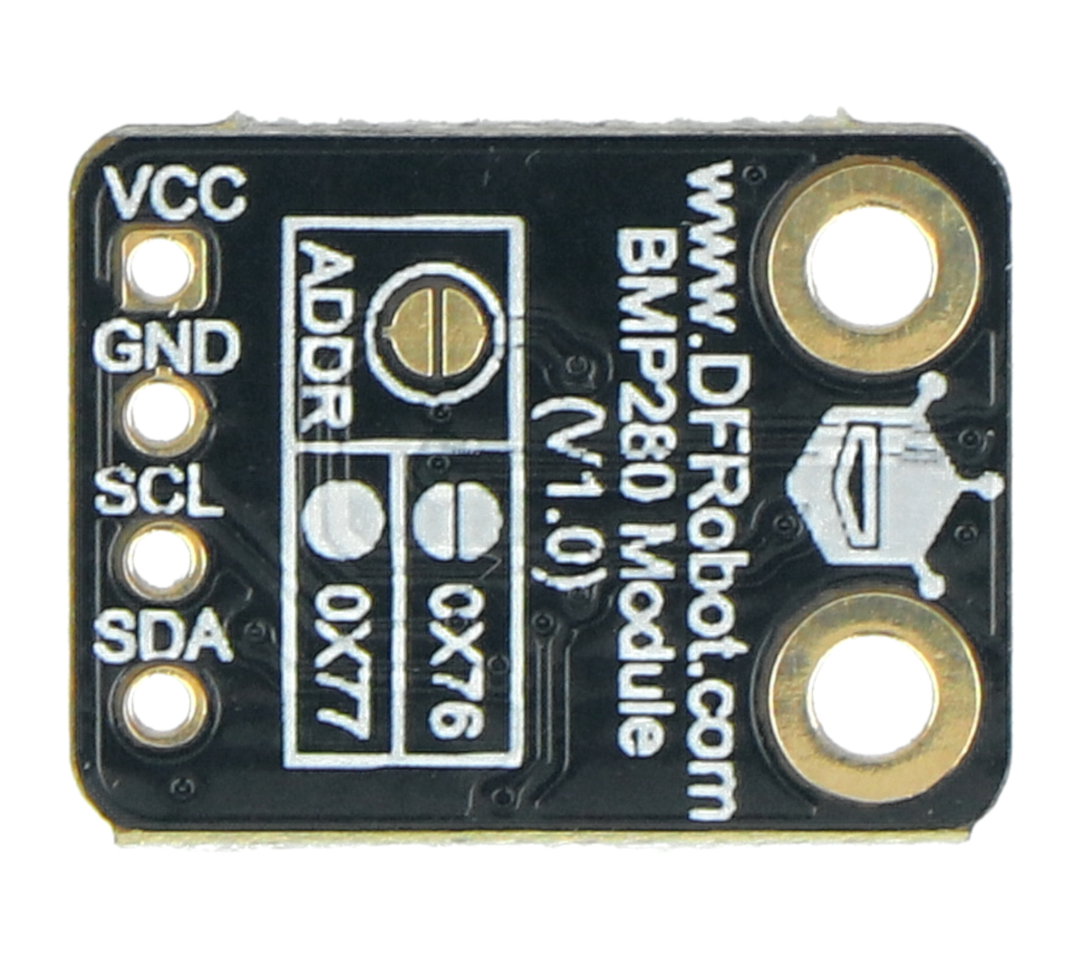

- ADDR- I2C address selector jumper
Technical specification BMP280 sensor
- Module: barometric pressure and temperature sensor
- Integrated circuit: BMP280
- Input voltage range: 3.3 V to 5.5 V
- Communication interface: I2C bus (5 V supported)
- I2C interface address:
- default: 0x76
- alternative: 0x77 (changeable via ADDR jumper)
- Temperature measurement range: 0°C to 65°
- Accuracy of measurement: +/- 0.01°C
- Range of pressure measurement: 300 hPa to 1100 hPa
- Relative measurement accuracy: +/- 0.12 hPa (+/- 1 m)
- Absolute measurement accuracy: +/- 1 hPa (+/- 8.33 m)
- Module dimensions: 18 x 11.5 mm
- Mounting hole:
- hole position: 13 mm
- internal diameter: 2 mm
- external diameter: 3.7 mm

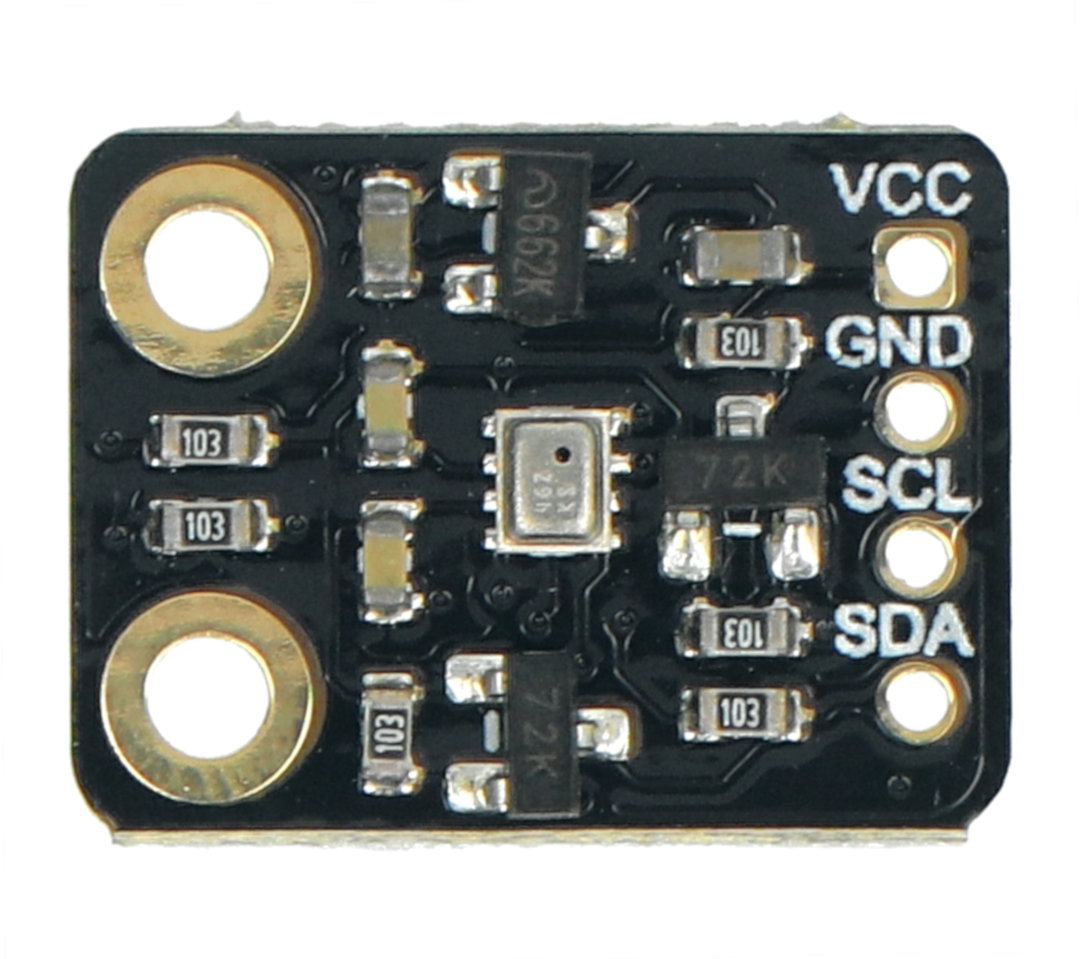

Sensor with integrated BMP280 chip.

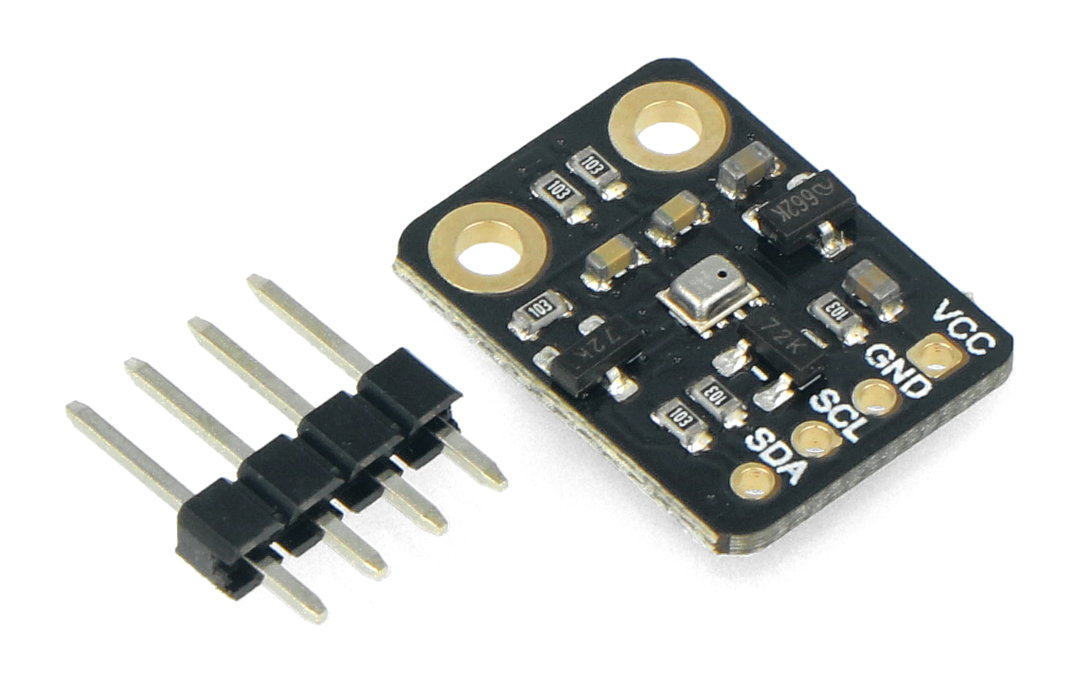

Kit contains a dedicated goldpin connector for self-soldering.
Suggested use
- Temperature detection
- Pressure measurement with elevation
- Indoor navigation (floor detection, elevator detection)
- Outdoor navigation, leisure and sports applications
- Vertical speed indication (e.g. ascent/descent speed)
Set contents
- Digital air pressure sensor - barometer - BMP280
- Gold pin strip 1x4 - 2,54 mm pitch
