Product description: USB Type-C plug module - breadboard connector - Adafruit 5978
The Adafruit USB Type-C connector module is the perfect solution for modern electronics projects and prototyping. With its solder pads , it allows easy access to all pins of the USB Type-C connector, which allows for a wide range of applications in power management and data transfer . The reversibility of the USB Type-C connector eliminates the problem of incorrect connection, which increases user convenience and reduces the risk of damage to the ports. The module also includes a 5.1 kΩ resistor on the CC1 pin, which allows for supplying 5 V and up to 1.5 A of current, as long as the power source allows. Simply connect VBUS to 5 V, GND to ground, and pins D+ and D- to the appropriate data lines to integrate the module into your electronics projects.
USB Type-C module - breadboard connector - Adafruit 5978.

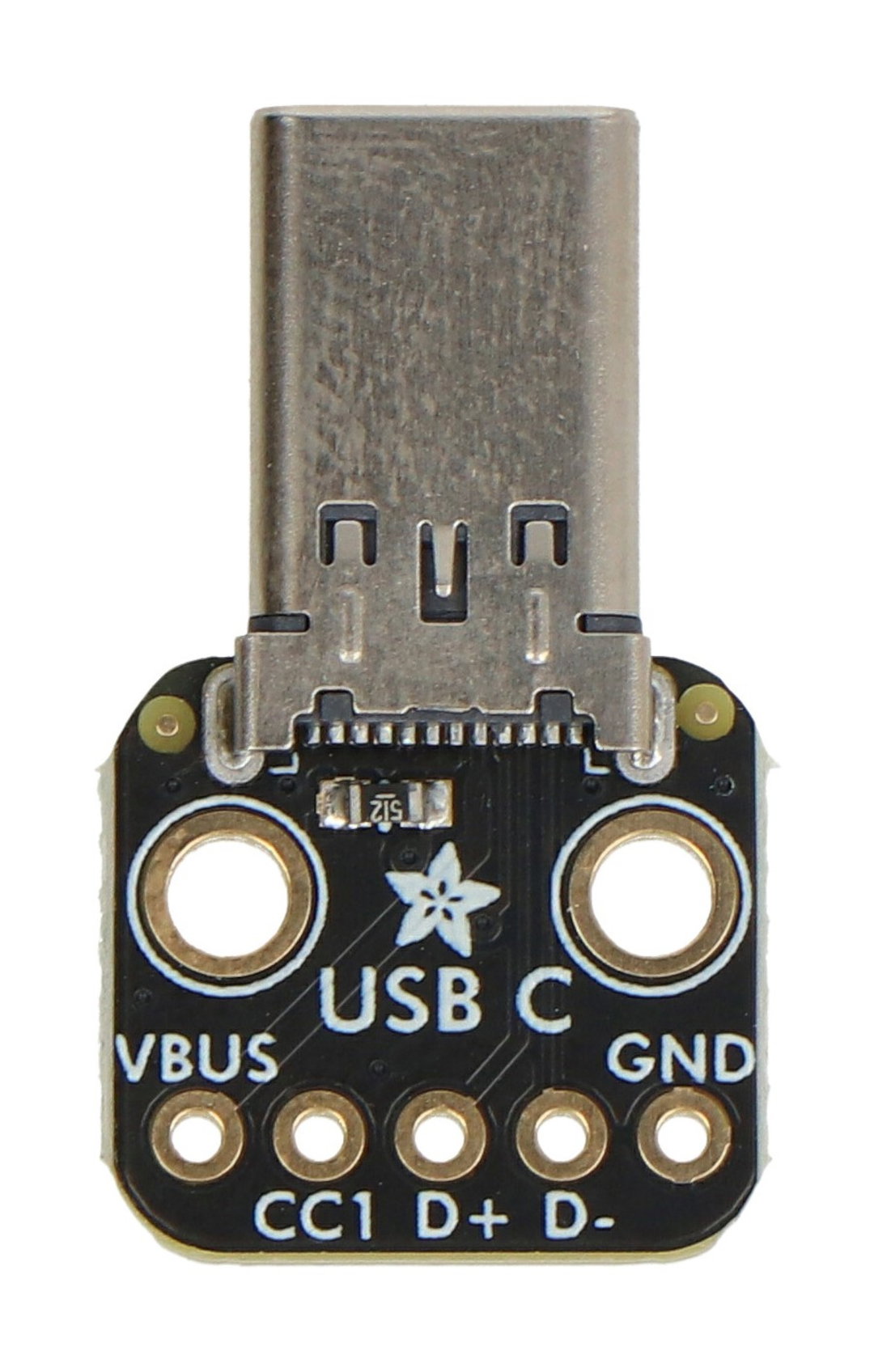

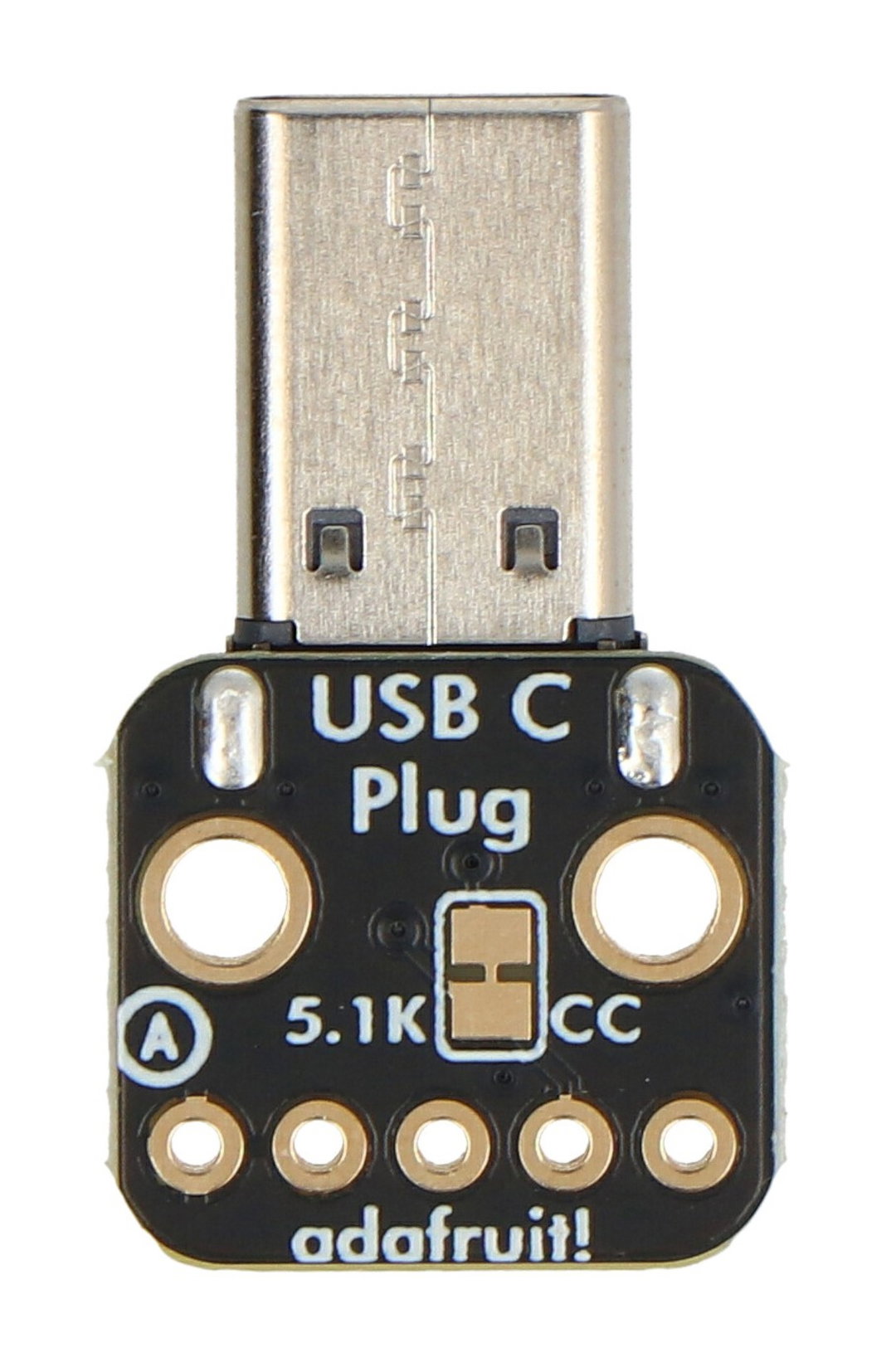

The module has a USB Type-C plug and solder pad connectors.
Special features of the module
- Reversible USB Type-C connector - allows for easy and safe connection without the risk of damaging the port or cable
- Supports current up to 1.5 A - suitable for devices requiring USB charging or power supply
- 5.1kΩ resistor on CC1 pin - provides stable 5V voltage supply when connected to a power source
- Simple pin configuration - just connect VBUS, GND, D+ and D-
- Compact dimensions - 24.1 x 14.3 mm , which facilitates integration in small projects
- Versatile - ideal for IoT projects, charging systems, navigation and other applications
Module pins with USB Type-C plug
| Name | Description |
|---|---|
| VBUS | Bus power supply |
| CC1 | Configuration pin |
| D+ | USB data transmission differential lines |
| D- | USB data transmission differential lines |
| GND | System mass |
Technical specification of the module
- Socket: USB Type-C
- Power supply: 5 V, up to 1.5 A
- Pinout raster: 2.54mm - goldpin standard
- Two mounting holes
- Dimensions: 24.1 x 14.3 mm
- Weight: 1.1 g
Kit Contents
- Module with USB Type-C plug
- Goldpin strip

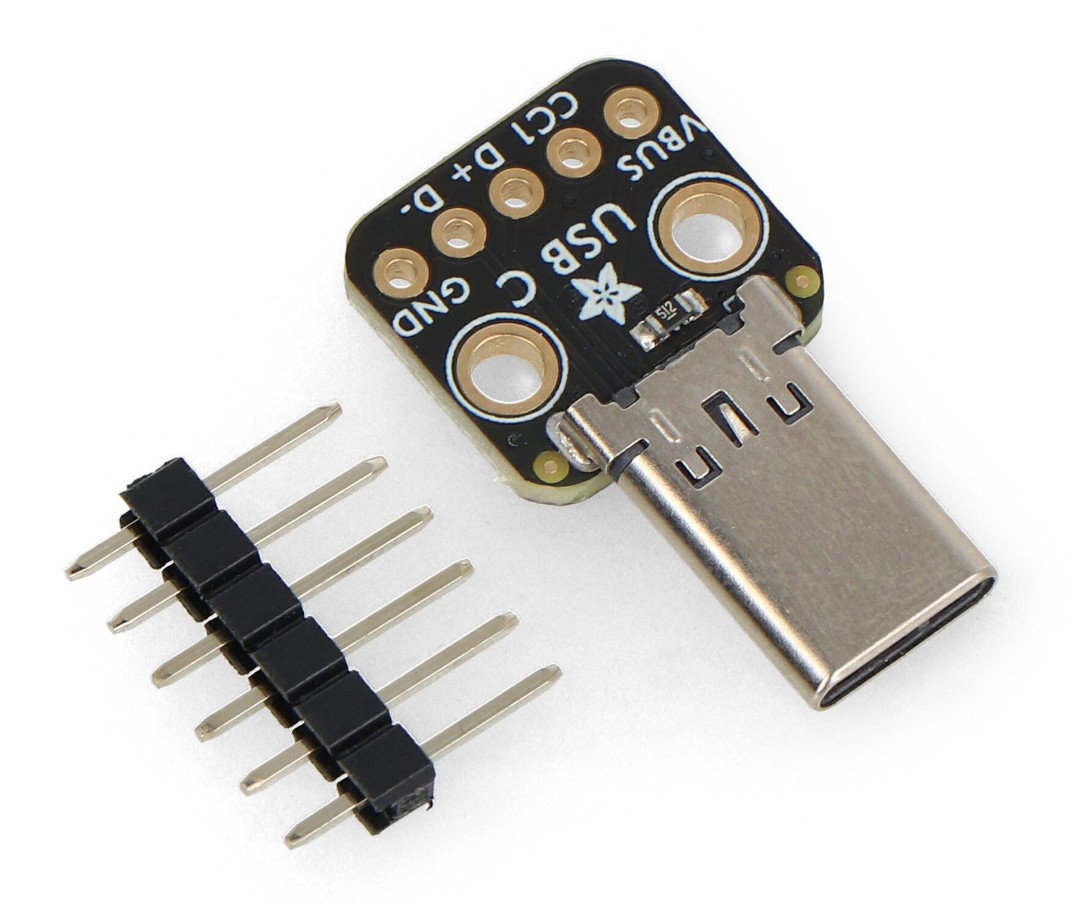

Items included in the set.
