Raspberry Pi CM4S Compute Module 4 SODIMM - 2GB RAM - CM4S02000

Index: RPI-24899
Raspberry Pi Compute Module 4S is a small SoM module based on the Raspberry Pi 4B architecture , designed for industrial applications. Equipped with a quad-core Cortex A72 processor and 2 GB of RAM . It offers a USB 2.0 connector, HDMI 2.0 (4K), MIPI DSI / CSI interfaces, composite TV output and 46 GPIO pins , which allows for wide integration in industrial devices. Compatible with Raspberry Pi OS , ideal for custom applications.
Raspberry Pi CM4S Compute Module 4 SODIMM - 2GB RAM - CM4S02000
€36.90
€30.00 tax excl.
The minimum purchase order quantity for the product is 200.
Waiting time approx. 2-4 weeks.
Waiting for delivery
PayPal payment
Manufacturer: Raspberry Pi

Product description: Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000

Raspberry Pi CM4S is a high-performance SoM module based on the popular Raspberry Pi 4B platform , designed for industrial applications. Equipped with a quad-core Cortex A72 processor (1.5 GHz) and 2 GB of LPDDR4-3200 SDRAM with error correction (ECC), it offers the performance necessary for advanced applications. The module supports a range of interfaces: USB 2.0 , HDMI 2.0 (up to 4K at 60 fps), MIPI DSI and CSI , as well as composite TV output . It can support 4K video decoding in the H.265 (HEVC) and H.264 standards and offers OpenGL ES 3.0 support for applications requiring 3D graphics. Additionally, it has 46 GPIO pins , which increases the possibilities of expansion. Compatible with the Raspberry Pi OS operating system and embedded systems, it provides versatility and flexibility for engineers and designers.

Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000

Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000.

Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000

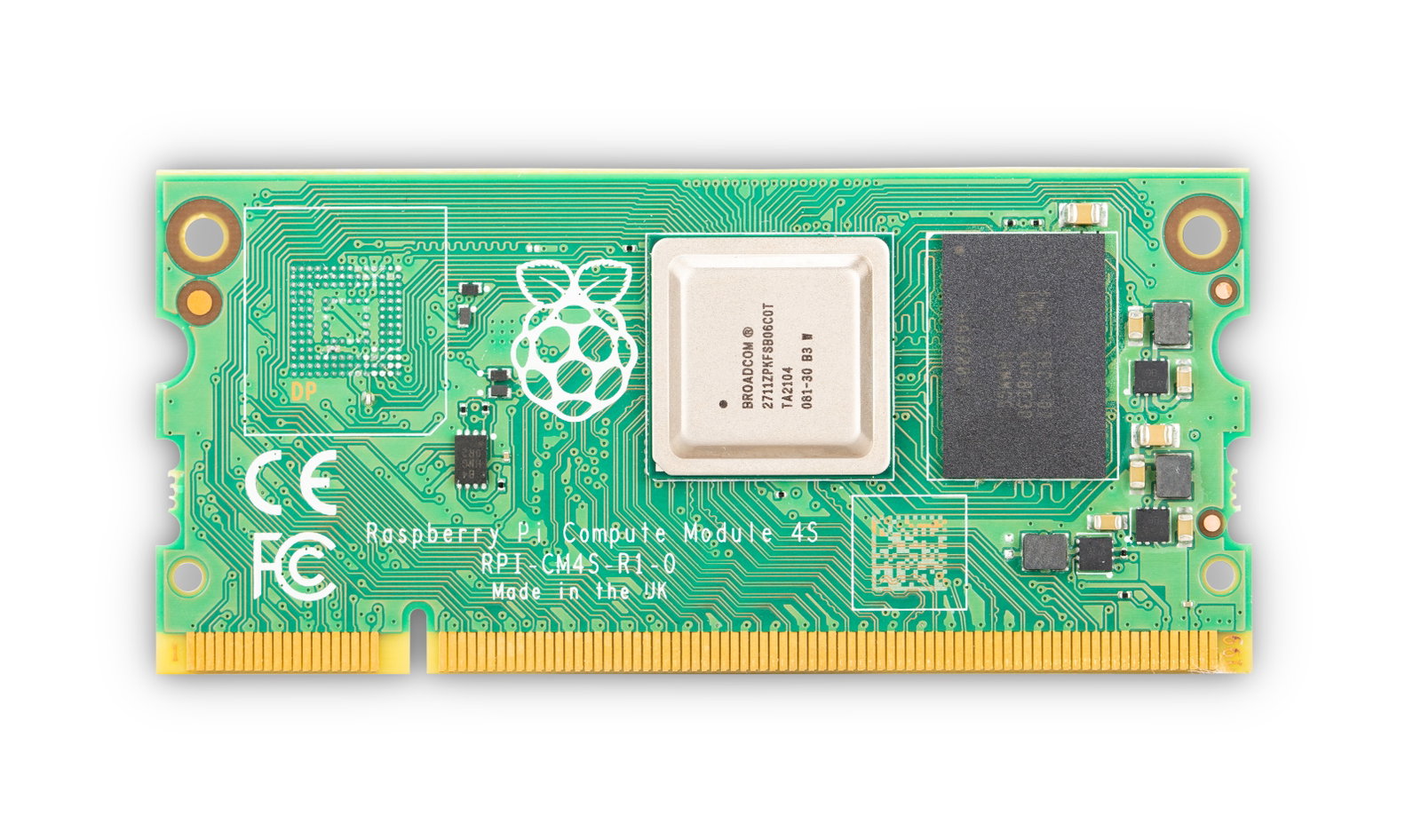

The Raspberry Pi CM4S has a Broadcom BCM2711 processor.

Key Features of the Raspberry Pi Compute Module 4S

  • Processor: Broadcom BCM2711, Quad-core Cortex A72 clocked at 1.5 GHz
  • Memory: 2GB LPDDR4-3200 SDRAM with ECC function for improved reliability, making it suitable for applications requiring stability, such as mission-critical systems
  • Connectivity: 1 x High-Speed USB 2.0 port for connecting peripherals
  • Video Interfaces: Supports 4K at 60fps, compatible with H.265 (4K 60fps) and H.264 codecs, offering smooth video decoding and encoding up to 1080p at 30fps
  • Inputs/Outputs: 46 GPIO pins that enable advanced configuration according to industrial requirements
  • Camera and display interfaces: MIPI interfaces with two DSI and four CSI channels, offering great versatility for machine vision or display applications
  • System Support: Supports Raspberry Pi OS and embedded systems

A rich set of interfaces and features dedicated to industrial applications

The Raspberry Pi Compute Module 4S offers a wide range of interfaces and features that make it ideal for a variety of industrial applications. The module includes:

  • 46 GPIO pins that expand expansion possibilities and enable communication with other devices
  • USB 2.0 port , which allows you to connect peripherals such as keyboards, mice or memory devices
  • HDMI 2.0 , supporting 4K resolution at 60 fps.
  • MIPI DSI and CSI , offering two display ports and two high-bandwidth camera ports
  • Composite TV output , useful in installations using analog video formats (PAL/NTSC)
  • OpenGL ES 3.0 , which enables support for applications requiring advanced 3D graphics, such as vision systems or visualizations
Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000 Raspberry Pi CM4S Compute Module.
Raspberry Pi CM4S Compute Module 4 SODIMM - 2 GB RAM - CM4S02000

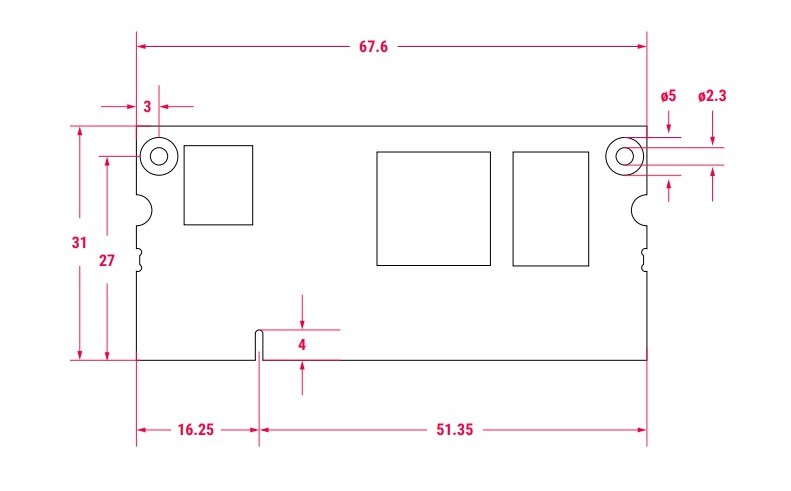

The plate has dimensions of 67.6 x 31 mm.

Raspberry Pi CM4S Applications

The Raspberry Pi CM4S is the perfect solution for engineers and designers working on custom industrial devices, IoT systems, automation, smart devices , and other applications that require high performance, reliability, and flexibility. The module is suitable for applications such as industrial cameras, monitoring systems, video analysis devices, and projects requiring advanced interface configuration.

Our offer also includes other versions of the Raspberry Pi CM4S, available with different RAM configurations: 1 GB, 2 GB, 4 GB and 8 GB. These modules are available in versions with eMMC memory (8 GB, 16 GB or 32 GB) and without eMMC.

Raspberry Pi CM4S Technical Specification
Processor Broadcom BCM2711 64-bit
Core Quad-Core ARM Cortex A72
Clocking 1.5GHz
Architecture ARMv8
RAM memory 2GB LPDDR4-3200 SDRAM with ECC
eMMC memory Lack
Wireless connectivity Lack
Power supply 3.3V / 2.5V to 5V
Interfaces
  • 1x USB2.0
  • 46x GPIO
  • 1xHDMI
  • 2xUSB3.0
  • 2x DSI - 2/4-track
  • 2x CSI - 2/4-track
  • 1x Composite TV output
Dimensions 67.6x31mm

UC - Microcontroller BCM2711
UC - Core Cortex A72
UC - RAM 2 GB
UC - core 4. Quad Core
UC - Digital pins 46
UC - freq 1.5 GHz
UC - USB 1x USB
UC - HDMI yes
UC - I2C yes
UC - UART yes
UC - SPI interface yes
UC - Camera interface yes
