Capacitive Touch Display E-paper E-Ink - 2.9'' 296x128px - SPI/I2C - black and white - for Raspberry Pi - Waveshare 19967

Index: WSR-19723 EAN: 5904422347291
Waveshare's 2.9" e-paper touchscreen display has a resolution of 296 x 128 px. The screen works with any 40-pin version of Raspberry Pi, and can also be used with Arduino and STM32. The image is displayed in two colors: black and white. The module uses SPI and I2C interfaces for communication. The e-paper technology makes this type of display suitable for use in e-book and electronic magazine readers.
Capacitive Touch Display E-paper E-Ink - 2.9'' 296x128px - SPI/I2C - black and white - for...
€25.50
€20.73 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: E-paper E-Ink touch display - 2,9'' 296x128px - SPI/I2C - black and white - for Raspberry Pi - Waveshare 19967

Touchscreen display made by Waveshare ine-papertechnologywith diagonal of2,9'' and resolution of 296x 128 px. The screen works with any 40-pin version ofRaspberry Pi, and can also be used with Arduino and STM32. The image is displayed in two colors: black and white. The module usesSPIandI2Cinterfaces for communication. The e-paper technology makes this type of display suitable for use in e-book and electronic magazine readers.

Compatible withRaspberry Pi
The manufacturer provides aproduct wikipage that contains information about the module's pinouts and a user guide.

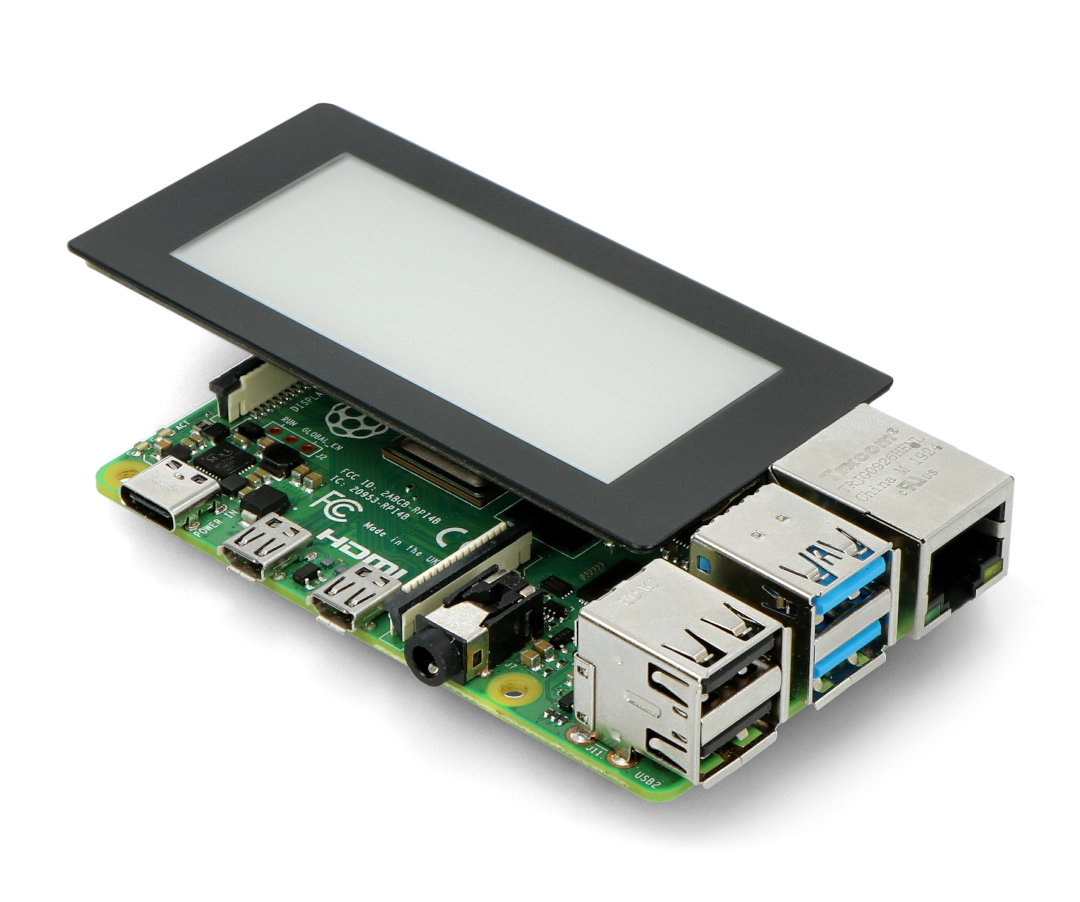

Wyświetlacz e-paper do Raspberry Pi

Touchscreen e-paper display for Raspberry Pi. The item for sale is the e-paper display, the Raspberry Pi minicomputer can be purchased separately.

Ekran e-paper do Raspberry PiE-paper display for Raspberry Pi.

Main features of the e-paper display

  • 2.9" screen with 296 x 128 px resolution and capacitive touch
  • Supports 5 touch points, user-defined screen wake-up gesture
  • No backlight, retains last displayed image for long time after power disconnection
  • Ultra low power consumption, power is only required to refresh the screen
  • SPI / I2C interface
  • Works with any 40-pin version of Raspberry Pi
  • Also works with boards like Arduino and STM32

What is an e-paper?

The e-paper displays work based on electrophoretic microcapsule technology: charged particles suspended in a transparent liquid move to the sides of the microcapsule when an electric field is applied, making the microcapsule visible by reflecting ambient light, just like traditional printed paper. The e-paper display clearly displays images/text in lamplight or natural light, requires no backlight, and has a viewing angle of nearly 170°. This type of display is usually used in e-book readers because of its paper-like effect.

Wyświetlacze e-paperE-paper technology.

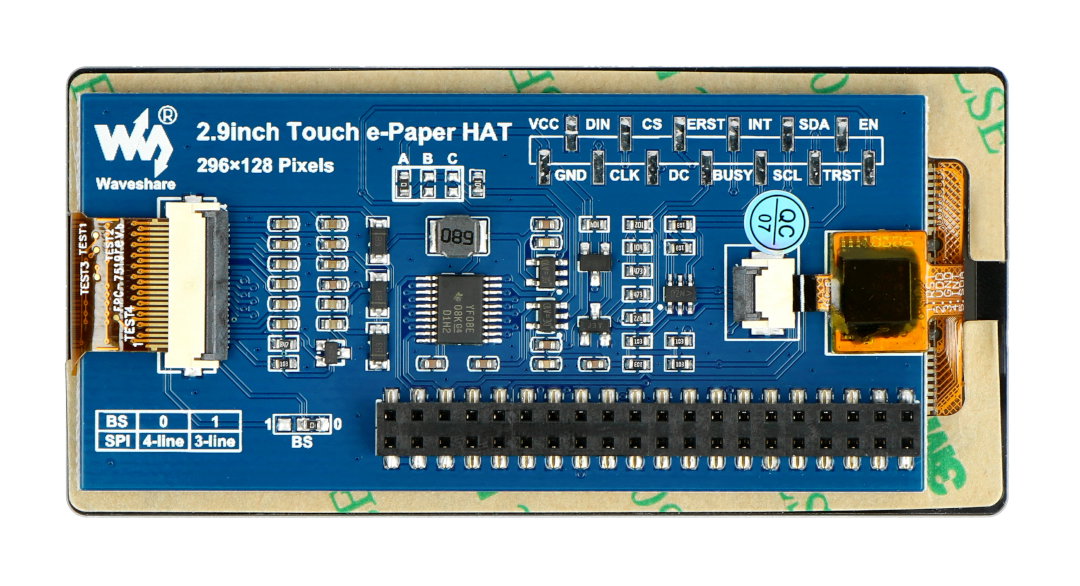

Wyprowadzenia modułuLeads of the e-paper display module.

Pinouts of the e-paper display

A display module in the form of an overlay for direct connection to a Raspberry Pi. It uses pins like:

  • VCC - supply voltage 3,3 V / 5 V
  • GND - ground
  • DIN - MOSI pin of SPI bus
  • CLK - pin SCK of SPI bus
  • CS - SPI chip selection, activated by low state
  • DC - data / commands pin (high for data, low for commands)
  • ERST - external reset, activated by low state
  • BUSY - busy state output, activated with high state
  • INT - touch controller interrupt pin
  • SCL - touch controller I2C bus clock pin
  • SDA - touch controller I2C bus data pin
  • TRST - touch controller reset, activated by low state
  • EN - power supply activation for the touch controller (optional), activated by a high state

Display specification

  • Operating voltage: 3.3 V / 5 V
  • Interface: 3-wire SPI, 4-wire SPI, I2C
  • Displayed colors: black and white
  • Gray scale: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Current consumption at refresh: 26.4 mW
  • Idle current consumption: up to 0.01 uA
  • Viewing angle: up to 170°
  • Touch: Capacitive
  • Number of touch points: 5
  • Diagonal size: 2.9"
  • Resolution: 296 x 128 px
  • Pixel size: 0.227 x 0.226 mm
  • External dimensions: 89.1 x 42.7 mm
  • Display dimensions: 66.89 x 29.05 mm

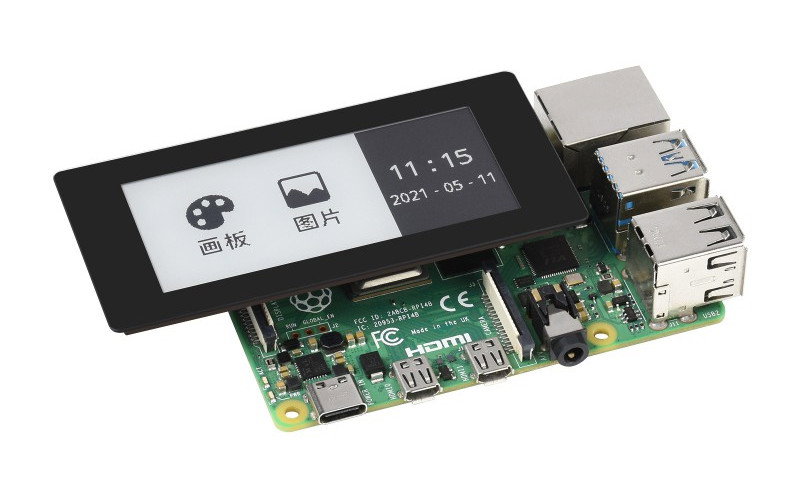

Wyświetlacz e-paperE-paper display.
Screen - type e-paper
Screen - diagonal 2.9''
Screen - interface SPI+I2C
Screen - resolution 296x128px
Package width 11.5 cm
Package height 6.5 cm
Package depth 3.5 cm
Package weight 0.053 kg
