Description: Adafruit NeoPixel Mini PCB - RGB LEDs WS2812 5050 - 5pcs

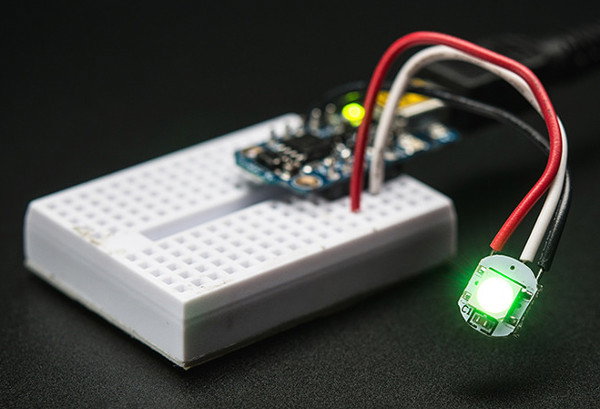

The module is equipped with individually addressed WS2812 RGB LEDs with 24-bit color palette and a built-in driver. The module needs one microcontroller output. The led is located on the circuit coard with holes of size 10 x 8 mm, it consumes approx. 60 mA and is supplied with the voltage of 5 V. The kit includes five modules.
|
Set includes 4 modules with RGB LEDs. |
The used communication Protocol allows the serial connection of the LEDs. Another circuit should be connected to the output connector, combining with each other respectively, 5V, GND and OUT with IN. The manufacturer notes that when working with more than 500 LEDs, there may not be enough RAM in the Arduino Uno system.
Connection
The device has four terminals:- GND - module's ground
- VCC supply voltage 18 mA current for one diode
- IN the digital control signal from the microcontroller
- OUT - output to connect the next ring
|
The product is compatible with Arduino and Raspberry Pi The product works with the NeoPixel library from Adafruit:
|
Specification
- Supply voltage: 5 V (LED is 3.5 V but color will be darker)
- Current consumption: 60 mA per pixel (color white)
- Applicable light: LED RGB WS2812B (documentation)
- Complete 5 modules with diodes
- Board sizes: 10 x 8 x 3 mm
