Product description: RP2040-ETH Mini - board with RP2040 microcontroller and Ethernet network module - CH9120 - Waveshare 24082
RP2040-ETH Mini is a development board from Waveshare with the RP2040 microcontroller , which contains a built-in Ethernet module with the CH9120 chip , enabling network communication using TCP/IP protocols . The Raspberry Pi RP2040 microcontroller contains a dual-core ARM Cortex M0+ processor clocked at up to 133 MHz and has 264 kB of SRAM and 4 MB of Flash memory , which ensures high computational efficiency of the module. The development board also includes 14 multi-function GPIO pins that allow connection to various modules and sensors. The module is programmable in MicroPython, C and C++ languages and has a USB Type-C port.
The manufacturer has prepared a detailed user guide that makes it easier to start working with the module.

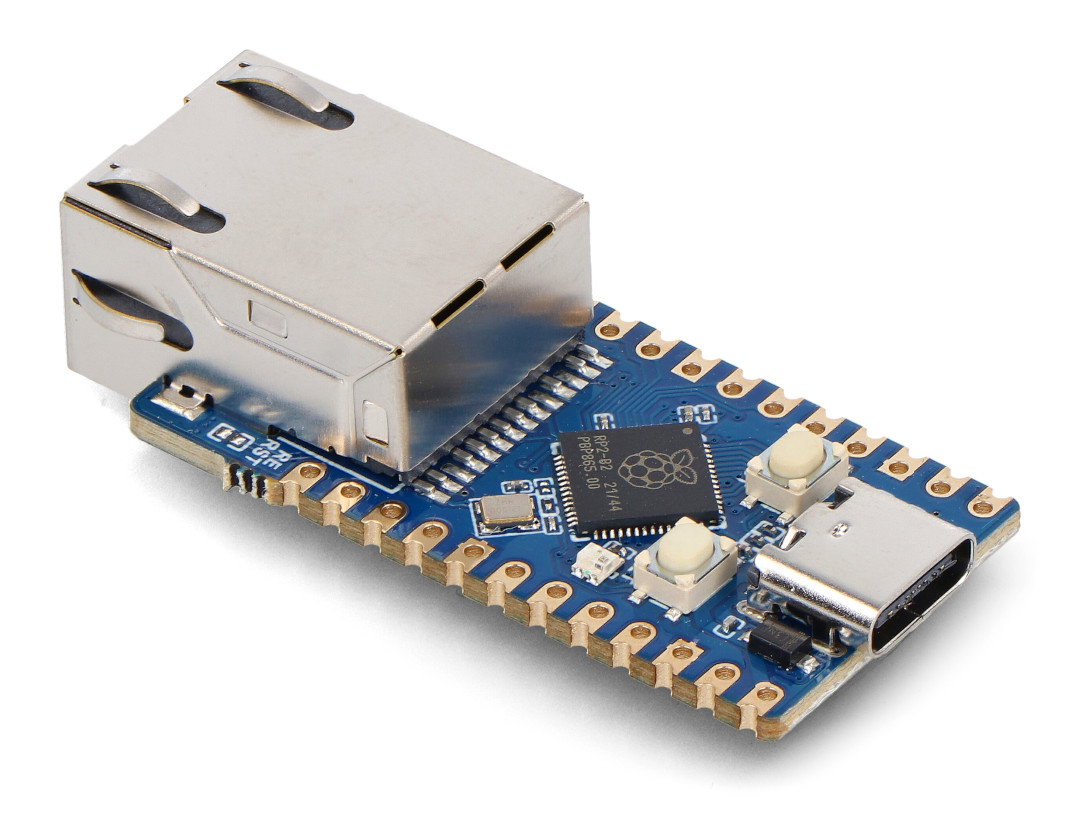

RP2040-ETH Mini - board with RP2040 microcontroller and Ethernet network module - CH9120 - Waveshare 24082.

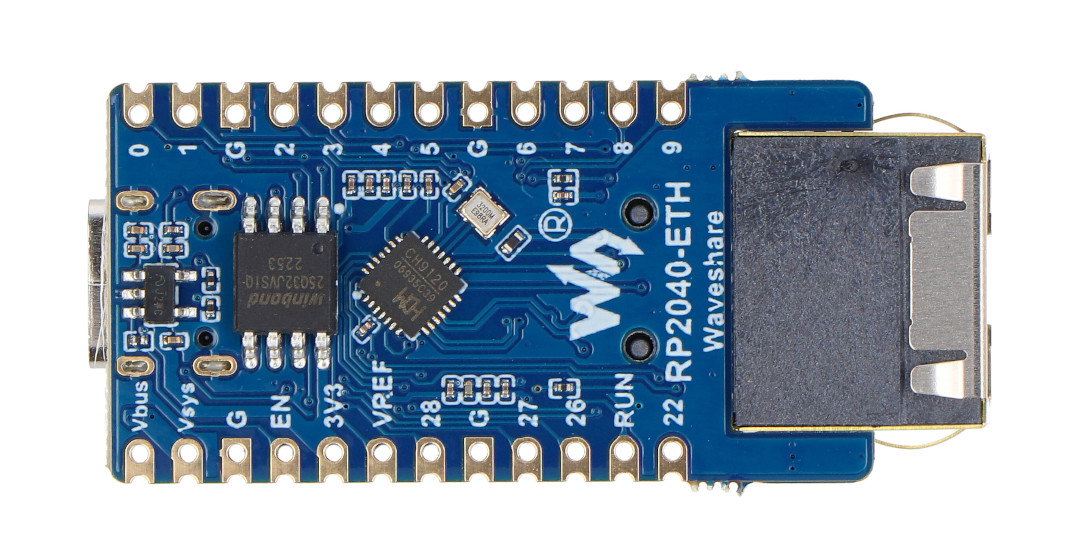

The board has an Ethernet module with the CH9120 chip.
Special features of the tile
- It has a built-in Ethernet module with a CH9120 chip that enables network communication
- Supports a set of TCP/IP communication protocols
- It has a built-in RP2040 chip with a dual-core ARM Cortex M0+ 133 MHz processor with 264 kB of SRAM and 4 MB of Flash memory.
- Contains 14 multi-function GPIO pins
- It is programmable in C/C++ and MicroPython
- It has a USB Type-C port and a built-in temperature sensor
- It is equipped with UART, SPI and I2C interfaces that enable communication with various peripheral devices

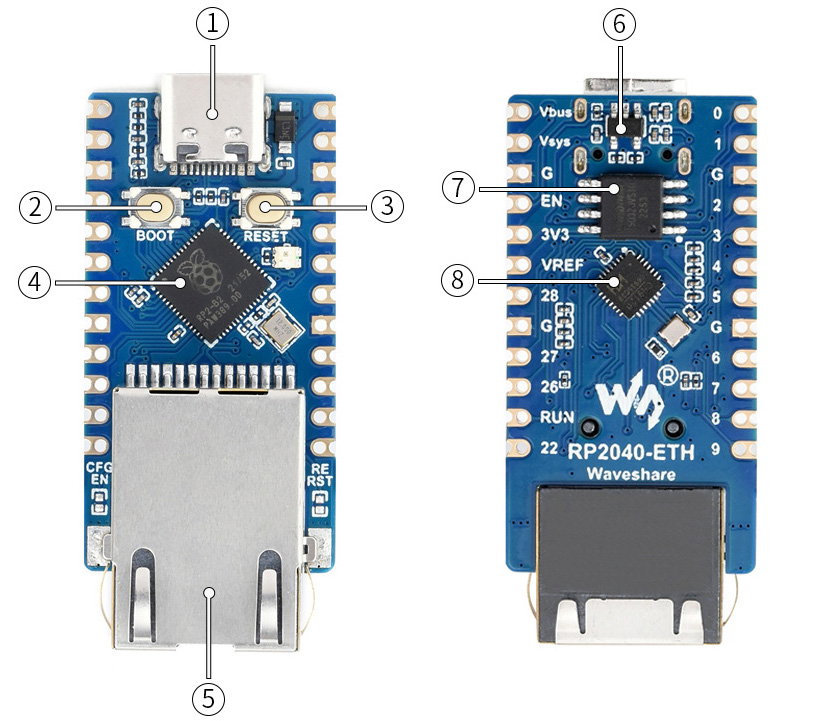

Arrangement of elements on the board
- USB Type-C connector
- BOOT button
- Reset button
- Dual core RP2040 processor, operating frequency up to 133MHz
- RJ45 Ethernet port
- LDO voltage stabilizer RT9013-33GB
- W25Q32JVSSIQ 4 MB NOR-Flash memory
- CH9120 Ethernet IC
Arrangement of elements on the board.

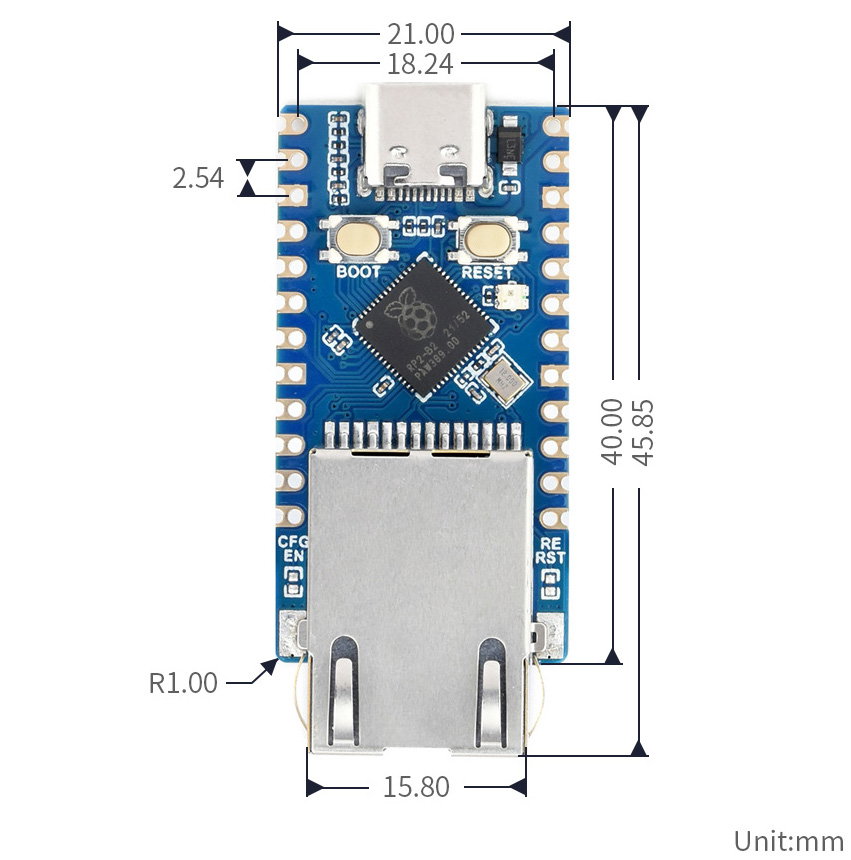

Plate dimensions.Technical specifications of the board
- Built-in chip: Raspberry Pi RP2040
- Processor: ARM Cortex-M0+ Dual-Core 133 MHz
- SRAM memory: 264 kB
- Flash memory: 4 MB
- TCP/IP chip: CH9120
- Interfaces: 1x SPI, 2x I2C, 2x UART, 13x PWM
- LDO voltage stabilizer: RT9013-33GB 500 mA
- Development environment: C/C++ Raspberry Pi or MicroPython SDK
- Power connector: USB Type-C
- Board dimensions: 45.85 x 21 mm
