Product description: SS12T44 2-position slide switch - 5 pcs.
Slide switch, straight to print with dimensions 12,1 x 8,7 x 5,5 mm. Leads raster 3,00 mm.
|
Components sold in a pack of 5 pieces. |

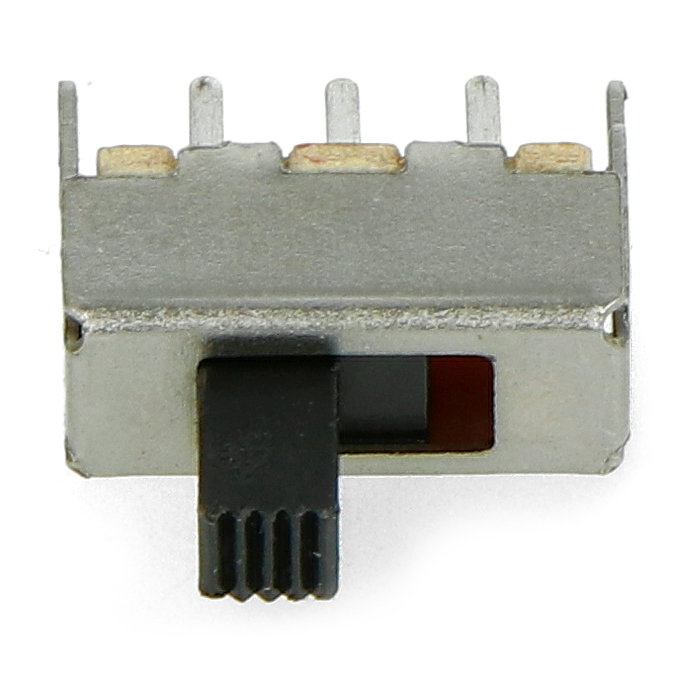

Slide switch SS12T44.
Switchdimensions.
Specification of the switch
- Number of leads: 3
- Switching method: ON-ON
- Switch on top
- Number of stable positions: 2
- Lead Raster: 3.00 mm
- Main body dimensions: 12.1 x 8.7 x 5.5 mm
Slide switch SS12T44 2-position - 5 pcs.
We offer high quality slide switch SS12T44 - available in a package of 5 pieces. It is 2-position switch with metal housing and contacts, so you are guaranteed longest and completely trouble-free operation. Only the adjustment button (in black) is made of plastic.
The black switch is located in the upper part of the component and has 2-position switching - ON-ON. As for the type, it is a button with a lever. The total number of leads of the switch - 3. The color of other parts - white-orange-silver.
2-position switch with 3,00 mm pitch
Black slide switch button allows you to conveniently set the desired configuration. It is a lever bistable button, so when moved it will not jump back to its original position, but will remain moved.
The 2-position switch has been equipped with a 3.00 mm pinout. The length of the longest side is 12,1 mm. There are 5 pieces in the set. Welcome!

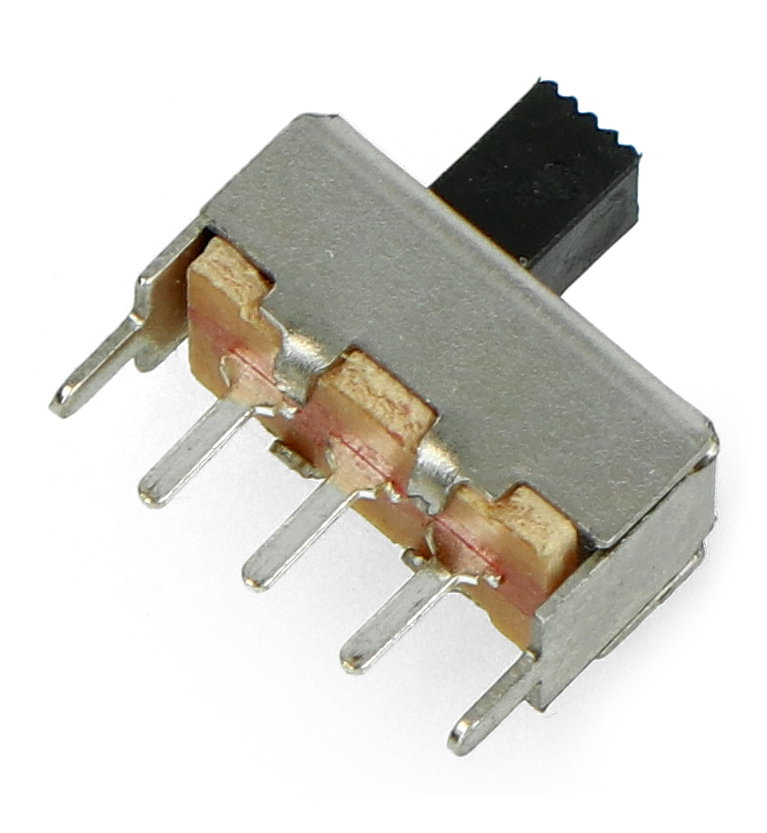

2-positionslide switch.
