Product description: NeoKey Trinkey - ATSAMD21E18 - USB - with socket for mechanical switch - Adafruit 5020
The NeoKey Trinkey is a module manufactured by Adafruit that combines the Adafruit Trinket M0 board with a slot for a Cherry MX compatible mechanical switch. The module is terminated with a USB connector , so it can be connected directly to the USB A socket on a computer or laptop. Additionally, the USB connector provides serial, MIDI or HID connectivity. The NeoKey Trinkey board also has a built-in RGB NeoPixel diode , which illuminates the mounted button in any declared color ( buttons and overlays must be purchased separately ). Adafruit NeoKey Trinkey is based on the ATSAMD21E18 microcontroller, has 256 kB of Flash memory and 32 kB of RAM.
Also check the manufacturer 's user guide !

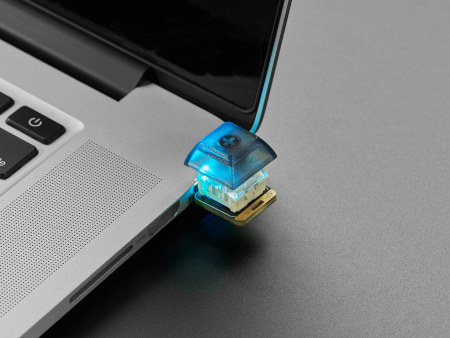

Application of NeoKey Trinkey from Adafruit.

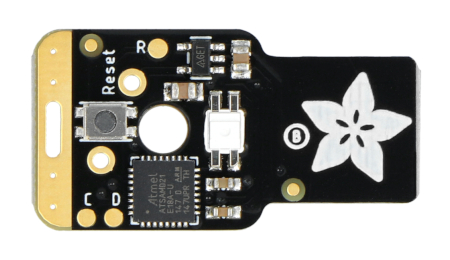

NeoKey Trinkey - ATSAMD21E18 - USB - with socket for mechanical switch - Adafruit 5020.
Special features of the NeoKey Trinkey
- Equipped with ATSAMD21E18 - 32-bit Cortex M0+ clocked at 48 MHz, with 256 kB Flash and 32 kB RAM
- Native USB supported by any operating system - can be programmed in Arduino or CircuitPython and used as a USB serial console, MIDI, HID keyboard/mouse, or even a small portable drive to store Python scripts
- Built-in RGB NeoPixel LED
- Reset button located on the bottom of the board
- Capacitive touchpad located on the edge of the board
- Cherry MX compatible switch socket for connecting a wide range of mechanical switches.
Technical specification of the board
- Series: Twinkey
- Built-in chip: ATSAMD21E18
- Processor: 32-bit Cortex M0+
- Clock: 48MHz
- Flash memory: 256KB
- RAM memory: 32KB
- Development environment: Arduino, CircuitPython
- Interface: USB type A to match the USB host port
- Dimensions: 32 x 16.4 x 3.3mm
- Weight: 2.1g

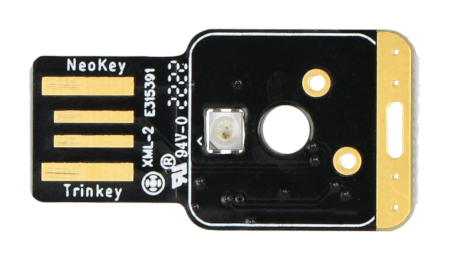

NeoKey Trinkey - Adafruit 5020.
