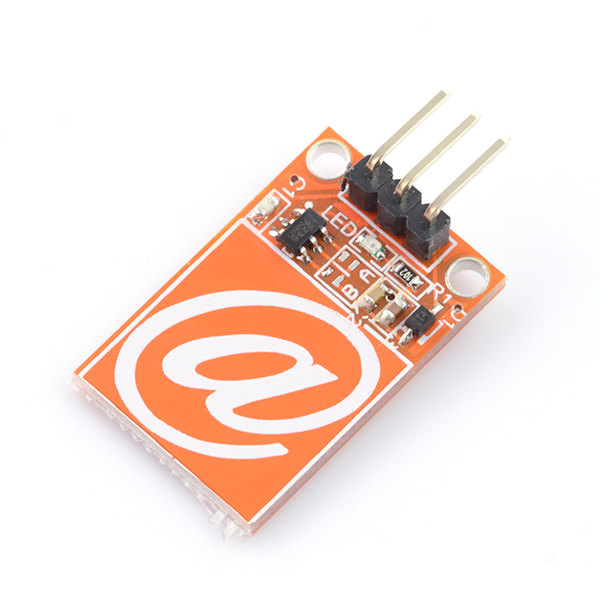

Product description: Touch button - module Iduino
The module is equipped with the touch button along with the controller. Thanks to the digital output signal,the module can be connected directly to the pinsof the microcontrollerorthe development kit, includingArduino. The supply voltage is 5 V, it should be connected between pinsVCCandGND.
Using the touch button Iduino
The sensor has a 3 pin connector with the analog digital output D0 which should be connected to the pin of the microcontroller, e.g.Arduino.
| Pin | Description |
|---|---|
| S | The output of the digital signal. |
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
Specification of the touch button Iduino
-
Supply voltage: 5 V
- Output: digital signal
- Connector: 3-pin
