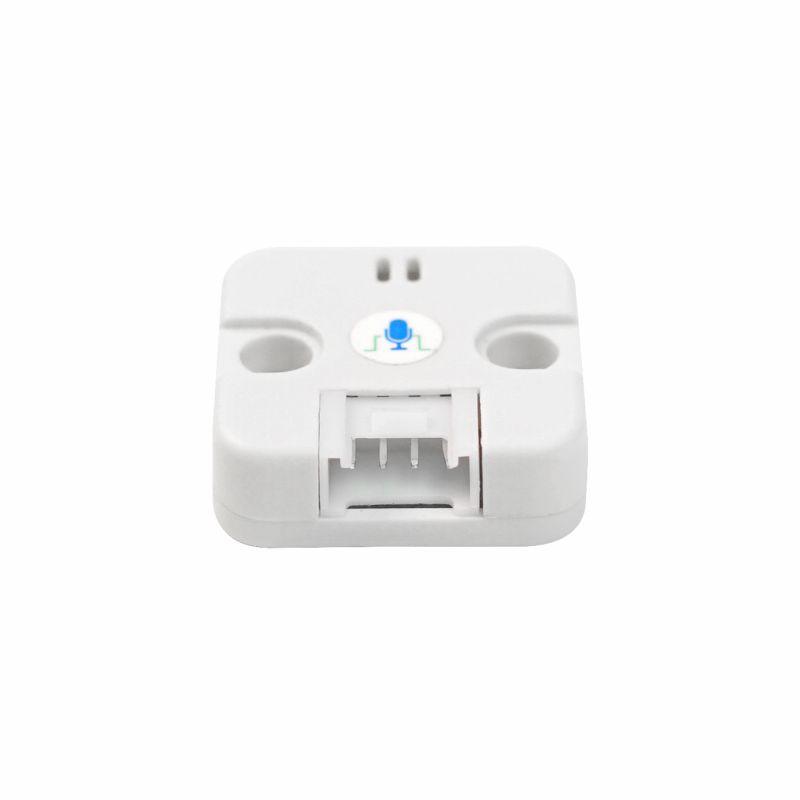

Product description: MEMS PDM Microphone - Unit extension module for M5Stack development modules
MEMSdigitalmicrophonebased on PDM(Pulse Density Modulation) signal.Unittype module dedicated forM5Stackproducts. It has radio frequency interference, high signal-to-noise ratio andhigh sensitivity. Additionally, it consumes relativelysmall amounts of energyand has smooth frequency characteristics. The state of the microphone switches automatically according to the clock frequency (switch off/activate/sleep). The module can be used to collect digital data on mobile devices and smart digital devices. Communication takes place via theI2S interface.
The subject of sale is mMEMS PDM iconphone - Unit type module for M5Stack series.
TheM5Stackdevelopment module must be purchased separately.
Technical Specifications
- Sensitivity: 94 dB SPL at 1 kHz nom. - 22 dBFS
- Signal-to-noise ratio: 94 dB SPL at 1 kHz nom. 61.4 dB
- The THD factor: 100 dB SPL at 1 kHz nom. 1%
- Operating voltage: 1.6 V to 3.6 V
- The intensity: 600 µA
- Communication interface: I2S
- Coding output: PDM CLK / DAT
- Programming platform: Arduino
- Dimensions: 24 x 24 x 13 mm
- Weight: 8 g

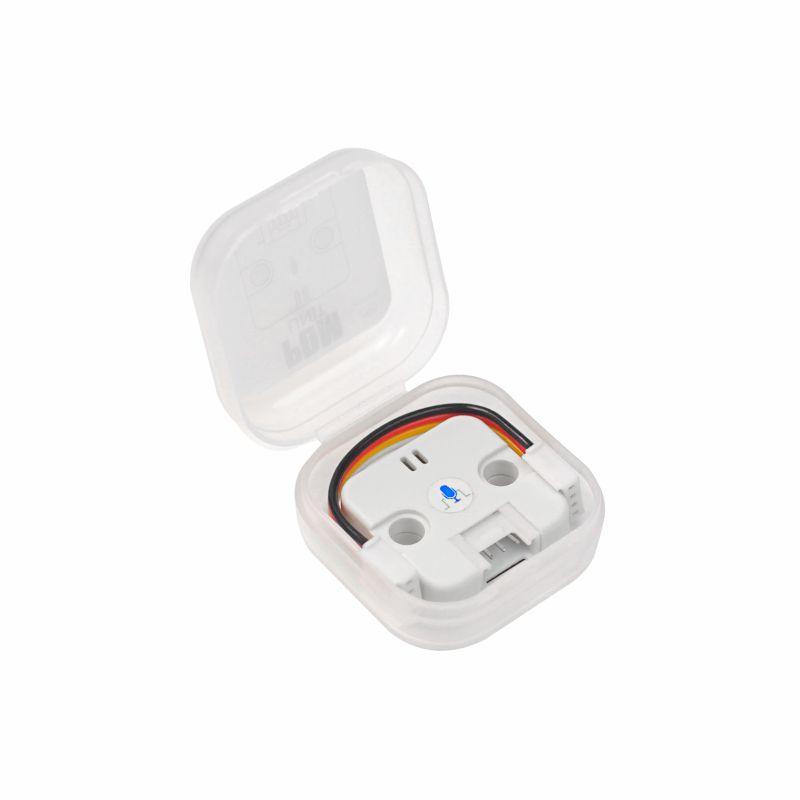

Set contents
- PDM MEMS microphone module
- Connection cable HY 2.0 4P - 5 cm
