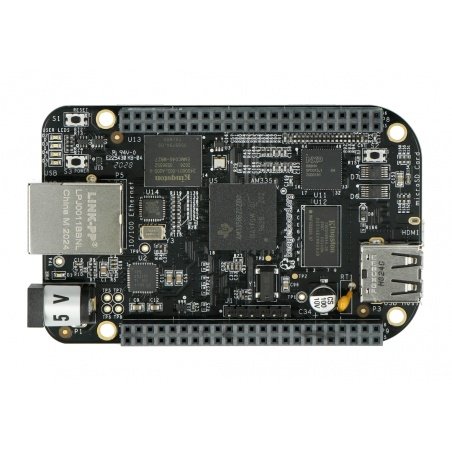

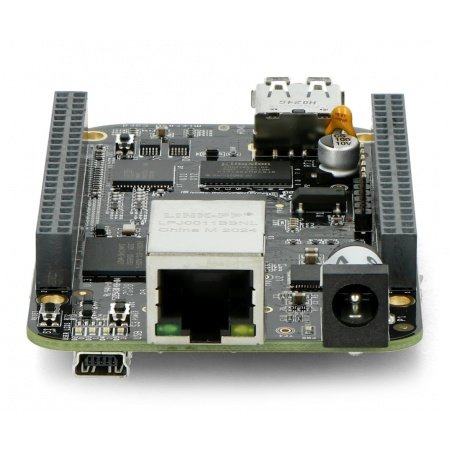

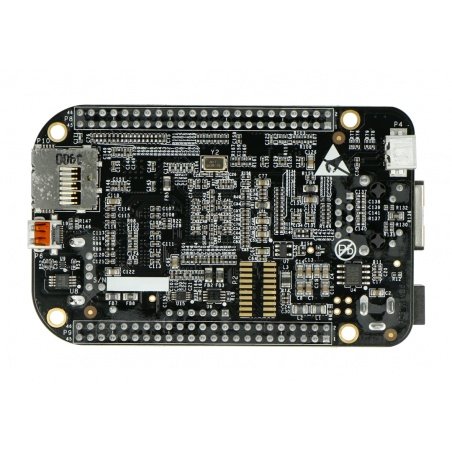

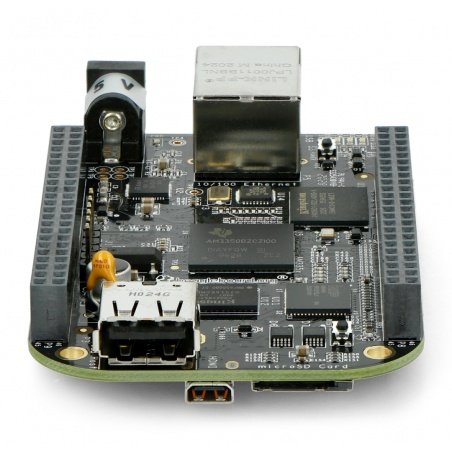

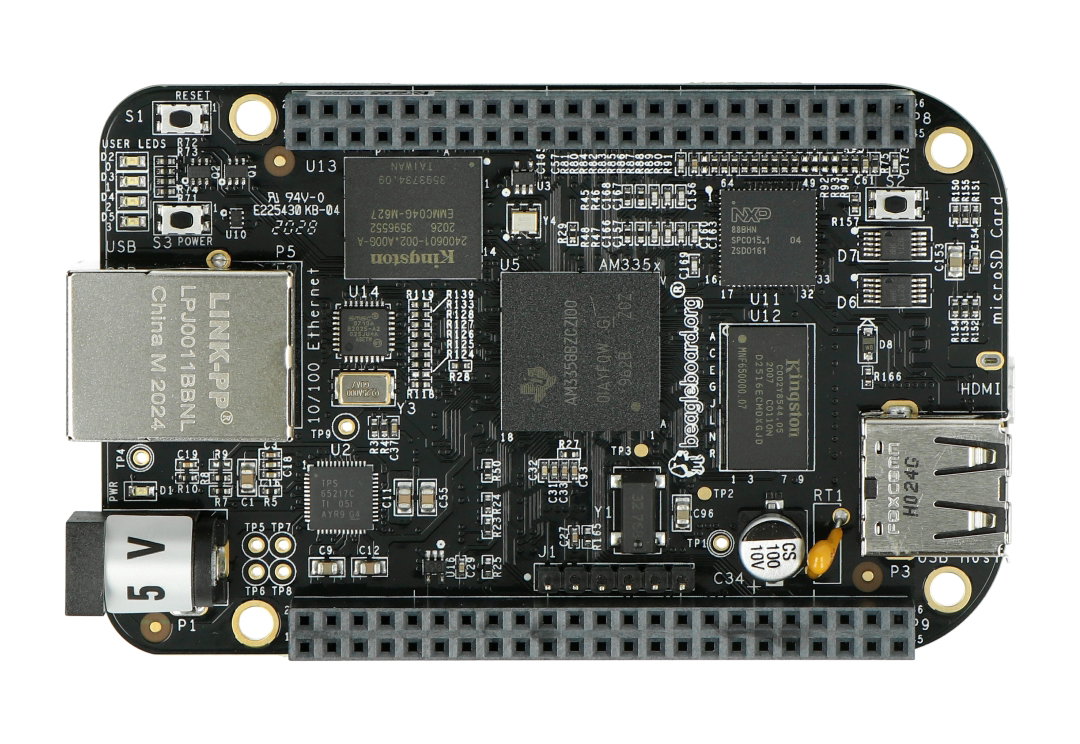

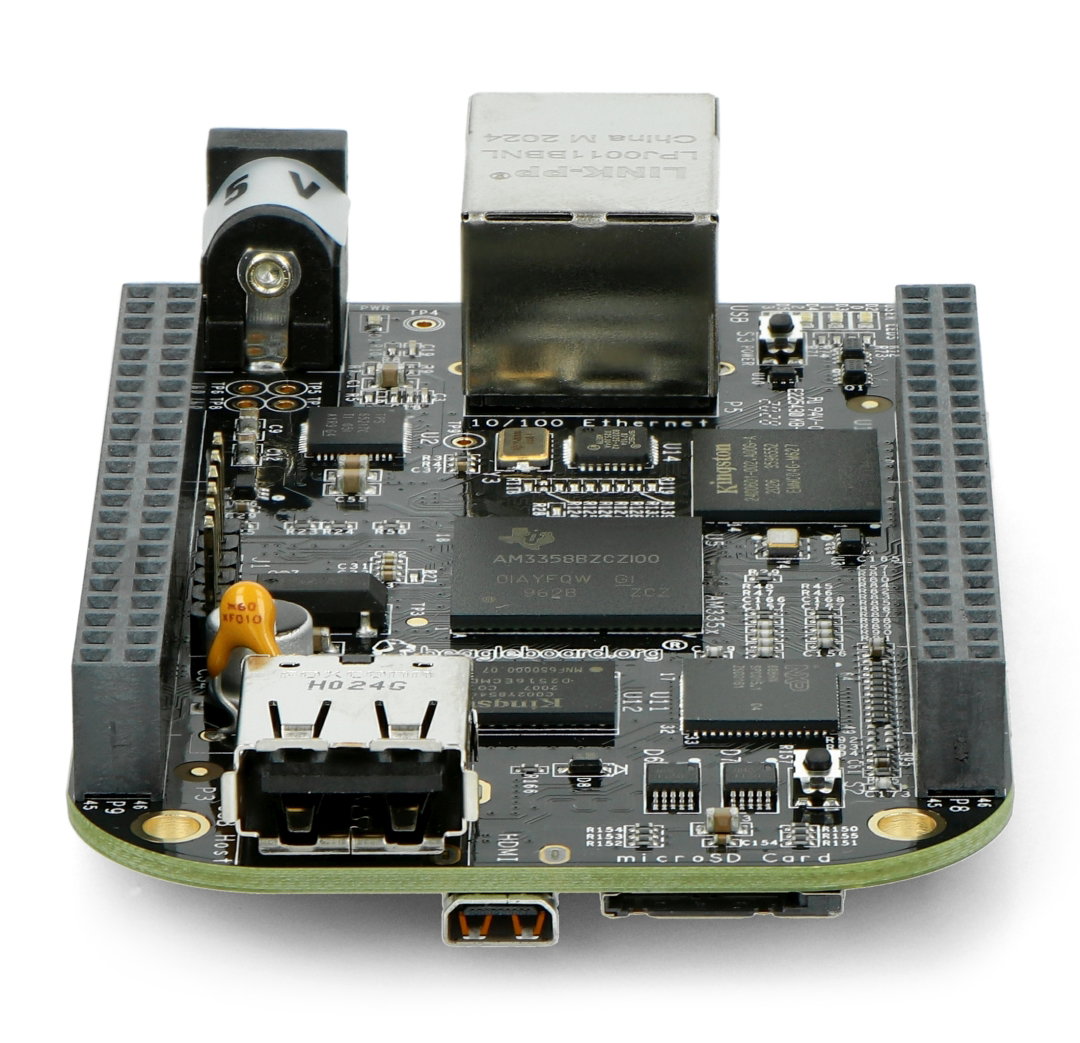

Product description: BeagleBone Black
The Beaglebone Black minicomputer is based on the Sitara AM3358 ARM Cortex-A8 processor clocked at 1 GHz. It is equipped with 512 MB of RAM and 16 GB of built-in eMMC memory. It features a 3D graphics accelerator, two 32-bit PRU microcontrollers, and interfaces such as USB, HDMI, Ethernet, and I/O pins. We also offer microSD memory cards, power supplies , HDMI cables , and USB devices compatible with the BeagleBone Black.

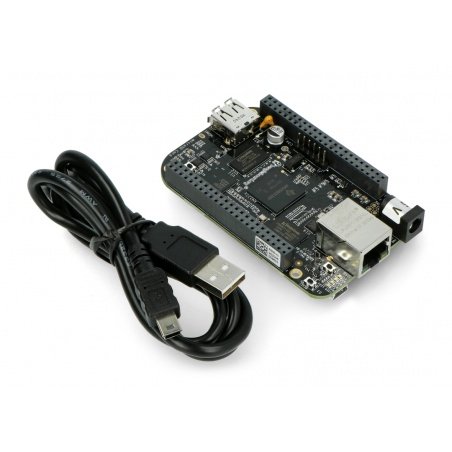

The set includes
- BeagleBone Black Tile
- USB cable
BeagleBone Black minicomputer.
BeagleBone Black.BeagleBone Black minicomputer specifications
- Processor: TI Sitara AM335x 1 GHz ARM® Cortex-A8
- RAM: 512MB DDR3L 400MHz
- Flash Memory: Built-in 16 GB
- MicroSD memory card slot
- Built-in 3D graphics accelerator
- NEON floating-point accelerator (hardware floating-point unit)
- 2 x PRU (Programmable Real-Time Unit) microcontroller
- Video resolution: 1280x1024, 1024x768, 1280x720, 1440x900
- Power supply:
- miniUSB 5 V (e.g. Extreme 5 V power supply )
- external DC 5 V power supply (e.g. 5 V / 2.5 A switching power supply )
- 5 V goldpin pins
- Communication interfaces:
- USB - power and debugging
- USB for any purpose
- Ethernet socket
- Video output: micro HDMI
- Audio output: via micro HDMI
- 2 x 46 I/O pins
- Supported operating systems:
- Ångström Linux
- Android
- Ubuntu
- and many others
